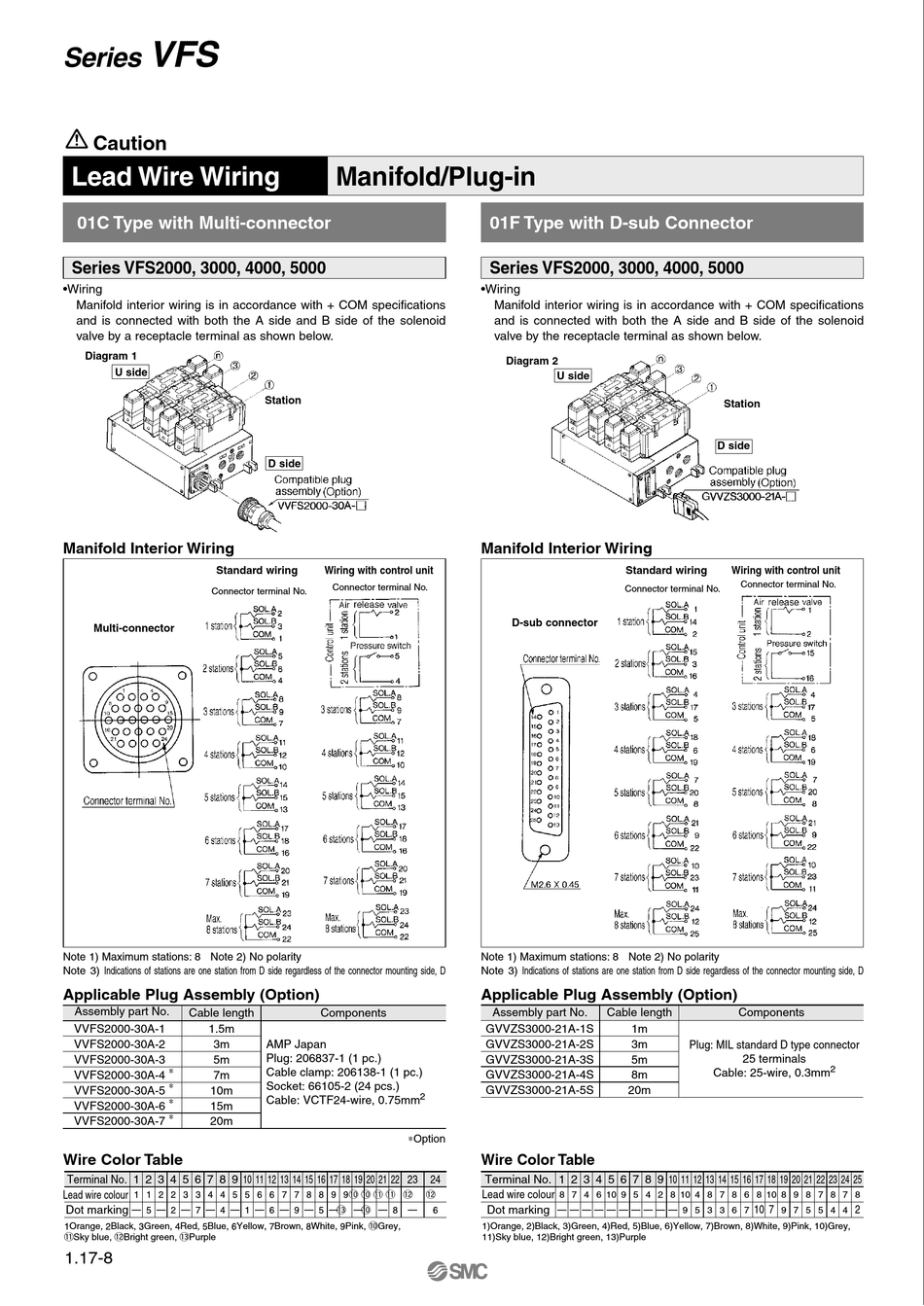

Caution
Lead Wire Wiring
01C Type with Multi-connector
Series VFS2000, 3000, 4000, 5000
•Wiring
Manifold interior wiring is in accordance with + COM specifications
and is connected with both the A side and B side of the solenoid
valve by a receptacle terminal as shown below.
Diagram 1
U side
Manifold Interior Wiring
Standard wiring
Connector terminal No.
Multi-connector
Note 1) Maximum stations: 8 Note 2) No polarity
Note 3) Indications of stations are one station from D side regardless of the connector mounting side, D
Applicable Plug Assembly (Option)
Assembly part No.
Cable length
VVFS2000-30A-1 1.5m
VVFS2000-30A-2 3m
VVFS2000-30A-3 5m
∗
VVFS2000-30A-4 7m
∗
VVFS2000-30A-5 10m
∗
VVFS2000-30A-6 15m
∗
VVFS2000-30A-7 20m
Wire Color Table
Terminal No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Lead wire colour
— — — — —
Dot marking
Orange, Black, Green, Red, Blue, Yellow, Brown, White, Pink, !0 G rey,
!1 S ky blue, !2 B right green, !3 P urple
1.17-8
Manifold/Plug-in
Station
D side
Wiring with control unit
Connector terminal No.
Components
AMP Japan
Plug: 206837-1 (1 pc.)
Cable clamp: 206138-1 (1 pc.)
Socket: 66105-2 (24 pcs.)
2
Cable: VCTF24-wire, 0.75mm
∗Option
23
!0 !0 !1 !1 !2
— — — — — — —
!3 !0
01F Type with D-sub Connector
Series VFS2000, 3000, 4000, 5000
•Wiring
Manifold interior wiring is in accordance with + COM specifications
and is connected with both the A side and B side of the solenoid
valve by the receptacle terminal as shown below.
Diagram 2
U side
Manifold Interior Wiring
D-sub connector
Note 1) Maximum stations: 8 Note 2) No polarity
Note 3) Indications of stations are one station from D side regardless of the connector mounting side, D
Applicable Plug Assembly (Option)
Assembly part No.
GVVZS3000-21A-1S
GVVZS3000-21A-2S
GVVZS3000-21A-3S
GVVZS3000-21A-4S
GVVZS3000-21A-5S
Wire Color Table
24 Terminal No. 1 2 3
Lead wire colour
8 7 4 6 10 9 5
!2
— — —
Dot marking
1)Orange, 2)Black, 3)Green, 4)Red, 5)Blue, 6)Yellow, 7)Brown, 8)White, 9)Pink, 10)Grey,
11)Sky blue, 12)Bright green, 13)Purple
Station
D side
Standard wiring Wiring with control unit
Connector terminal No.
Connector terminal No.
Cable length Components
1m
3m
Plug: MIL standard D type connector
25 terminals
5m
Cable: 25-wire, 0.3mm
8m
20m
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
4 2 8 10 4 8 7 8 6 8 10 8
— — — — — — — 10 7
9 5 3 3 6 7
2
9 8 7 8 7 8
2
9 7 5 5 4 4
