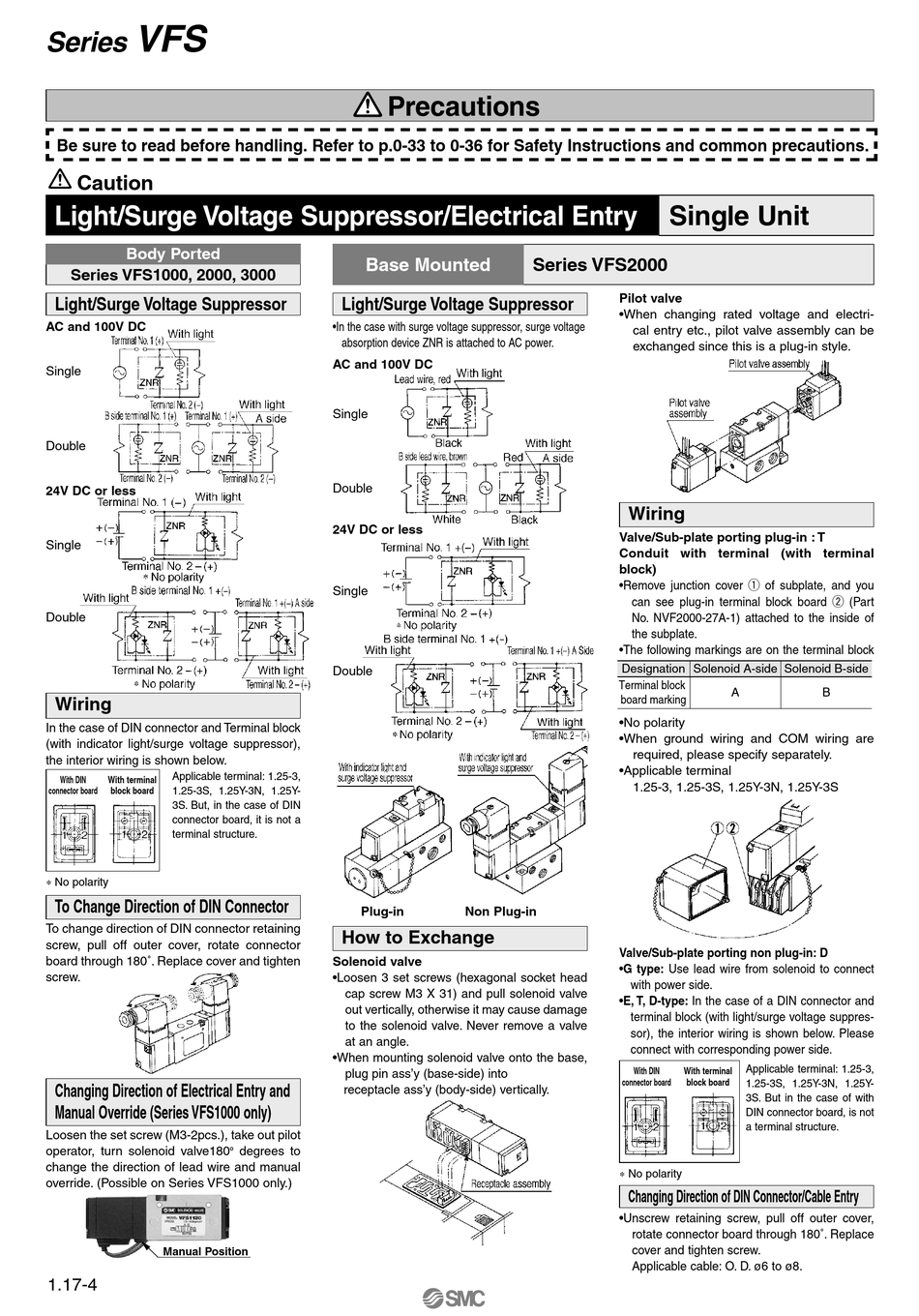

Single Unit - SMC Networks VFS Series Manual

VFS
Series
Be sure to read before handling. Refer to p.0-33 to 0-36 for Safety Instructions and common precautions.
Caution
Light/Surge Voltage Suppressor/Electrical Entry
Body Ported
Series VFS1000, 2000, 3000
Light/Surge Voltage Suppressor
AC and 100V DC
Single
Double
24V DC or less
Single
Double
Wiring
In the case of DIN connector and Terminal block
(with indicator light/surge voltage suppressor),
the interior wiring is shown below.
Applicable terminal: 1.25-3,
With DIN With terminal
1.25-3S, 1.25Y-3N, 1.25Y-
connector board block board
3S. But, in the case of DIN
connector board, it is not a
terminal structure.
∗ No polarity
To Change Direction of DIN Connector
To change direction of DIN connector retaining
screw, pull off outer cover, rotate connector
board through 180˚. Replace cover and tighten
screw.
Changing Direction of Electrical Entry and
Manual Override (Series VFS1000 only)
Loosen the set screw (M3-2pcs.), take out pilot
operator, turn solenoid valve180
change the direction of lead wire and manual
override. (Possible on Series VFS1000 only.)
Manual Position
1.17-4
Precautions
Base Mounted
Light/Surge Voltage Suppressor
•In the case with surge voltage suppressor, surge voltage
absorption device ZNR is attached to AC power.
AC and 100V DC
Single
Double
24V DC or less
Single
Double
Plug-in
How to Exchange
Solenoid valve
•Loosen 3 set screws (hexagonal socket head
cap screw M3 X 31) and pull solenoid valve
out vertically, otherwise it may cause damage
to the solenoid valve. Never remove a valve
at an angle.
•When mounting solenoid valve onto the base,
plug pin ass'y (base-side) into
receptacle ass'y (body-side) vertically.
degrees to
o
Series VFS2000
Pilot valve
•When changing rated voltage and electri-
cal entry etc., pilot valve assembly can be
exchanged since this is a plug-in style.
Wiring
Valve/Sub-plate porting plug-in : T
Conduit with terminal (with terminal
block)
•Remove junction cover q of subplate, and you
can see plug-in terminal block board w (Part
No. NVF2000-27A-1) attached to the inside of
the subplate.
•The following markings are on the terminal block
board. Connect with corresponding power side.
Designation
Terminal block
board marking
•No polarity
•When ground wiring and COM wiring are
required, please specify separately.
•Applicable terminal
1.25-3, 1.25-3S, 1.25Y-3N, 1.25Y-3S
Non Plug-in
Valve/Sub-plate porting non plug-in: D
•G type: Use lead wire from solenoid to connect
with power side.
•E, T, D-type: In the case of a DIN connector and
terminal block (with light/surge voltage suppres-
sor), the interior wiring is shown below. Please
connect with corresponding power side.
With DIN
connector board
∗ No polarity
Changing Direction of DIN Connector/Cable Entry
•Unscrew retaining screw, pull off outer cover,
rotate connector board through 180˚. Replace
cover and tighten screw.
Applicable cable: O. D. ø6 to ø8.

Single Unit

Solenoid A-side Solenoid B-side
A B
Applicable terminal: 1.25-3,
With terminal
block board
1.25-3S, 1.25Y-3N, 1.25Y-
3S. But in the case of with
DIN connector board, is not
a terminal structure.
