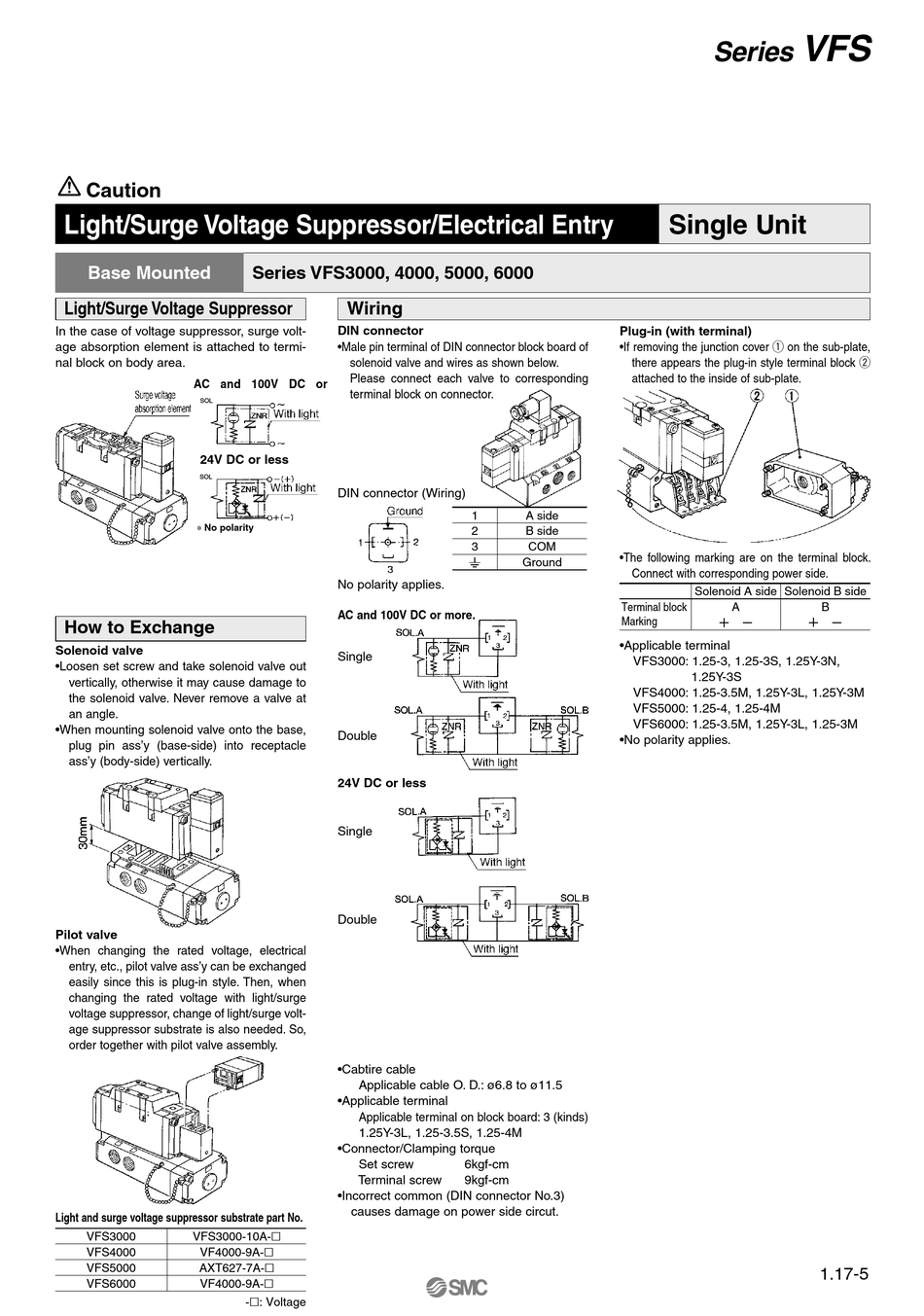

SMC Networks VFS Series Manual page 5

Caution
Light/Surge Voltage Suppressor/Electrical Entry
Base Mounted
Light/Surge Voltage Suppressor
In the case of voltage suppressor, surge volt-
age absorption element is attached to termi-
nal block on body area.
AC and 100V DC or
SOL
24V DC or less
SOL
∗ No polarity
How to Exchange
Solenoid valve
•Loosen set screw and take solenoid valve out
vertically, otherwise it may cause damage to
the solenoid valve. Never remove a valve at
an angle.
•When mounting solenoid valve onto the base,
plug pin ass'y (base-side) into receptacle
ass'y (body-side) vertically.
Pilot valve
•When changing the rated voltage, electrical
entry, etc., pilot valve ass'y can be exchanged
easily since this is plug-in style. Then, when
changing the rated voltage with light/surge
voltage suppressor, change of light/surge volt-
age suppressor substrate is also needed. So,
order together with pilot valve assembly.
Light and surge voltage suppressor substrate part No.
VFS3000 VFS3000-10A-
VFS4000 VF4000-9A-
VFS5000 AXT627-7A-
VFS6000 VF4000-9A-
Series VFS3000, 4000, 5000, 6000
Wiring
DIN connector
•Male pin terminal of DIN connector block board of
solenoid valve and wires as shown below.
Please connect each valve to corresponding
terminal block on connector.
DIN connector (Wiring)
No polarity applies.
AC and 100V DC or more.
Single
Double
24V DC or less
Single
Double
•Cabtire cable
Applicable cable O. D.: ø6.8 to ø11.5
•Applicable terminal
Applicable terminal on block board: 3 (kinds)
1.25Y-3L, 1.25-3.5S, 1.25-4M
•Connector/Clamping torque
Set screw
Terminal screw
•Incorrect common (DIN connector No.3)
causes damage on power side circut.
-: Voltage
Plug-in (with terminal)
•If removing the junction cover q on the sub-plate,
there appears the plug-in style terminal block w
attached to the inside of sub-plate.
1 A side
2 B side
3 COM
•The following marking are on the terminal block.
Ground
Connect with corresponding power side.
Terminal block
Marking
•Applicable terminal
VFS3000: 1.25-3, 1.25-3S, 1.25Y-3N,
VFS4000: 1.25-3.5M, 1.25Y-3L, 1.25Y-3M
VFS5000: 1.25-4, 1.25-4M
VFS6000: 1.25-3.5M, 1.25Y-3L, 1.25-3M
•No polarity applies.
6kgf-cm
9kgf-cm
VFS
Series
Single Unit
Solenoid A side Solenoid B side
A B
1.25Y-3S
1.17-5
