DigiDesign Mbox 2 Getting Started page 52

Output Path
selector
Pan indicator
Record Enable
button
Solo button
Volume fader
Voice selector
Volume indicator
Color bar

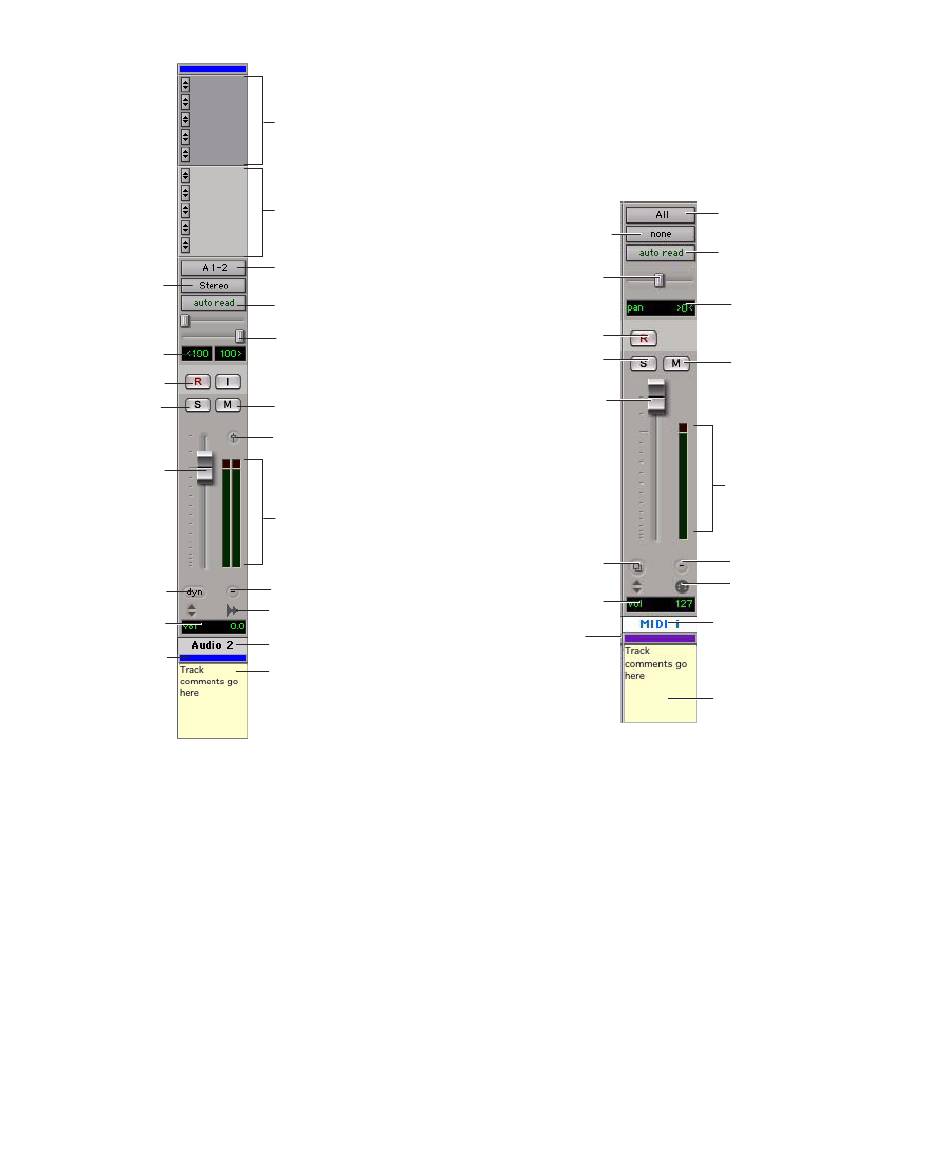

Figure 8. Stereo audio track in the Mix window
46 Mbox 2 Getting Started Guide
Inserts (up to 5)
Sends (up to 10)
Input Path selector
Automation mode
selector
Pan sliders
Mute button
Output window
button
Level meter
Group ID
Track Type indicator
Track name
Track comment area
MIDI Tracks
MIDI tracks provide volume, solo, and mute, in
addition to MIDI input, output, channel, and
program (patch) controls. Figure 9 shows the
controls found in MIDI tracks.
MIDI Output selector
Pan slider
Record Enable
button
Solo button
Volume
fader
Patch Select
Volume indicator
Color bar
Figure 9. MIDI track in the Mix window
MIDI Input selector
Automation Mode
selector
Pan indicator
Mute button
MIDI Velocity meter
Group ID
Track Type indicator
Track name
Track comment area
