Identification; Specifications - Textron Greenlee Gator EK12IDL Operation Manual

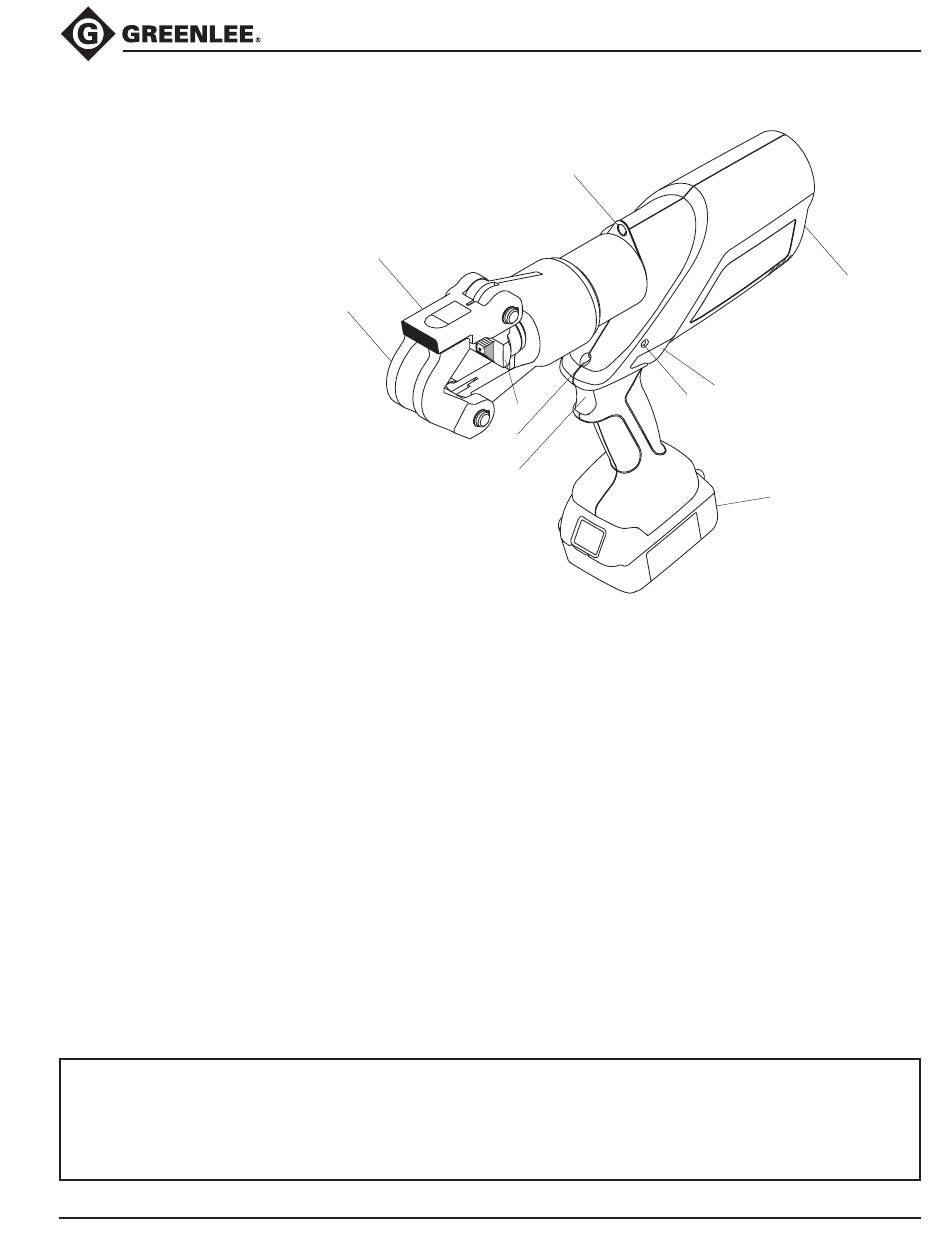

Identification

1. LED Work Light (white)
2. Indenter
3. Head
4. Latch (for opening head)
5. Lanyard Ring
6. Housing
7. Retract Button
8. LED Indicator (red)
9. Battery
10. Trigger

Specifications

Crimping Tool
Length ............................................................................................16.5" (419.1 mm)
Width ................................................................................................2.87" (72.9 mm)
Height (with battery) .......................................................................14.5" (368.3 mm)
Weight ...................................................................................................15 lb (6.8 kg)
Crimping Force ................................................................................ 12 tons (106 kN)
Hydraulic Oil ...............................................52057878 biodegradable hydraulic fluid
Recommended Operating Temperature Range ..............5 °F to 122 °F (–15 °C to 50 °C)
Crimping Capacities
Crimping Range
Aluminum ............................................................................ 6 AWG to 1000 kcmil
Copper ................................................................................ 4 AWG to 1000 kcmil
Battery Charger .............................................................Read the instructions supplied
52047087 120 VAC corded adapter
52047088 230 VAC corded adapter
52049189 18 V, 3 Ah lithium-ion battery
52049201 120 VAC, 18 V charger
Greenlee / A Textron Company
EK12IDL Battery-powered, Dieless Crimping Tool
4
3
1
10
52049202
52049204
52054992
50122746
5
5
8
2
with the battery charger
230 VAC, 18 V charger
12 VDC, 18 V charger
Li (18 V) to NiCd, NiMH (12 V) charger adapter
Carrying strap
