INSTRUCTION MANUAL
Serial Number
GATOR
EK1550FTLU
®
Battery-powered,

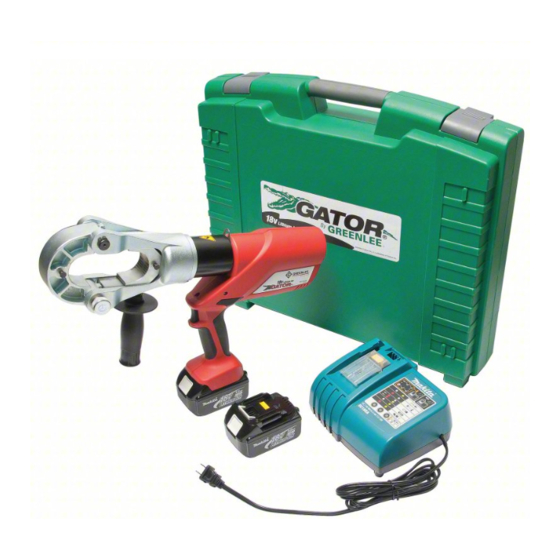

15-ton Crimping Tool
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52062870 REV 2
© 2014 Greenlee Textron Inc.
3/14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Textron GREENLEE GATOR EK1550FTLU
Summary of Contents for Textron GREENLEE GATOR EK1550FTLU
- Page 1 GATOR EK1550FTLU ® Battery-powered, 15-ton Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52062870 REV 2 © 2014 Greenlee Textron Inc. 3/14...
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Textron Innovations Inc. -
Page 3: Important Safety Information
Failure to observe this warning could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 • Use this tool for the manufacturer’s intended purpose only. Failure to observe these precautions may result in injury or property damage. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Read the instructions supplied with the battery charger Note: Do not use non-butting dies (crimps controlled by tonnage) in this tool, as damage could occur to connectors and/or conductors. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Adapter Kits
5. Repeat Step 4 with other “U” die. Die Retainer Button (UA15T) 12-ton “U” Die Adapter Set UA15T (52060610) (contains two die adapters) Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 7: Setup
Failure to observe these warnings the red LED, work light, and an audible beep will pulse could result in severe injury or death. until after the trigger is released. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 8 For a double crimp, position the connector so two crimps will be evenly spaced between the connec- tor marks. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 9: Die Selection
Aluminum VACL BLUA YA-ATN 2ACL/2ACN 60230 to column instead of the 750 kcmil: Lugs 60278 number provided with 3 crimps the connector. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 11: Troubleshooting
Tool loses oil. Damaged internal seal. Return tool to a Greenlee Utility Authorized Service Center. Note: For Warranty Service or Repair, contact Greenlee customer service at 800-435-0786. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 12 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
