OPERATION MANUAL
Serial Number

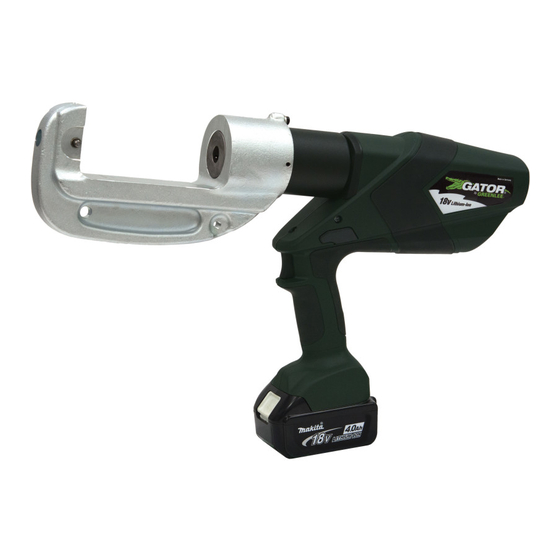

EK1550LT and EK1550LX
GATOR
Battery-powered
®
Crimping Tools
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52080020 REV 1
© 2016 Greenlee Textron Inc.
10/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Textron Greenlee EK1550LT
Summary of Contents for Textron Greenlee EK1550LT
- Page 1 EK1550LT and EK1550LX GATOR Battery-powered ® Crimping Tools Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080020 REV 1 © 2016 Greenlee Textron Inc. 10/16...
-
Page 2: Table Of Contents
For recycling information, go to www.greenlee.com. All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products. GATOR is a registered trademark of Textron Innovations Inc. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe these precautions may result in injury or property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
750 kcmil aluminum terminals * Do not use non-butting dies (crimps controlled by tonnage) in this tool, as damage could occur to connectors and/or conductors. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Adapter Kits
DIE HOLDER ASSEMBLIES TOP DIE HOLDER RETAINING SPRING PLUNGER (6) RETAINING SPRING PLUNGER (6) PH2 Die Holder Kit 48824 contains: (1) 48823 and (2) 48825 Die Holders Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 48788 Die Holder Kit contains: 48820 Die Holder Kit contains (1) each: (2) 48789 Die Holders 48822 Upper Die Holder and 48821 Lower Die Holder Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Setup
RETAINING SPRING temperature. PLUNGERS (6) DIE RETAINING MECHANISMS TOP DIE HOLDER RETAINING SPRING PLUNGER (6) 12-Ton “U” Die Holder Kit 48802 contains: (2) 48803 Die Holders Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Operation
Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 10 Failure to observe these warnings could result in severe injury or death. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 11: Die Selection
400 to Aluminum VACL BLUA YA-ATN 2ACL/2ACN 60230 to number provided with 750 kcmil: Lugs ALNS/ALNN/ALND 60278 the connector. 3 crimps Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 12: Lcd Screen
® only for the T version of this tool. Mobile unit not found Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 13: Maintenance
Failure to observe these warnings could result in severe injury or death. Relief valve adjustments must be done by an authorized service center. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 14: Troubleshooting
Pull trigger and hold retract button simultaneously to warm oil. Store tool in warm area. Tool loses oil. Damaged seal. Contact Greenlee customer service at 800-435-0786 for warranty service or repair. Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 15 EK1550LT and EK1550LX Battery-powered Crimping Tools Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 16 4455 Boeing Drive • Rockford, IL 61109-2988 • USA • 815-397-7070 USA Tel: 800-435-0786 Canada Tel: 800-435-0786 International Tel: +1-815-397-7070 An ISO 9001 Company • Fax: 800-451-2632 Fax: 800-524-2853 Fax: +1-815-397-9247 Greenlee Textron Inc. is a subsidiary of Textron Inc. www.greenlee.com...
