ANNEXE F: GPIO CONNECTORS

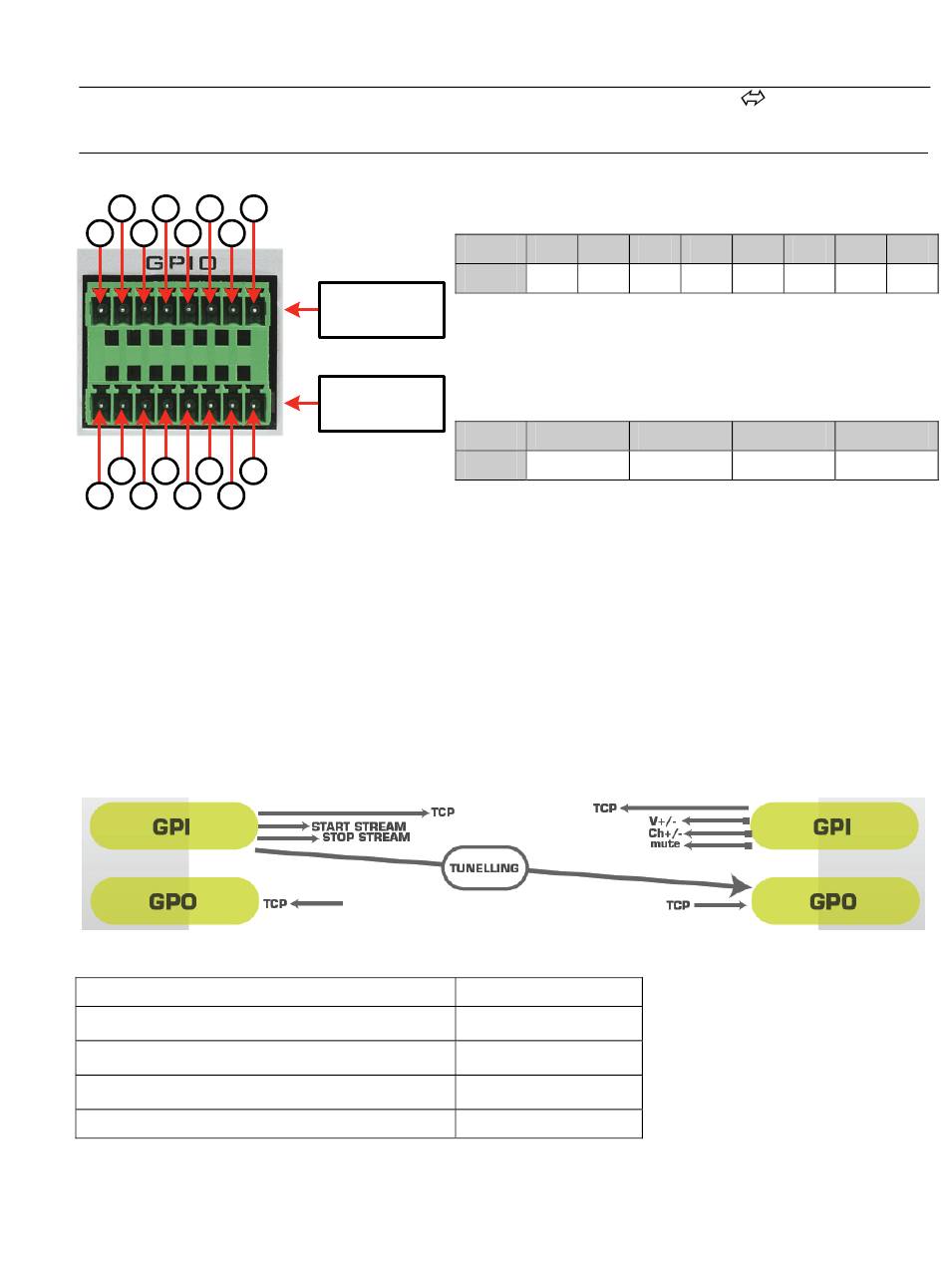

PYKO-out features four TTL 5 V compatible GPIs and four relay GPOs. The counterparts are provided.
7
5
3
1
8
6
4
2
15
13
11
9
16
14
12
10
General Purpose Inputs (GPIs)
The state of a GPI can be either "1" or "0". It is read at "0" as soon as it is connected to the ground (GND).
Otherwise it is read "1".
Note:
Each GPI can receive an external command contact.
General Purpose Outputs (GPOs)
The PYKO-out GPOs are relay outputs. They feature two pins each and are all configured the same way. Pins
9 & 10 belong to GPO # 1, 11 & 12 to GPO # 2, 13 & 14 to GPO # 3, and 15 & 16 to GPO #°4.
If written at "1", the GPO closes the linked relay. If written at "0", the GPO opens the linked relay.
GPIOs can be used for tunneling from one PYKO towards another (GPIn-> GPOn).
GPO relay specifications
Maximum power switching capability
Maximum switching current
Maximum carrying current
Maximum switching voltage
Typical life expectancy (switching max power)
GPI pinout
Pin
IN4
Signal
GPI
GPO
GPO pinout
Pin
Signal
10 W
1 A
DC
1 A
DC
125 V
/60 V
AC
6
10
operations
Professional IP
8
7
6
5
GND
IN3
GND
16, 15
14, 13
OUT4
OUT3
DC
PYKO-out
Audio Endpoint
4
3
2
1
IN2
GND
IN1
GND
12, 11
10, 9
OUT2
OUT1
