APPENDIX C: OUTPUT LEVEL SELECTION

These settings shall be executed by qualified personnel only!
Tools required:
•
a #1 Pozidriv screwdriver
•
an ESD-preventive wrist strap
Electrostatic discharge (ESD) can damage several components on the board. To avoid such damage in
handling the board, take the following precautions:
Bring the device and everything that contacts it to ground potential by providing a conductive surface and
discharge paths. As a minimum, observe these precautions:
•
Disconnect all power and signal sources.
•
Place the device on a grounded conductive work surface.
•
Ground yourself via a grounding wrist strap or by holding a grounded object.
•
Ground any tools that will contact the device.
•
Unscrew the two flat-head Pozidriv screws
counterclockwise and open the cabinet.

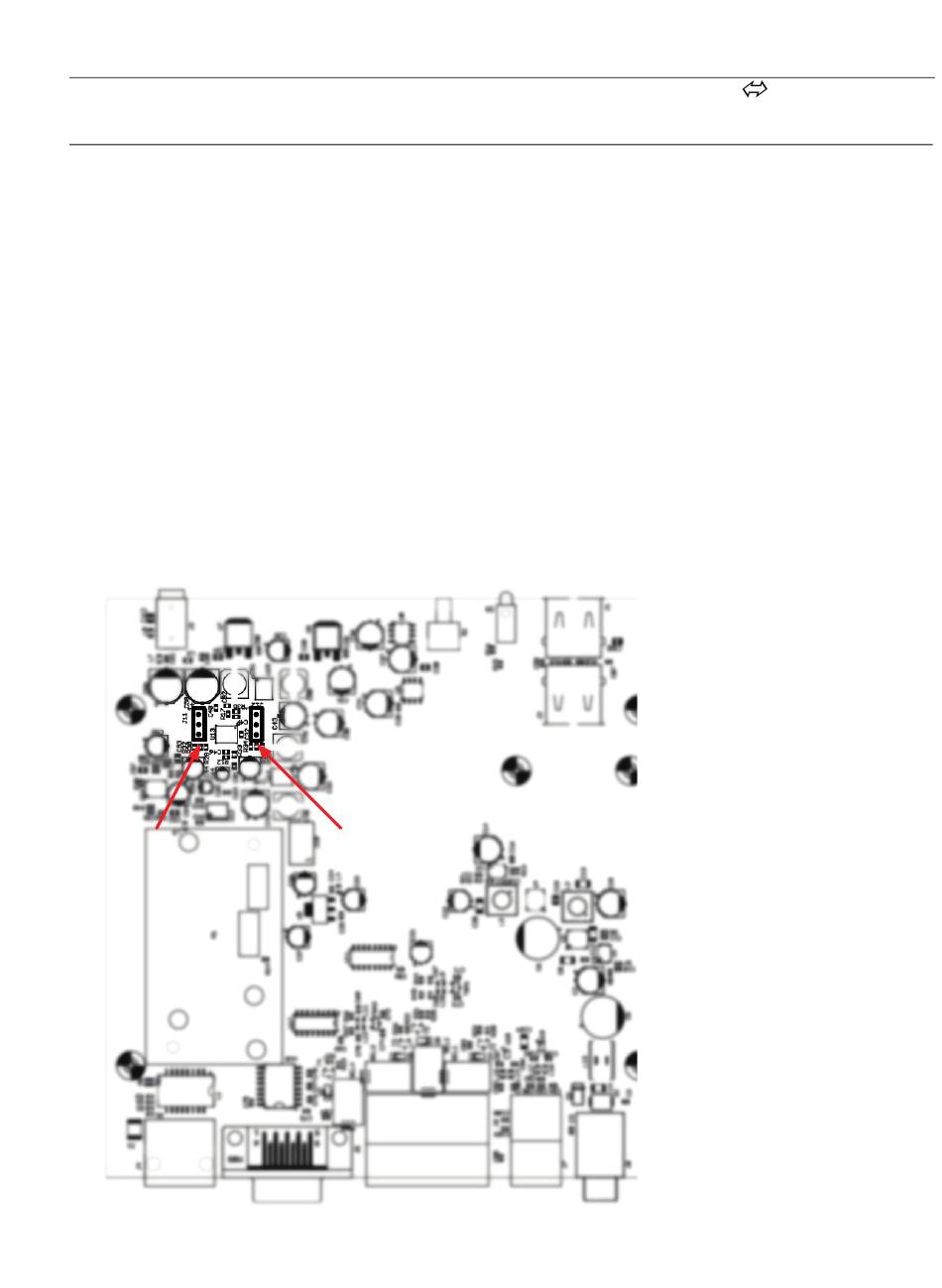

Jumper position on motherboard

Front
panel
J11
Back panel
J12
Professional IP
PYKO-out
Audio Endpoint
