Nominal output level

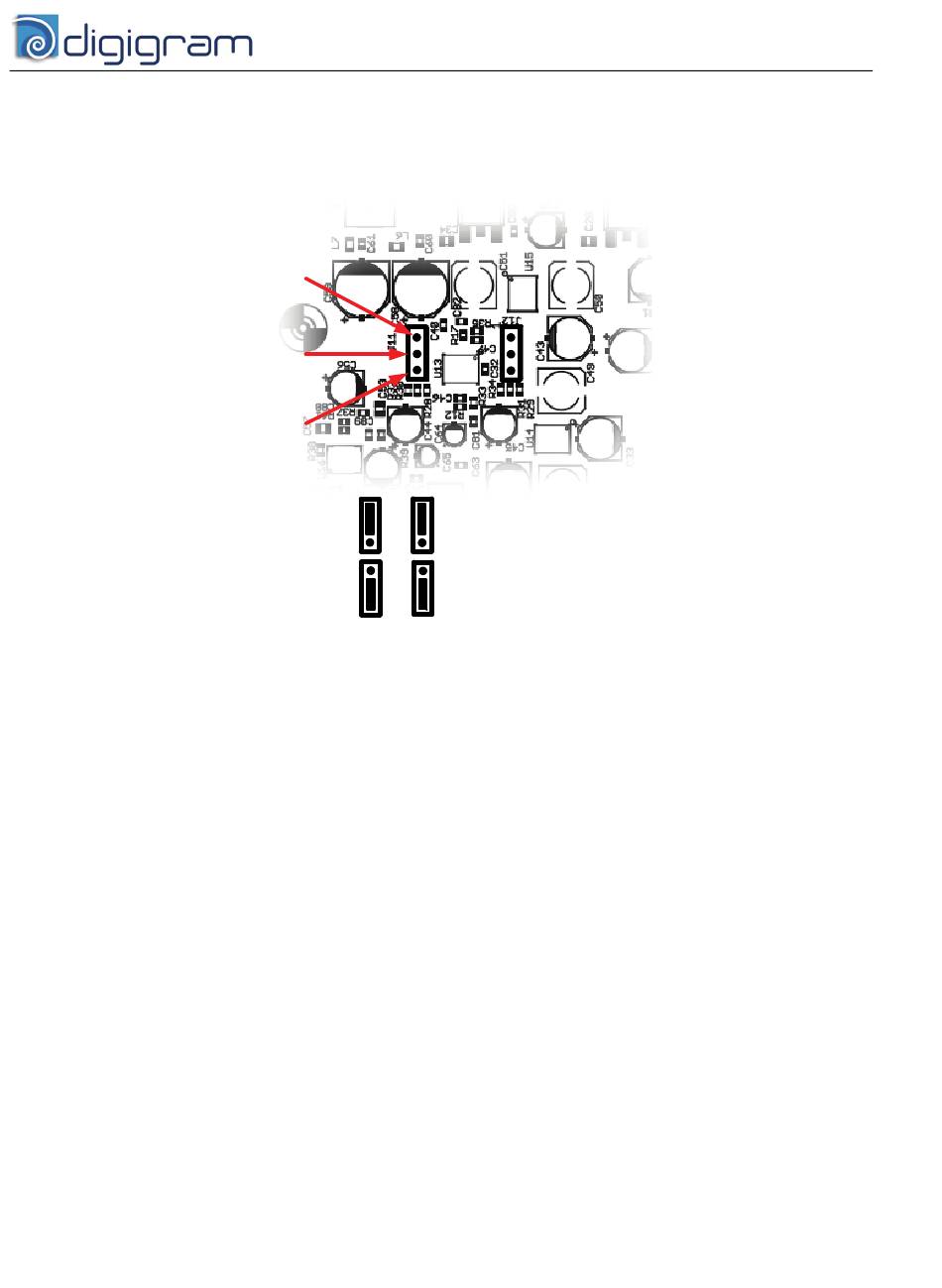

Jumper positionning
This setting defines whether the nominal level of the analog signals is either +18 dBu or +4 dBu
("Professional").
Default factory setting is +18 dBu for all outputs.
The settings act upon the nominal output level. Having located the pair to modify in the overview (previous
page), set the jumpers according to the above illustrations to match the requirements of your system.
Pin 1
Pin 2
Pin 3
+4 dBu
jumper on pins 1 & 2
+18 dBu
jumper on pins 2 & 3
18
