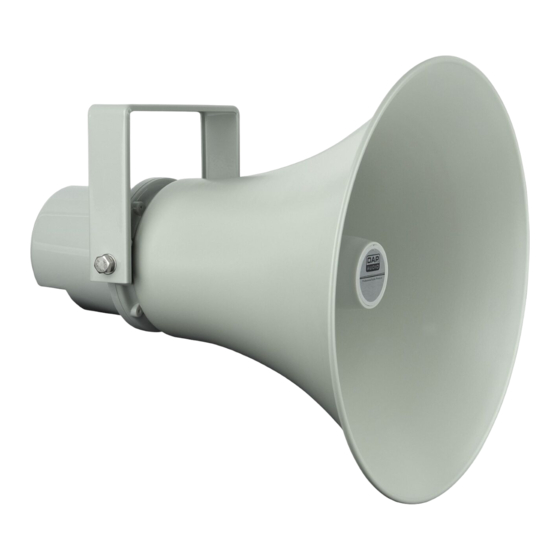

- Page 1 MANUAL ENGLISH HS-50R Ordercode: D6543 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 HS-50R Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Ordercode: D6543...
- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio HS-50R • User manual •...
- Page 4 Any other operation may lead to dangers like short-circuit, burns, electric shock, etc. You endanger your own safety and the safety of others! Improper installation can cause serious injuries and damage of property ! The HS-50R can be mounted to any kind of truss with a clamp. Ordercode: D6543...
- Page 5 HS-50R Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
- Page 6 HS-50R Description of the device Features Power taps: 100V: 6,25/12,5/25/50W • 70V: 3,125/6,25/12,5/25/50W Line voltage: 70/100V • Impedance: 16 Ω • Frequency response: 380-6,5 kHz • Sensitivity: 109 dB • Housing: Aluminum • Color: Gray • IP rating: IP66 •...
- Page 7 HS-50R Product Specification Power taps: 100V: 6,25/12,5/25/50W 70V: 3,125/6,25/12,5/25/50W Line voltage: 70/100V Impedance: 16 Ω Frequency response: 380-6,5 kHz Sensitivity: 109 dB Housing: Aluminum Color: Gray IP rating: IP66 Dimensions: 340 x 325 x 325 mm (LxWxH) Weight: 2,6 kg Design and product specifications are subject to change without prior notice.
- Page 8 ©2015 DAP Audio...
