Summary of Contents for DAPAudio D-100
- Page 1 MANUAL ENGLISH D-100/H-100 Ordercode: D6547D/D6547H Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
D-100/H-100 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Installation ................................... 5 Assembly ..................................5 Connecting To a Power Supply ..........................6 Troubleshooting ................................. -
Page 3: Warning
D-100/H-100 Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Operating Determinations
D-100/H-100 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorized modification to the system. Never remove warning or informative labels from the unit. • Never leave any cables lying around. -
Page 5: Return Procedure
D-100/H-100 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Description Of The Device

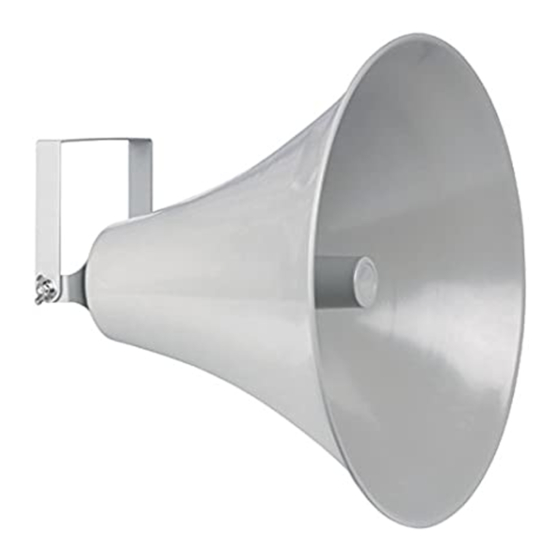

D-100/H-100 Description of the device Features Combine the D-100 (D6547D) and the H-100 (D6547H) to create a powerful horn loudspeaker. Driver (D6547D) • Input voltage: 100V AC, 50/60 Hz • Power consumption: 100W • Frequency response: 150~6 kHz • Sensitivity (1W/1M): 100 dB •... -
Page 7: Connecting To A Power Supply
D-100/H-100 Fig. 02 09) Ø6 x Ø20 x 1,5 mm washer 10) M5 x 14 mm hexagon head screw 11) Ø20,5 x Ø32,5 x 2,5 rubber washer 12) Driver (D6547D) Fig. 03 Connecting To a Power Supply 01) Connect the power supply to the speaker. Make sure that you connect the cables to the appropriate connectors. -
Page 8: Troubleshooting
D-100/H-100 Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation. -
Page 9: Dimensions
D-100/H-100 Dimensions Ordercode: D6547D/D6547H... -
Page 10: Notes
D-100/H-100 Notes Ordercode: D6547D/D6547H... - Page 11 D-100/H-100 Ordercode: D6547D/D6547H...
- Page 12 ©2015 DAP Audio...
