User's Guide
TMAG5124EVM

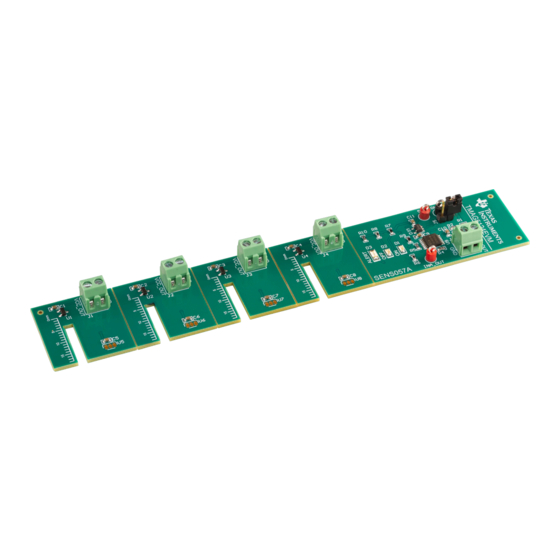

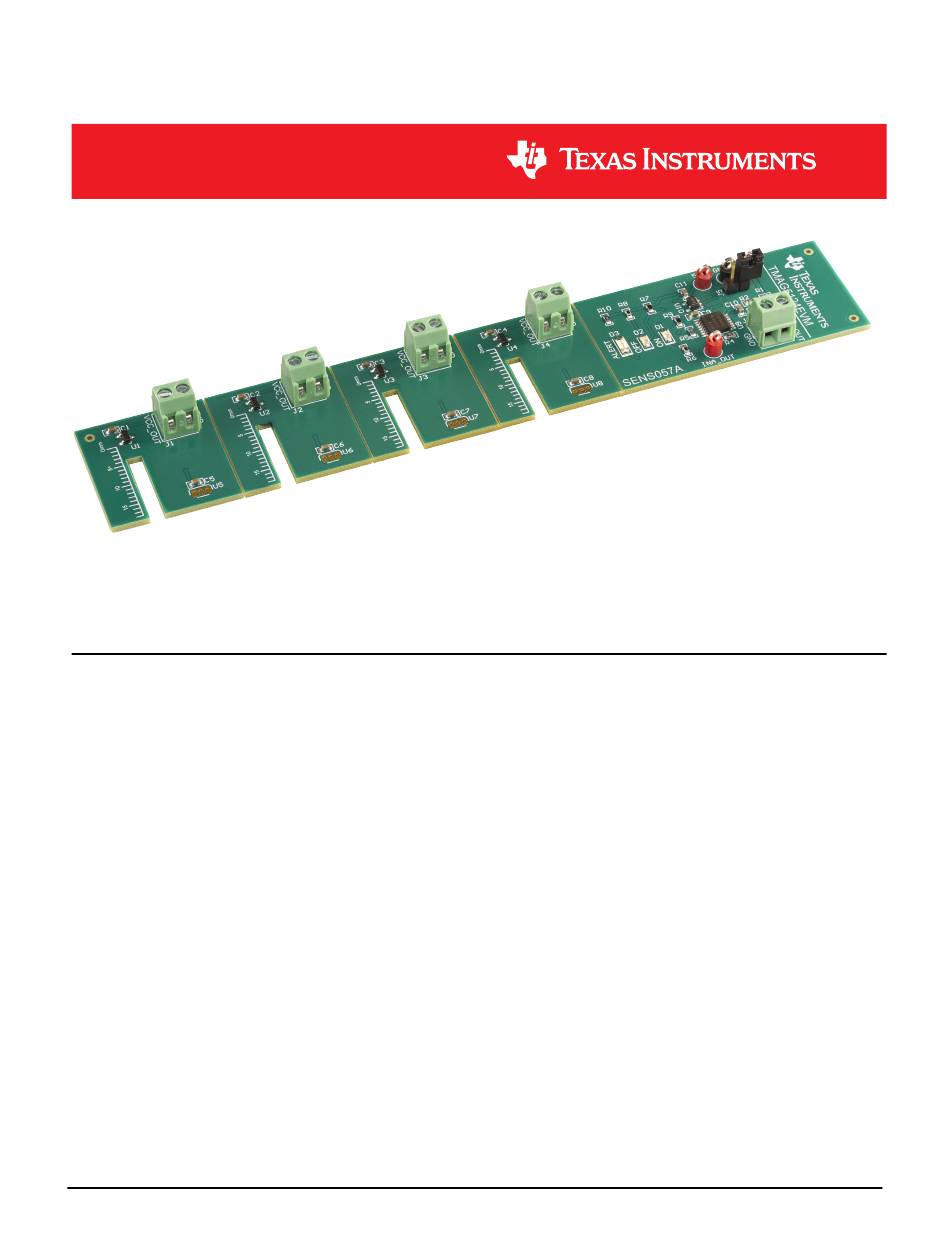

This user's guide describes the characteristics, operation, and use of the TMAG5124 2-wire evaluation module
(EVM). This EVM is designed to evaluate the performance of the TMAG5124 over a separation of distance using
current as the signal of interest. This document includes a schematic, printed-circuit board (PCB) layouts, and a
complete bill of materials (BOM).
SLYU055A – JANUARY 2020 – REVISED NOVEMBER 2020
Submit Document Feedback
ABSTRACT
Copyright © 2020 Texas Instruments Incorporated
TMAG5124EVM
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments TMAG5124EVM
Summary of Contents for Texas Instruments TMAG5124EVM
- Page 1 This document includes a schematic, printed-circuit board (PCB) layouts, and a complete bill of materials (BOM). SLYU055A – JANUARY 2020 – REVISED NOVEMBER 2020 TMAG5124EVM Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 2: Table Of Contents
Table of Contents www.ti.com Table of Contents Trademarks....................................2 Overview....................................3 2.1 TMAG5124EVM Kit Contents............................2.2 Related Documentation From Texas Instruments......................3 Hardware....................................3.1 Features..................................... 4 Quick Start....................................4 4.1 Option 1: Single 5-V Supply............................... 4.2 Option 2: Separate VCC and 5-V Supply...........................4 4.3 Measurements................................... -
Page 3: Overview
The following document provides information regarding TI's integrated circuits used in the assembly of the TMAG5124EVM. This user's guide is available from the TI website under literature number SLYU055. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document. -
Page 4: Hardware
4.2 Option 2: Separate VCC and 5-V Supply Follow the procedure listed below to set up and use the TMAG5124EVM with dual supplies, which allows the full VCC range of the TMAG5124 to be tested: 1. Ensure that the shorting plug on J5 is removed. -
Page 5: Measurements
4.4 Standalone Measurements It is possible to set up and capture measurements with only a TMAG5124EVM coupon board. This allows testing of the full VCC range of the TMAG5124: 1. Connect an external DC supply voltage to the VCC connection point on the EVM, which sets the voltage to the desired level. - Page 6 Quick Start www.ti.com SENSE TMAG5124EVM SLYU055A – JANUARY 2020 – REVISED NOVEMBER 2020 Submit Document Feedback Copyright © 2020 Texas Instruments Incorporated...
-
Page 7: Circuitry
5.3 J5 J5 is a shorting plug between the 5-V input and VCC input. By shorting this plug, the TMAG5124EVM is powered from a single 5-V supply. If the user wants to evaluate VCC across the full range, ensure that this jumper is removed. -
Page 8: Schematic, Pcb Layout, And Bill Of Materials
6 Schematic, PCB Layout, and Bill of Materials Note Board layouts are not to scale. These figures are intended to show the board layout. The figures are not intended to be used for manufacturing TMAG5124EVM PCBs. 6.1 Schematic Figure 6-1... -
Page 9: Pcb Layout
Schematic, PCB Layout, and Bill of Materials 6.2 PCB Layout Figure 6-2 through Figure 6-5 show the PCB layout for the TMAG5124EVM. Figure 6-2. TMAG5124EVM Top Overlay Figure 6-3. TMAG5124EVM Top Layer Figure 6-4. TMAG5124EVM Bottom Layer Figure 6-5. TMAG5124EVM Bottom Overlay SLYU055A –... -
