KM312 - KM312P
9. KM312P CONNECTIONS
The KM312P internal wiring is designed to pick up audio power signal from pins 1+ / 1- (MF-HF) and
2+ / 2- (LF) of a NL4 connector. Since the unit is be-amped, two channels of a KA84 amplifer are

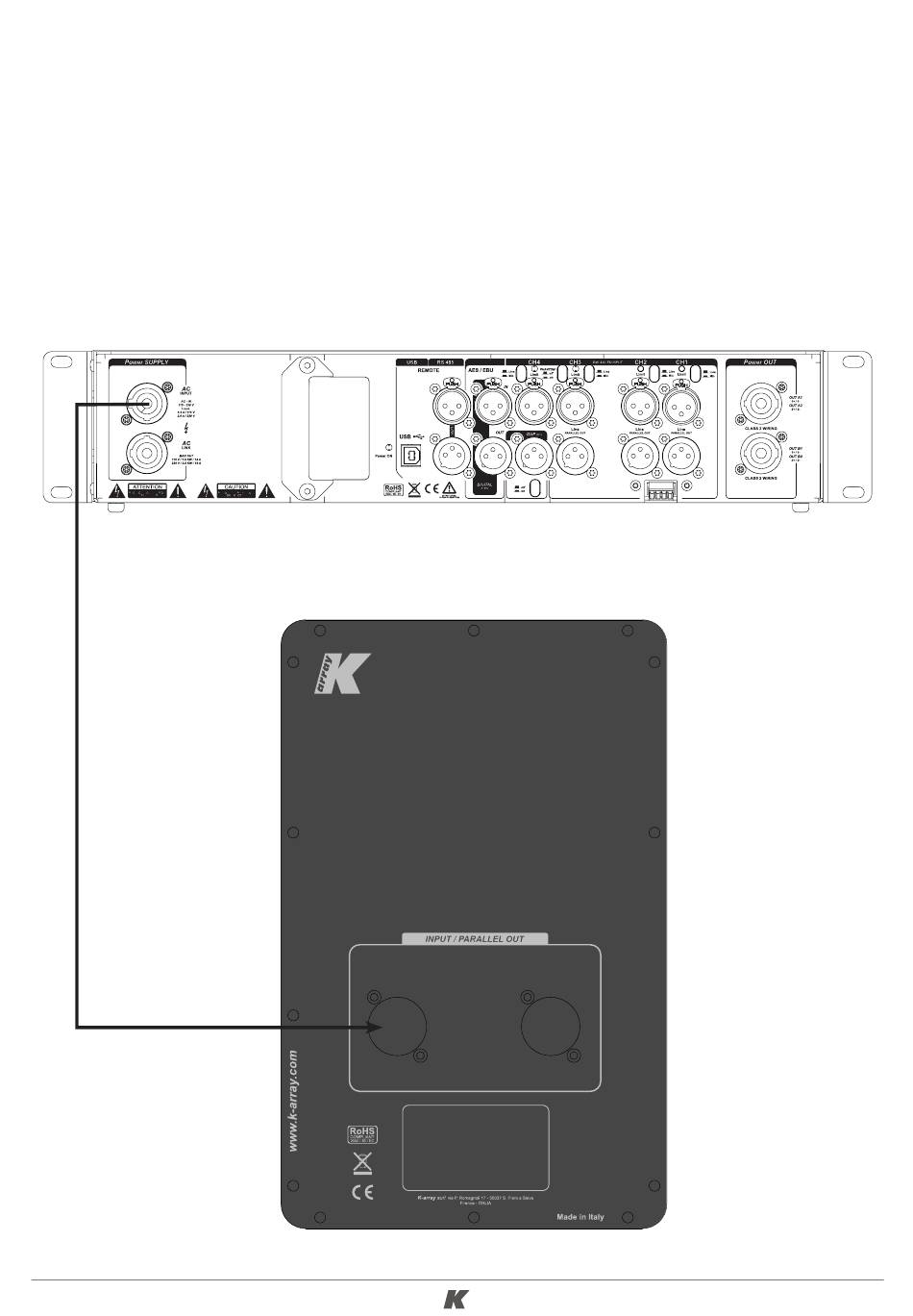

necessary to drive one unit. Use a four-pins Speakon cable to connect the Output A or B of the KA84
amplifier to the monitor, as shown below. On the amplifier, load the appropriate presets on ouput
channels A1 and A2 (or B1 and B2).
All pins are directly wired from one socket to the other, so the signal can pass through another passive
monitor without additional external cables.
4-pins Speakon Cable
1+/1- MF-HF
2+/2- LF
CH 5 - 6
. 1+ Positive MF-HF IN / Link OUT
. 1- Negative MF-HF IN / Link OUT
. 2+ Positive LF IN / Link OUT
. 2- Negative LF IN / Link OUT
Ver. 1.1
17
