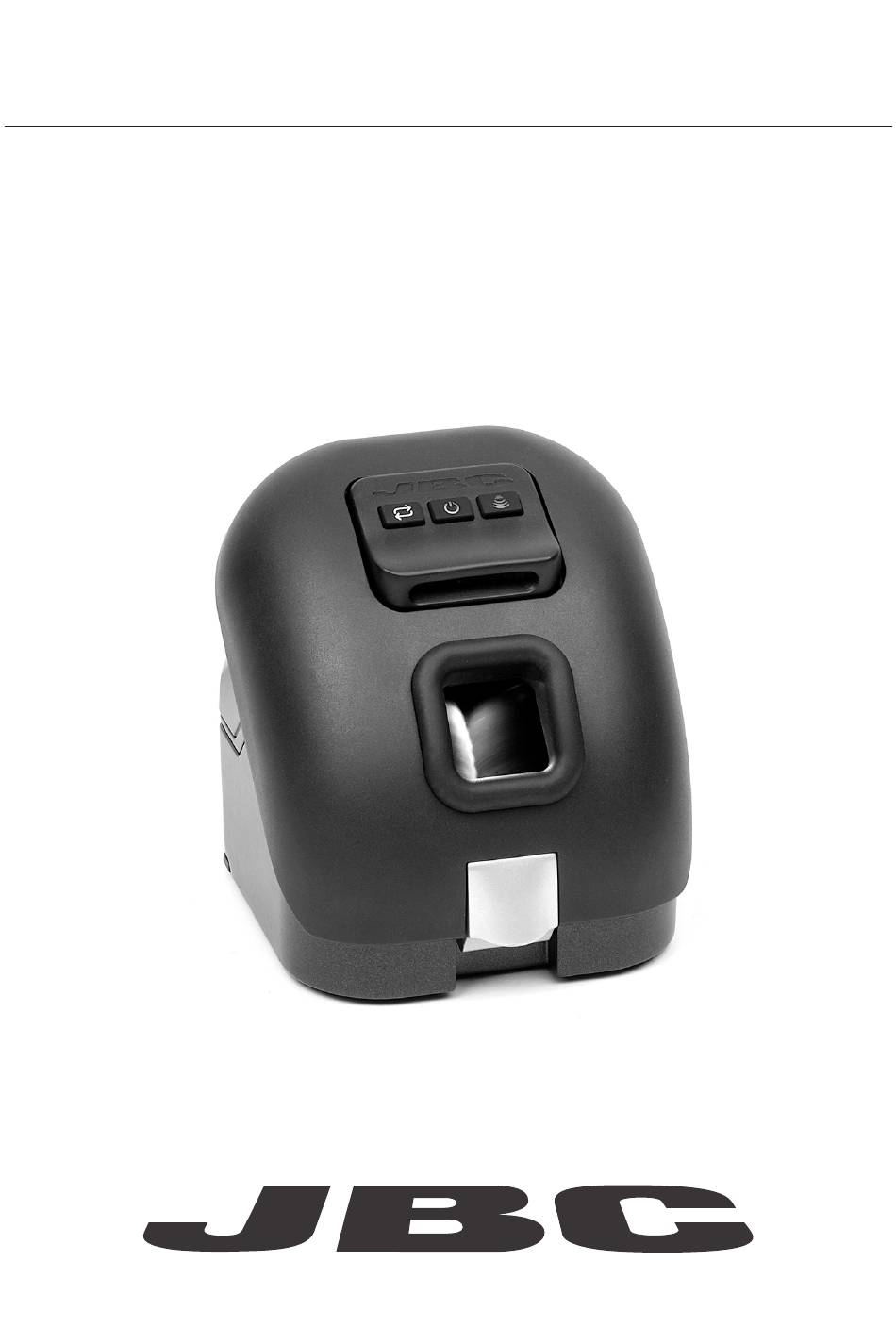

- Page 1 INSTRUCTION MANUAL Senior Tip Cleaner with Non-Metal Brushes CLUP www.jbctools.com...
-
Page 3: Table Of Contents
w w w.jbctools.com Contents 1. Packing List ..................4 2. Features ....................5 3. Operation ................... 6 4. Brush replacement ................7 5. Collection tray .................. 7 6. Brushes range ................... 8 7. Maintenance ..................9 8. USB Connector ................. 10 9. -
Page 4: Packing List
This manual corresponds to the following reference: CLMU-PB 1. Packing List The following items are included: Senior Tip Cleaner with Non-Metal Brushes HMP Non-Metal Brushes for CLU & CLR 1 unit 2 units Ref. CLMU-P2 (brushes already installed inside the cleaner) Manual AC Adapter 1 unit... -
Page 5: Features
w w w.jbctools.com 2. Features and Connections Switch panel Splashguard Sensors window Window Locking tab USB-B connector Feet for vertical Power cord ESD safe access socket connector... -
Page 6: Operation
If excessive pressure is applied with the tool against any of the brushes, the cleaner stops automatically in order to protect the motors. Putting the tool out of the sensor detection area automatically reactivates the cleaner. CLUP is automatically switched off if the splashguard is opened during operation. -
Page 7: Brush Replacement
w w w.jbctools.com 4. Brush Replacement Pull the locking tab to open the Pull the used up brushes out of the splashguard. cleaner by pressing its two opposite buttons. To replace the brushes just push them without pressing the buttons. 5. -
Page 8: Brushes Range
6. Brush Range Metal Brushes Blue Metal Brushes for CLU & CLR for CLU & CLR (Black core) (Blue core) Ref. CLMU-A8 Ref. CLMU-A7 Blue Non-metal Brushes Non-Metal Brushes for CLU & CLR for CLU & CLR (Blue core) (Black core) Ref. - Page 9 w w w.jbctools.com 7. Brush Range Metal Brushes Ref. CLMU-A8 CLMU-A7 Type Metal Metal Cleaning Intensive Intensive Max. time use 10 s 10 s Recommended 1-2 s 1-2 s time use Life cycle* Long Long Core** Black Blue Non-Metal Brushes Ref.
-
Page 10: Maintenance
- Maintain the brushes and the solder collection tray clean. - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should be performed only by a JBC authorized technical service. Sensor Window... -
Page 11: Usb Connector
Update the cleaner software via USB connection: USB AB Cable Updater JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your PC can handle by using the JBC Ma- nager. You can export data to another PC. any JBC station USB AB Cable... -
Page 12: Safety
11. Safety Its is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the appliance for any purpose other than tip cleaning. It is not a tool stand. - The AC Adapter power supply must be plugged into approved bases. - Do not leave the appliance unattended when it is running. -
Page 13: Specifications
w w w.jbctools.com 12. Specifications AC Adapter: Input: 100-240 V, 5/60 Hz Output: DC 24 V, 2 A Brush diameter: 50 mm Weight: 2,1 kg (4.63 lb) Dimensions: 128 x 131 x 137 mm Ambient Operating Temp: 10 to 40 ºC / 50 TO 104 ºF ESD safe connector Complies with CE standards. - Page 14 Notes...
- Page 15 w w w.jbctools.com Notes...
- Page 16 Warranty – JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. – Warranty does not cover product wear or misuse. – In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
