- Page 1 Leica LS10/LS15 Quick Guide Version 1.0 English...
- Page 2 LS10/LS15, Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual on the accompanying USB card before using the product. • This Quick Start Guide contains first use directions as well as initial, basic instruc- tions for setting up the product and operating it.
- Page 3 • FCC Part 15, 22 and 24 (applicable in US) Conformity to • Hereby, Leica Geosystems AG, declares that the product LS10/LS15 is in compli- national regula- ance with the essential requirements and other relevant provisions of Directive tions 1999/5/EC. The declaration of conformity can be consulted at http://www.leica- geosystems.com/ce.
-
Page 4: Instrument Components

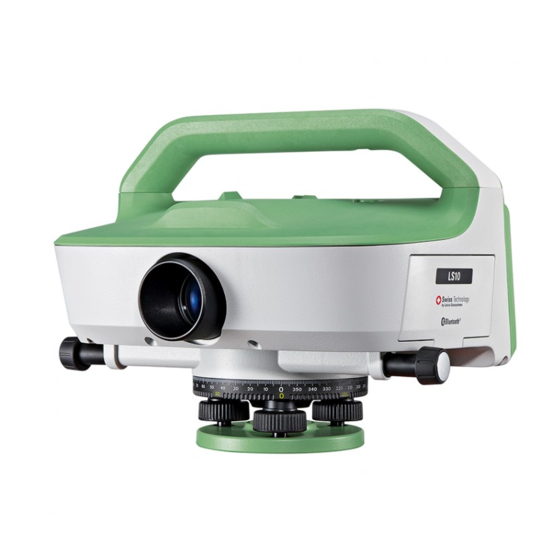

LS10/LS15, Instrument Components Instrument Components Instrument Compo- nents (Part 1) a) Optical sight b) Handle with integrated prism for viewing the circular level c) Circular level d) Touchscreen e) Battery compartment, also containing interface for USB stick and Mini USB... - Page 5 (Part 2) b) Focussing drive c) Trigger key d) Stylus for touchscreen e) RS232/USB serial interface with external power supply (only LS15) Horizontal drive g) Overview camera (only LS15) h) Objective Horizontal circle Footscrews k) Base plate 010045_002 LS10/LS15, Instrument Components...
- Page 6 LS10/LS15, Instrument Components Keyboard a) Touchscreen b) ON/OFF key c) Alphanumeric keypad d) Function keys F1 to F4 e) Home key Page key g) User key 1 h) Navigation keys Enter key User key 2 k) ESC key e f g...
-
Page 7: Technical Data
Technical Data Environmental Temperature Specifications Operating temperature [°C] Storage temperature [°C] -20 to +50 -40 to +70 Protection against water, dust and sand IP55 (IEC 60529) Humidity Up to 95 %. No condensation. LS10/LS15, Technical Data... -
Page 8: Care And Transport
LS10/LS15, Care and Transport Care and Transport Care and Transport • Carry the product in its original container or carry the tripod with its legs splayed across your shoulder, to protect the product against shock and vibration. ... -
Page 9: Operation
Operation The battery must be charged before using it for the first time. Turning the Instru- ment ON and OFF click 010115_003 LS10/LS15, Operation... - Page 10 Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
