WINDOW/WALL TYPE
ROOM AIR CONDITIONER
REFURBISHED MODELS
Model:R-KSTAT08-1C
R-KSTAT10-1C
R-KSTAT10-2C
R-KSTAT12-1C
R-KSTAT12-2C
Important Safety Instructions ..........................1-3
................................................18
TA BL E O F C ON TE N T S
..................................
4-17
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
-
R-KSTAT08-1HC
R-KSTAT10-2HC
R-KSTAT12-2HC
R-KSTAT14-2HC
R-KSTAT14-2C
......................................
.....................................
.............................
18-20
20-21
21-22
Advertisement
Related Manuals for Keystone R-KSTAT08-1C
Summary of Contents for Keystone R-KSTAT08-1C
-
Page 1: Table Of Contents

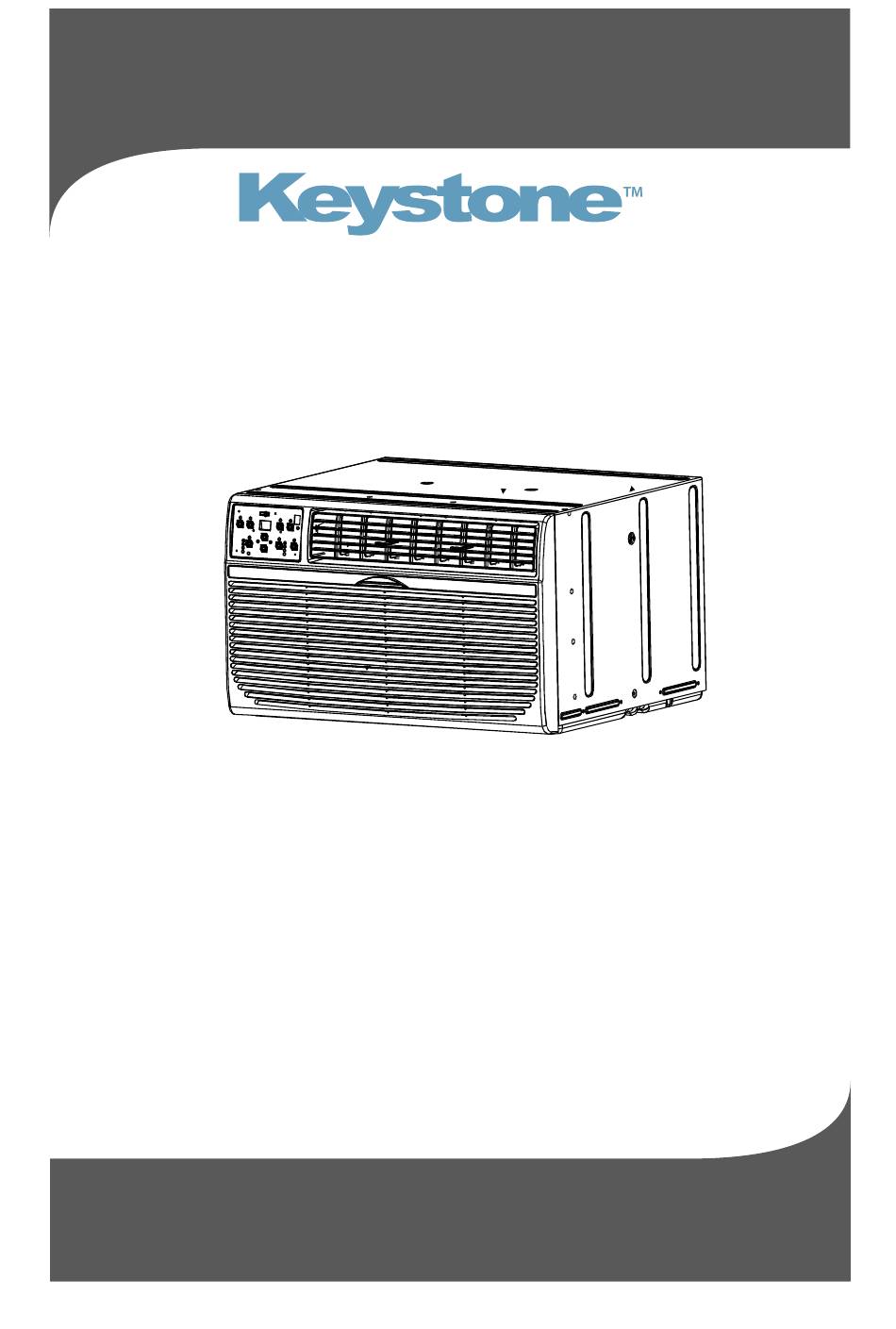

WINDOW/WALL TYPE ROOM AIR CONDITIONER REFURBISHED MODELS R-KSTAT08-1HC Model:R-KSTAT08-1C R-KSTAT10-1C R-KSTAT10-2HC R-KSTAT10-2C R-KSTAT12-2HC R-KSTAT12-1C R-KSTAT14-2HC R-KSTAT12-2C R-KSTAT14-2C TA BL E O F C ON TE N T S Important Safety Instructions ......1-3 Air Conditioner Features ......18-20 Installation Instructions ........ -
