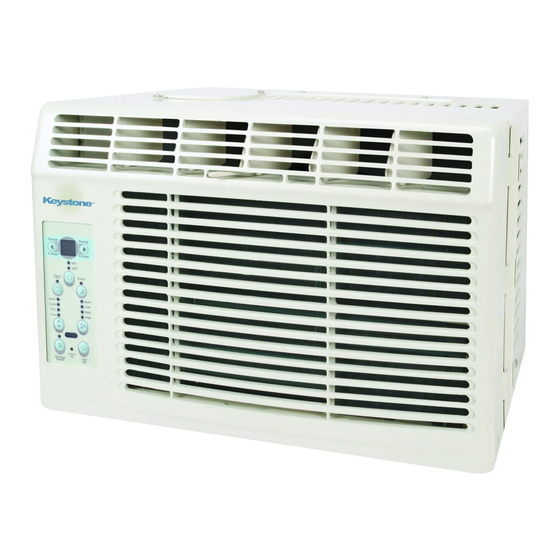

WINDOW/WALL TYPE
ROOM AIR CONDITIONER
Important Safety Instructions ......................1-3
Installation Instructions.................................4-8
Normal Sounds..............................................9
USER MANUAL
Model:R-KSTAW06B
R-KSTAW06C
R-KSTAW12B
R-KSTAW12C
R-KSTAW10B
R-KSTAW08B
TA B L E O F C O N T E N T S
Before using your air conditioner, please read
this manual carefully and keep it for future reference.
-
Air Conditioner Features............................9-11
Care and Cleaning...................................11-12
Troubleshooting Tip..................................12-13
Advertisement
Related Manuals for Keystone R-KSTAW06B
Summary of Contents for Keystone R-KSTAW06B
-
Page 1: Table Of Contents

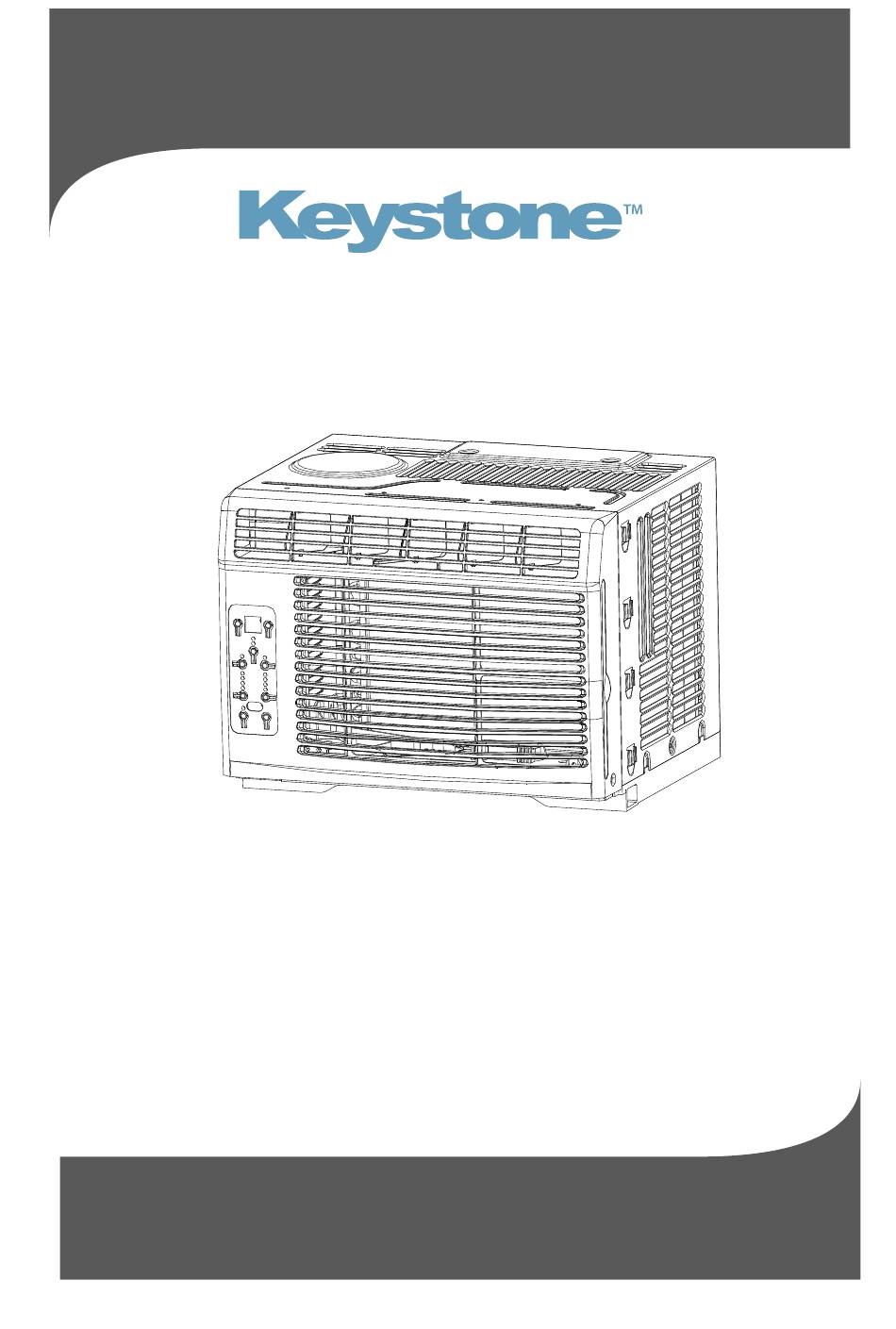

WINDOW/WALL TYPE ROOM AIR CONDITIONER USER MANUAL Model:R-KSTAW06B R-KSTAW06C R-KSTAW12B R-KSTAW12C R-KSTAW10B R-KSTAW08B TA B L E O F C O N T E N T S Important Safety Instructions ......1-3 Air Conditioner Features......9-11 Installation Instructions.........4-8 Care and Cleaning........11-12 Normal Sounds..........9 Troubleshooting Tip........12-13... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips. - Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when where it will be exposed to direct used together with a stove, etc. removed, do not touch the metal parts of the unit.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: The power supply cord with this air For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. device designed to reduce the risk of fire.
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION BEFORE YOU BEGIN Do not, under any circumstances, cut or Read these instructions completely remove the third (ground) prong from the and carefully. power cord. IMPORTANT- Save these Do not change the plug on the power cord instructions for local inspector s use. - Page 6 INSTALLATION INSTRUCTIONS C: Align the hole in the top rail with those in the top PREPARE THE WINDOW of the unit as shown in Fig.B Lower sash must open sufficiently to allow a clear vertical opening of 13 inches (330mm). Side louvers Fig.B and the rear of the AC must have clear air space to allow enough airflow through the condenser, for heat...
- Page 7 INSTALLATION INSTRUCTIONS Ⅰ B. Slide the free end " " section of the panel directly SECURE THE ACCORDION PANE LS into the cabinet as shown in Fig. 2. Slide the panel down. Be sure to leave enough space to slip the A.Keep a firm grip on the air conditioner, carefully top and bottom of the frame into the rails on the place the unit into the window opening so the bottom...
- Page 8 INSTALLATION INSTRUCTIONS B.Drive 3/4" (19mm) or 1/2" (12.7mm) locking screws through frame holes into window sash (Fig.8). Fig.8 C.To secure lower sash in place, attach right angle sash lock with 3/4" (19mm) or 1 /2" (12.7mm) screw as shown(Fig.9). Measure the inner width of the side curtain Fig.11 Fig.9...
- Page 9 INSTALLATION INSTRUCTIONS INSTALL WEATHER STRIPPING (only If AC is Blocked by Storm Window be applicable to Energy star models ) Add wood as shown in Fig.15, or remove storm window before air conditioner is installed. In order to minimize air leaks between the room air conditoner and the window opening, trim the weather sttipping with a proper length, peel off the protective If Storm Window Frame must remain, be sure the...
-
Page 10: Normal Sounds
NORMAL SOUNDS High Pitch ed Cha tter High efficiency compressors ma y have a high pitched cha tter Vib ration dur ing the cooling cycle. U nit may vibrate and make noise because of po or wall or win dow co nstruction o r incorrect in stallation. - Page 11 AIR CONDITIONER FEATURES TO ADJUST FAN SPEEDS: TO SELECT THE OPE RATING M ODE: Press to select the Fan Speed in four steps-Auto, To choose operating mode, press Mode button.Each Low, Med or High. Each time the button is pressed, time you press the button, a mode is selected in a the fan speed mode is shifted.
-
Page 12: Care And Cleaning
AIR CONDITIONER FEATURES DISPLAYS: Fresh Air Vent Control 10000~12000Btu/h models Displays Te mp Te mp Ti mer T im er DISPLAYS: " " " " Shows the set temperature in C or F and the Auto-timer settings.While on Fan only mode,it shows the room temperature. -
Page 13: Troubleshooting Tip
CARE AND CLEANING Cabinet Cleaning Air Filter Cleaning Push the vent handle to the Vent Closed position Be sure to unplug the air conditioner to prevent shock or fire hazard. The cabinet and front may be dusted with an oil-free (where applicable). - Page 14 TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too High, set temperature to a Lower setting. is too warm- NO Air directional louvers positioned improperly. Position louvers for better air distribution. ice forming on cooling coil behind Front of units is blocked by drapes, blinds, furniture, etc.
