Install motherboard onto the H5 bottom plate copper stud using
A
and install

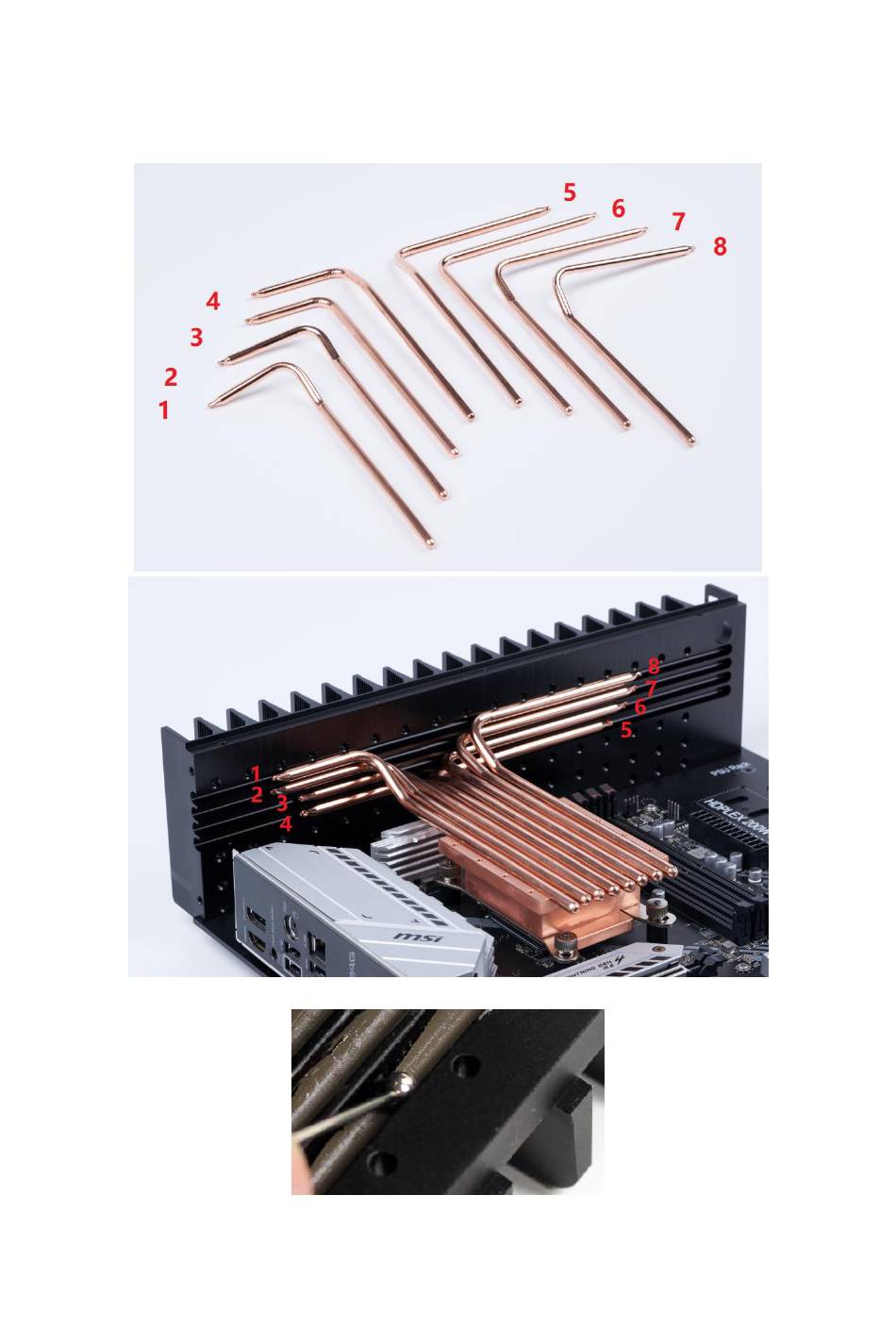

heatpipe 1-8. Apply thin layer of thermal paste inside copper base groove and
side heatsink panel groove using the dumbbell tool
Warning: Do not over apply thermal paste as it will decrease heat transfer efficiency.
