HDPlex H5 Fanless HTPC Classis Installation Manual page 4

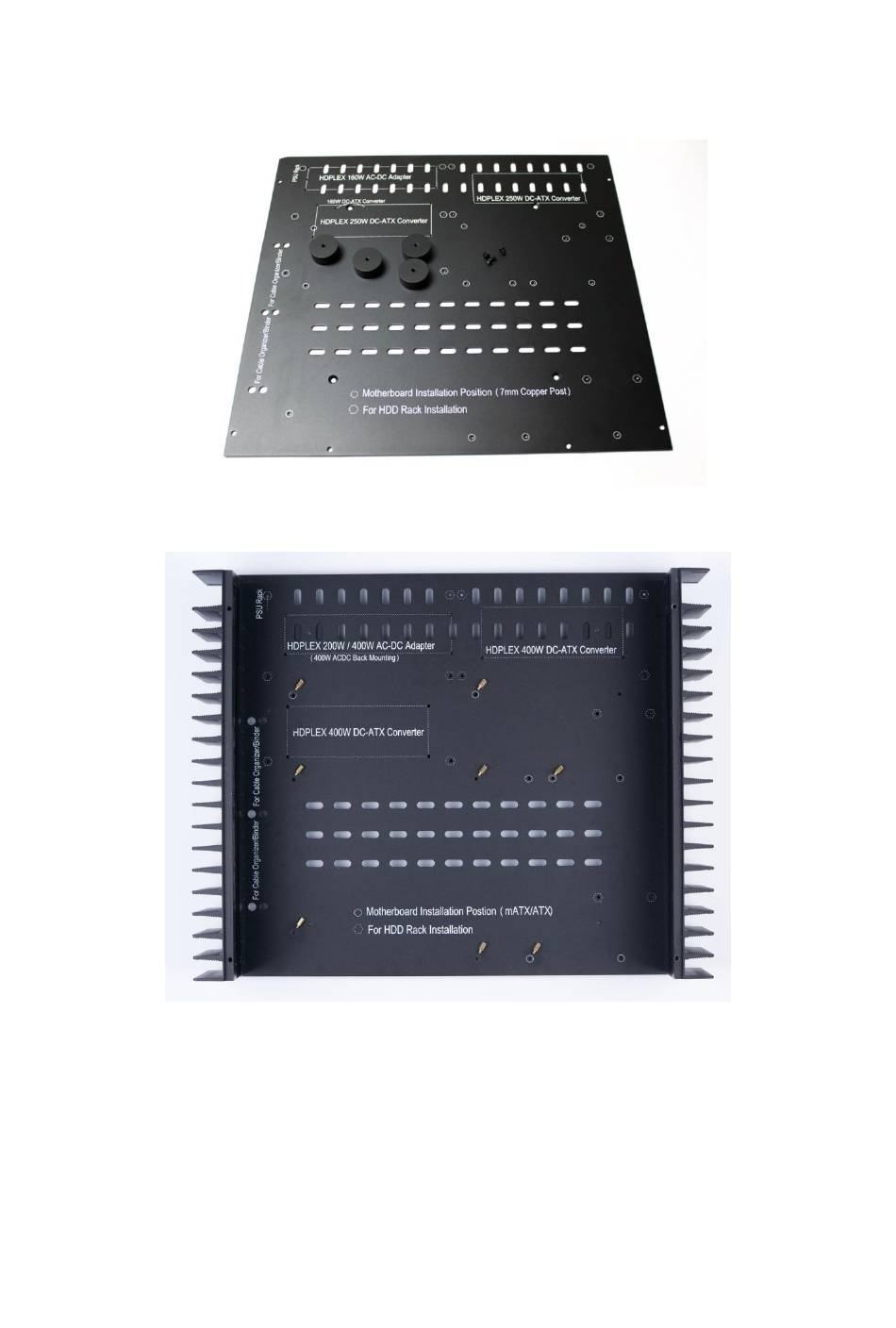

H5 Chassis Bottom Plate Installation
Install four feet with rubber cushion to the bottom plate back side.
Install Hexagonal Copper Stud 7mm E to the bottom plate, matching your
motherboard installation position
Install the aluminum power button on the right panel using lock ring from the
internal side. Both PWR and PWR LED plug do not have polarity. PWR LED will
light up in blue color once PC is turned on.
Install the USB 3.1 Type C and USB 3.0 Cable. Please make sure the USB 3.1
Type C port is fully inserted and is even with external surface.
Page 4 of 21
