HDPlex H5 Fanless HTPC Classis Installation Manual page 5

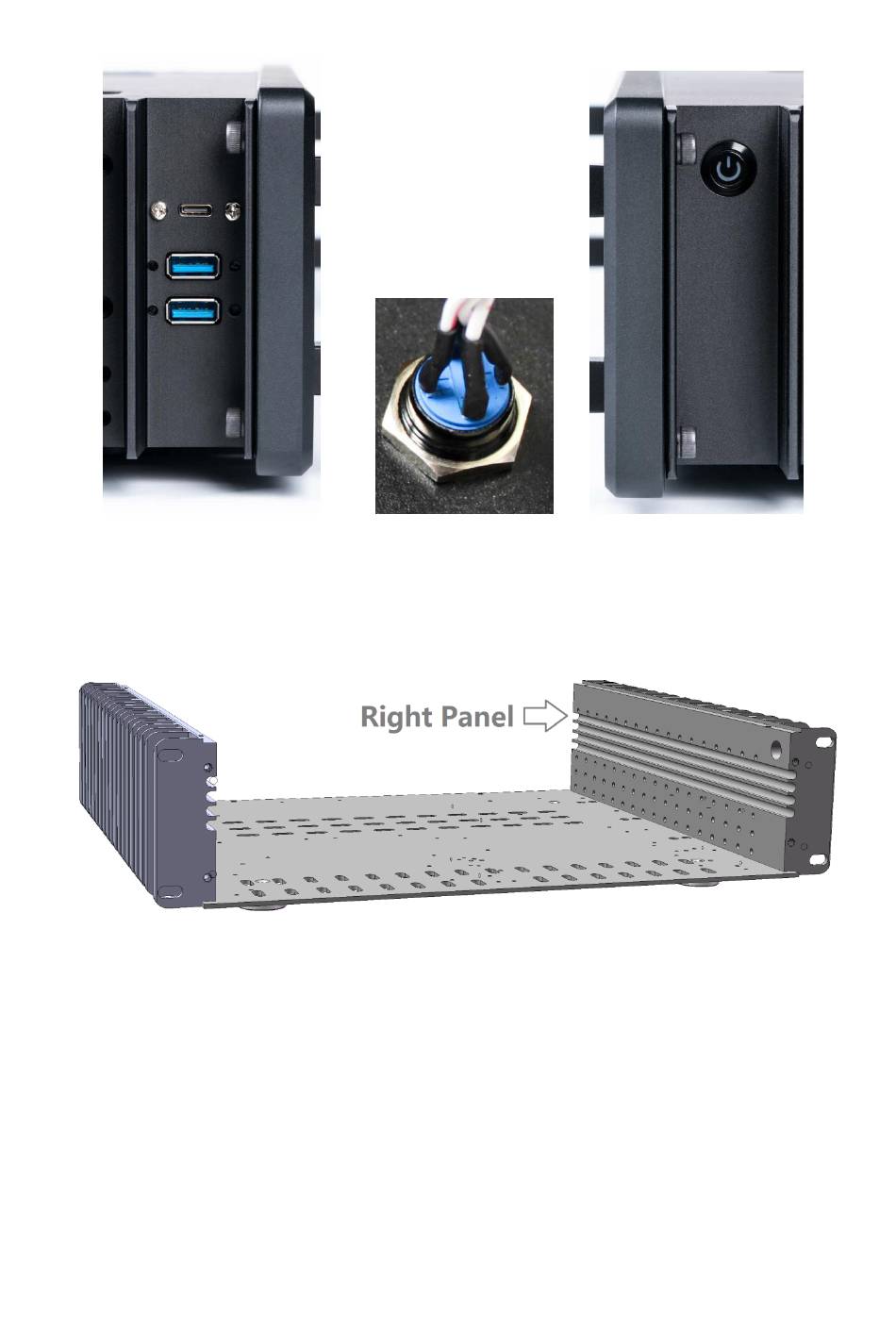

Install right heatsink panel onto the H5 bottom plate using 2pcs C. When
installed correctly, the mounting ear should face forward with power button
above the heatpipe groove.
H5 CPU Heatsink System Installation
CPU Heatsink Installation Kit List:
H-1: M3*5mm Flat Head Silver Screw 4pcs
H-2: M3*10mm CUP Head HEX Screw Silver 8pcs
H-3: M3 Hand Turn Screws 4pcs
H-4: M3*14mm Flat Head Screw Black 16pcs
H-5: Multipurpose Bottom Rack for Intel and AMD
Page 5 of 21
