HDPlex H5 Fanless HTPC Classis Installation Manual page 15

HDPLEX ATX Modular Bridge Input Board (This product is included in HDPLEX
500W ATX linear PSU).

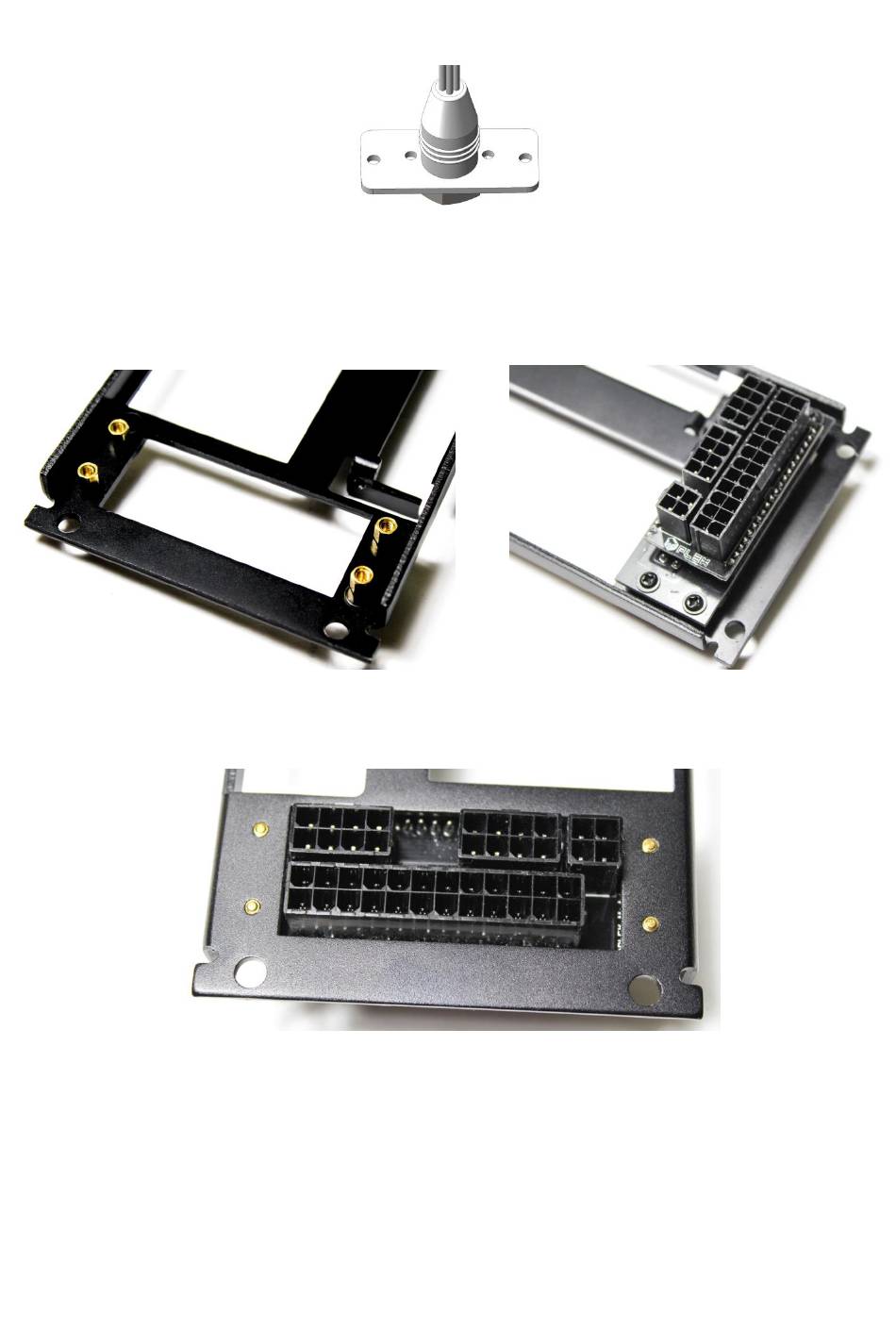

Install 4pcs 4mm copper post (comes with the ATX Modular board) onto the
H5 back plate. Install the ATX modular bridge board using 4pcs A
ATX Modular bridge board will conflict with H5 side heatsink panel if installed
incorrectly. Below is the view from external side of the H5 backplate.
Install the left heatsink panel on the H5 bottom plate using 2pcs C
Attached motherboard I/O shield plate to the H5 back plate and install the back
plate using 4pcs B to two side panel.
Page 15 of 21
