Faceplate Installation - HDPlex H5 Fanless HTPC Classis Installation Manual

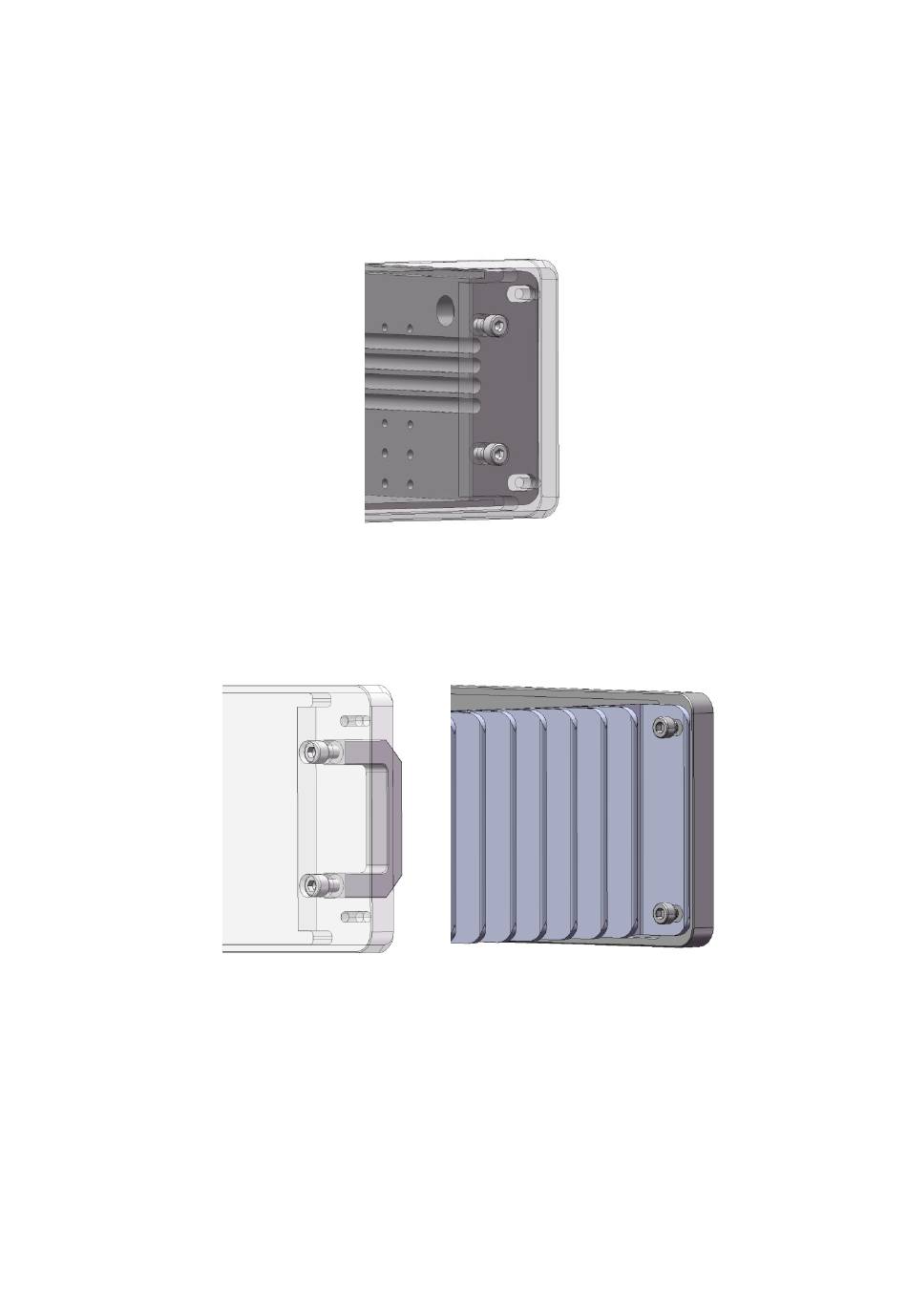

If you don't need front handle, just mount the faceplate using 4 HEX Socket Cap Head M5*14mm
to the two H5 side heatsink panel.
To install optional handle. First use 4pcs Hex Socket Cap Head M5*14mm
install the front handle from the back of the faceplate. Use 4pcs Hex Socket Cap
Head M5*8mm
from the back. Use M5 HEX key Allen wrench to tighten it.
Test PC thoroughly and make sure heatsink system functions well.
Close the H5 top plate using 4pcs C. If the distance between two side panels is
too tight for the top plate to fit in, please first loosen the screws in the red circle
below, then insert the top plate half way, tighten the screws for the heatsink
system aluminum top plate, insert the top plate in full and tighten the rest
screws.

Faceplate Installation

B to mount the faceplate onto side heatsink panel mounting ear
Page 19 of 21
B
B to
