Power Supply Installation

HDPLEX 400W AC-DC+400W DC-ATX NanoATX Combo
HDPLEX 400W AC-DC is back mounted on the H5 bottom plate via the M2.5
screws come with the HDPLEX 400W AC-DC package. HDPLEX 400W AC-DC
optional mounting ears are NOT used for H5 installation.

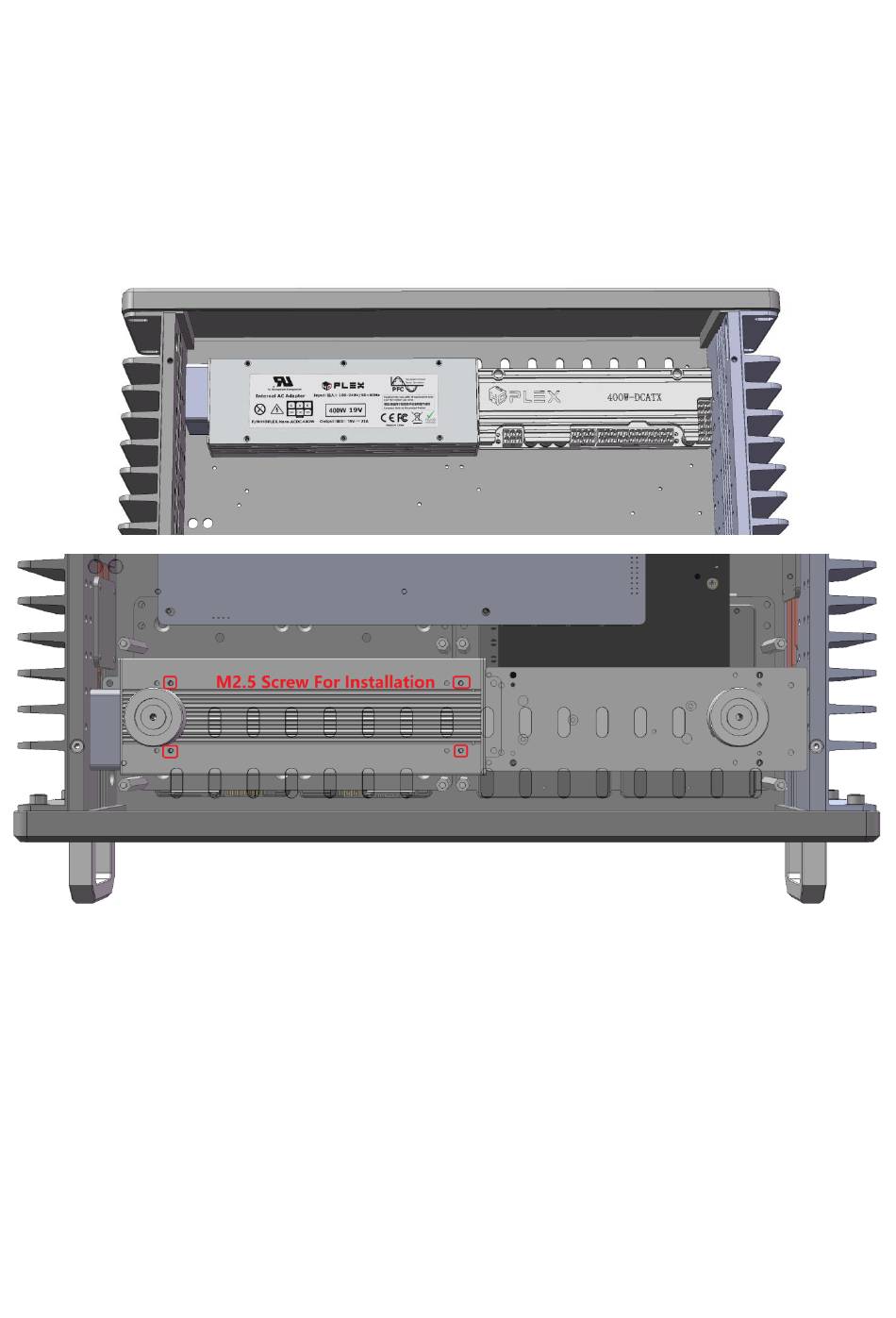

Four M2.5 mounting holes are circled in red. H5 bottom plate is made
transparent for clear view. The four M3 holes in the center on the back of the
400W AC-DC adapter are not used for H5 mounting. HDPLEX 400W DC-ATX is
front mounted using M3 screws. One 24PIN extension cable is included in the H5
package.
For ITX motherboard, the 400W DC-ATX can be installed on the same side as
400W AC-DC adapter and in front the ITX motherboard.
