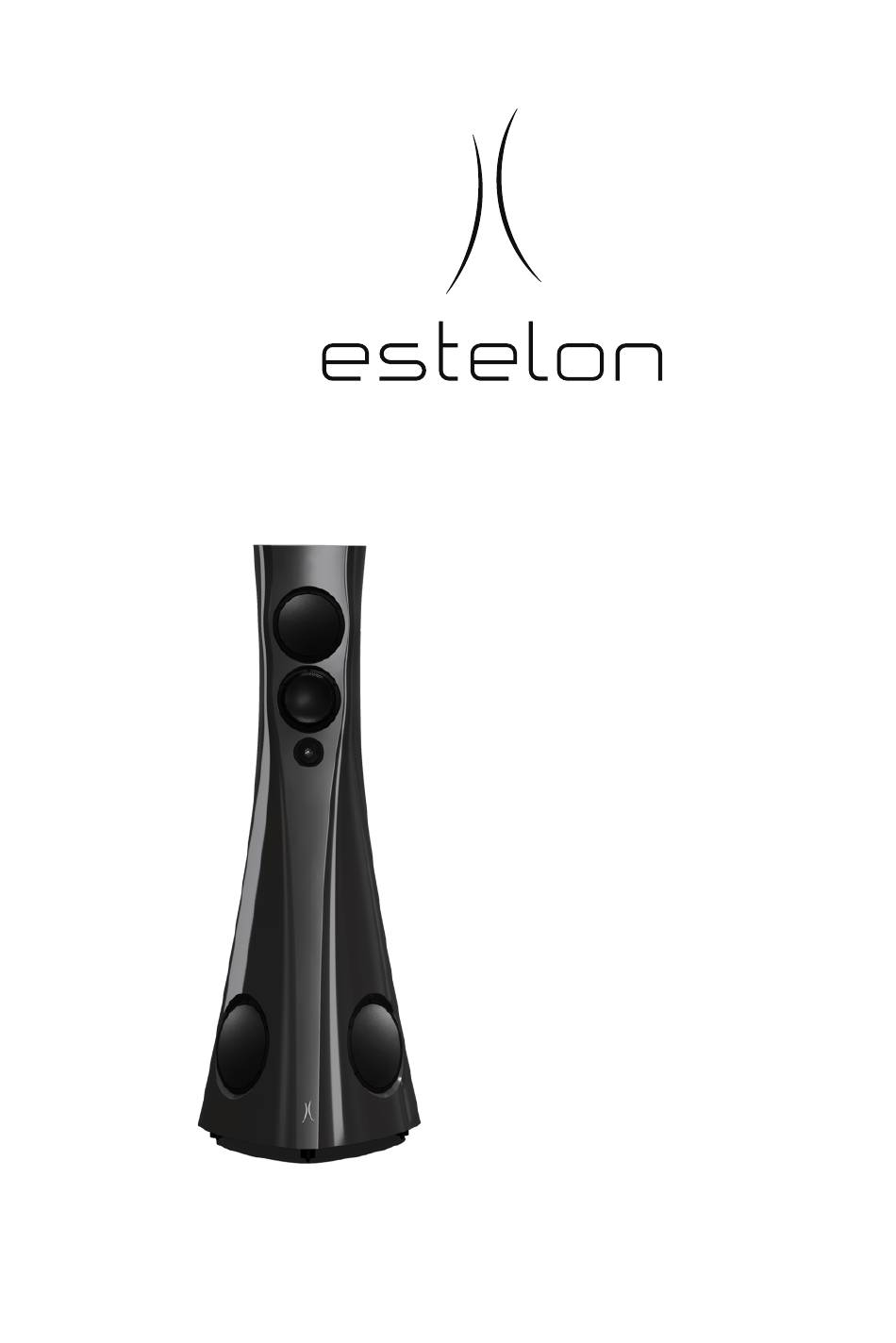

- Page 1 Alfred & Partners Designed by Alfred Vassilkov ___________________ Model Forza Serial Number __________...
- Page 2 Your ESTELON loudspeakers have passed our quality control: – Technical test passed. Engineer, Estelon – Listening test passed. Alfred Vassilkov Head of Research and Development, Estelon...
-
Page 3: Table Of Contents
....................22 IRING 4.4. B ................23 REAK IN PERIOD 4.5. S ..23 UP RECOMMENDATIONS BY LFRED ASSILKOV 5. TAKING CARE OF YOUR ESTELON SPEAKERS ..... 24 6. ESTELON / ALFRED & PARTNERS OÜ – TECHNICAL SERVICES ......................26... -
Page 4: Introduction
1.1. Alfred & Partners OÜ Alfred & Partners, the Tallinn-based design studio, think-tank, and owner of Estelon, is not simply a business but a passionate dedication to a single, heartfelt idea: the development and manufacturing of instruments capable of unveiling the rich, emotional tapestry of music in a personally involving and captivating way. - Page 5 The unique cabinet shape of Estelon speakers create the ideal conditions for sound reproduction. Its curved, smooth form eliminates corner reflections.
-
Page 6: Estelon Forza

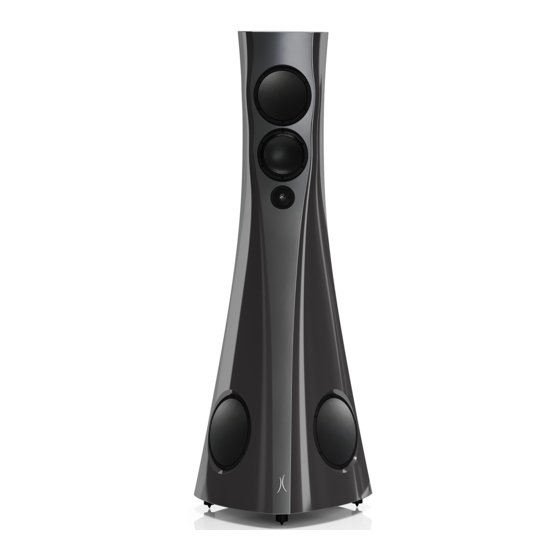

1.2. Estelon Forza Estelon Forza: Standing at nearly 1.7 metres (66 inches) in height, the elegant design of the Forza features the very best of what Estelon has to offer. As the name suggests, the Forza is full of unimaginable refined power. -
Page 7: Cabinet Design
The Forza provides extremely defined and deep bass, clear and articulate mid-range, and musically detailed and dynamic high frequencies. The Forza is capable of reproducing the finest nuances of music. 1.2.1. Cabinet Design The cabinet form has been developed and honed over many... -
Page 8: Transducers
Forza cabinet can reproduce a truly deep, accurate, and effortless bass. The Forza’s bass has been said to sound like “live bass” This is a result of meticulous engineering. - Page 9 It is like being present at a live concert where one can hear the instruments but not the speakers reproducing the sound. The Estelon Diamond loudspeakers offer a new way of relaxed listening, and you get to sense all the details that you have never heard before on your old records and digital music.
-
Page 10: Crossovers
1.2.3. Crossovers We use specifically engineered and highly precise third-order crossovers for the woofers and second-order networks for the mid- woofer, midrange and tweeter. Countless hours of R&D and real-world listening test have been conducted of each crossover design and related parts, right down to the physical placement of each part and positioning within the cabinet. -
Page 11: Finish
Finally, the multiple coats of the lacquer finish are applied along with the final polishing to a mirror-like finish. The Estelon Forza is offered in a choice of liquid gloss, matte, or the optional premium finishes. -
Page 12: Specifications
2. SPECIFICATIONS TYPE: 4-way passive loudspeaker, sealed box DRIVERS: 2 x Woofer: 250 mm (11 inch) Accuton, CELL aluminum sandwich (custom design) Mid-woofer: 190 mm (8 inches) Accuton, CELL aluminum sandwich (custom design) Mid-range: 168 mm (7 inches) Accuton, CELL ceramic membrane Tweeter: 25 mm (1 inch) Accuton, diamond inverted dome... -
Page 13: Unpacking Instructions
Your Estelon loudspeakers come packaged individually in 2 separate flight cases. We recommend keeping these cases for possible future transportation. Due to the substantial weight and slippery surface of the loudspeakers, we suggest that two able-bodied individuals assist in the unpacking and positioning process. - Page 14 Unlock/open all four locks of the flight case cover while the speaker/flight case is in a horizontal position. (drawing 1) 2. Carefully lift and remove the cover from the flight case. (drawing 2) 3. Mind the warning signs on the drivers - excessive pressure on the driver elements might cause damage.
- Page 15 4. Lift gently the flight case as shown in drawing 4 while the other person supports the speaker from the other side till it is in a vertical position as shown in drawing 5.
- Page 16 5. When in an upright position, support the speaker while rolling it out of the case slowly. Please use the provided gloves that are included in the accessories box inside the flight case. 6. Now, with the speaker upright and out of the flight case, roll it to the desired position in your room and then carefully remove the cloth bag.
-
Page 17: Set-Up
4. SET-UP 4.1. Initial positioning in the room Model Forza – Suggested room size 40-125 m² (430-1345 square feet) When positioning the speakers in your room, it is advised to allow enough ”free” space around the speakers to minimize sound reflections from walls, furniture, etc. -
Page 18: Installing The Bases
4.2. Installing the bases The bases consist of four parts as shown in drawing 6. Before replacing the transport wheels of the speakers with the bases, please screw the spikes with the locking rings into the bottom of each isolation foot (drawing 7). Once you have assembled the bases and the final position of the speakers has been located, it is time to replace the transport wheels. - Page 19 Please replace the wheels on one side of each loudspeaker at a time . One person should carefully tilt the speaker against himself/herself and hold it in this position (drawing 9), while the other person removes the two accessible wheels as shown in drawing 10. Please make sure the edge of the speaker's bottom does not touch the floor during this process.
- Page 20 After the 2 wheels are removed, please locate the isolation feet holes on the base of the speaker, that are next to the holes of the wheels (drawing 11). Then screw the isolation feet into the specific holes as shown in drawing 12.
- Page 21 In case of hard flooring, please place the floor plates onto the floor before lowering the speaker on the side that the wheels were replaced. The floor plates are for use only on hard flooring in order to protect the floor from any damage from the spikes. For carpeted floors, use the spikes in order to pierce through the carpet to the hard flooring underneath.
-
Page 22: Wiring
Firmly hold the isolation foot to stay in place and unscrew the locking ring. ii) Keep holding the isolation foot and unscrew the spike till it reaches the right length and touches the floor/floor plate. iii) While firmly holding the spike in the adjusted height position, tighten the locking ring until the spike is firmly and securely seated. -
Page 23: Break-In Period
4.4. Break-in period Although all Estelon speakers have an initial “break-in” at the factory, due to shipping conditions and pressure/temperature changes that may have incurred, the speakers will need to go through an additional “break-in” process before their final set-up. All the mechanical and electrical connections will stabilize naturally after playing a continuous music signal for approx. -
Page 24: Taking Care Of Your Estelon Speakers
In order to maintain the speakers’ immaculate appearance, special cleaning cloths are provided with your Estelon loudspeakers. Please note that only dry cleaning is allowed. Do not wash the speakers. In case of a smudge/spot, please use a damp, soft, lint-free cloth to clean the smudges before the final finishing with the special cloths that accompany the speakers. - Page 25 For Liquid Gloss finish only: Window Cleaner (with alcohol) ● Polish cloth impregnated with Krytox® (DO NOT USE FOR MATTE ● FINISH) No additional wax or polish is required. additional information guidance regarding cleaning/polishing materials, please contact your dealer or distributor.
-
Page 26: Estelon / Alfred & Partners Oü - Technical Services
Terms and Conditions Limited Warranty – All ESTELON products purchased from authorized ESTELON dealers are covered by a limited 5-year non- transferrable warranty granted by Alfred & Partners OÜ. This warranty includes all parts and labour charges as well as return shipping charges... - Page 27 Partners OÜ additional costs arising from providing this limited warranty in another country than the country of original purchase. This limited warranty shall not affect the statutory rights of the Customer. Limited to Original Purchaser – This warranty is for the sole benefit of the original purchaser of the covered product and may not be transferred to a subsequent purchaser of the product.
- Page 28 The term of the original warranty shall not be extended by the duration of any warranty repairs. Design Changes – ESTELON reserves the right to modify its products or change specifications at any time without obligation or liability to previous purchasers.
- Page 29 Customers should consult with their original ESTELON dealer or distributor for possible alternate repair instructions prior to contacting the ESTELON factory. BUT under any and all circumstances customers are welcome to...
- Page 30 Have we answered all your questions? If not, please send us an email with your questions at sales@estelon.com www.estelon.com...
- Page 31 ESTELON is a trademark of Alfred & Partners OÜ Alfred & Partners OÜ Kukermiidi 6 Tallinn, 11216 Estonia Notes...
