Summary of Contents for Estelon Forza

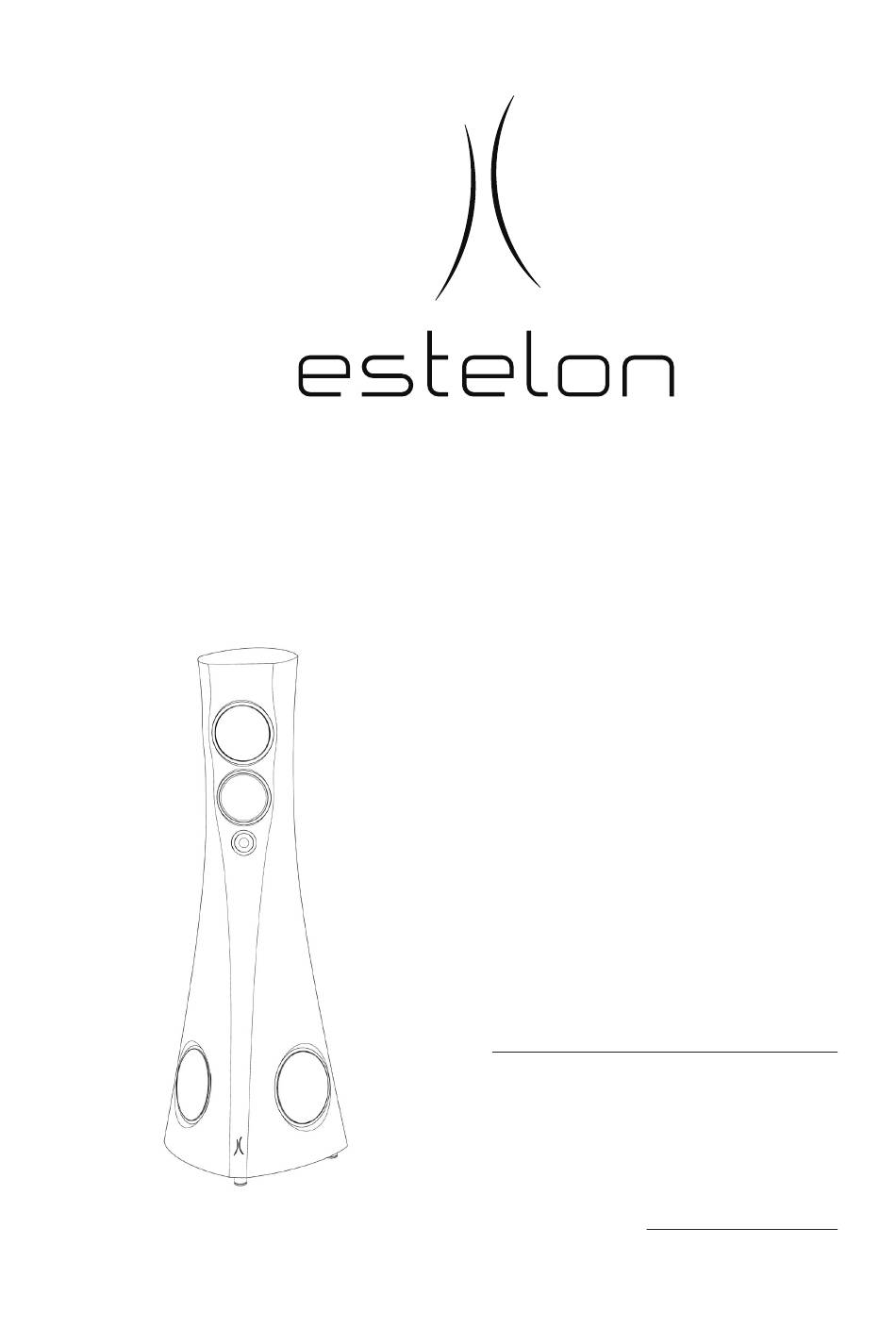

- Page 1 Designed by Alfred Vassilkov Serial Number Model Estelon Forza...
- Page 2 Your ESTELON loudspeakers have passed our quality control: – Technical test passed. Marek Rajatalu Production Manager Estelon – Listening test passed. Alfred Vassilkov Founder and Chief Designer Estelon...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION......... . 4 SPECIFICATIONS . -
Page 4: Introduction
Our Story There can be few world-class firms that have been founded at the breakfast table, but Estelon – from Tallinn, Estonia – is certainly one of them. The high-end audio brand traces its origins back many decades when a young boy obsessed with music, began to take apart radios and adjust them to improve the sound quality. - Page 5 The Estelon Forza is an much awaited addition to the Estelon flagship series. Standing at nearly 1,7 metres in height, the elegant design of the Forza features the very best of what Estelon has to offer. The per- fect synergy between aesthetics and engineering. Using only the ma- terials and components best suited for this model and manufacturing it with the greatest detail, the Forza brings music to life.
- Page 6 The finishing is handcrafted and consists of up to 12 layers and is then carefully hand polished. The Estelon Forza is offered in a choice of liquid gloss, matte or the optional finishes.
-
Page 7: Specifications
2. SPECIFICATIONS Type: 4-way sealed box Woofer: 2 x 250 mm CELL Aluminium Sandwich Accuton (custom design) Mid Woofer: 190 mm CELL Aluminium Sandwich Accuton (custom design) Midrange: 168 mm CELL Ceramic Accuton Tweeter: 25 mm CELL Diamond Accuton Internal Wiring: Kubala-Sosna Frequency Response: 25 - 60 000 Hz... - Page 8 Dimensions in Millimeters:...
-
Page 9: Unpacking Instructions
3. UNPACKING INSTRUCTIONS Your Estelon loudspeakers come packaged individually in 2 separate flight cases – we strongly recommend keeping these cases for possi- ble future use / transport. Due to the substantial weight and slippery surface of the loudspeakers we suggest that two persons assist in the unpacking and positioning of them for listening. - Page 10 4. Gently, lift the flight case, with the speaker, as shown in drawing 4 and elevating it to a vertical position as shown in drawing 5. 5. Now in an upright position, please support the speaker and slowly roll the speaker out of the case. At this time, please put on the gloves that you find included in the case.
- Page 11 6. Replace the transport wheels with the enclosed feet. Doing one side at a time, carefully tilt the speaker to one side and replace the wheels with the enclosed feet, as shown in draw- ing 6. Please retain the wheels, once removed, in the event that repackaging is required.
-
Page 12: Set-Up
4. SET-UP Initial positioning in the room Model Estelon Forza - Suggested room size 40-125 m When positioning the speakers in your room, if possible, it is desir- able to allow for “free” space around the speakers so as to assist in minimizing sound reflections from walls, furniture etc. - Page 13 Typically, the signal flow will be in the same direction as the labeling / writing on the cable. Estelon Forza can be bi-amped or bi-wired at your choice. Please remove wire jumpers to be able to use the upper and lower connec-...
- Page 14 Break-in period Although your Estelon speakers had an initial break-in at the factory, due to shipping conditions - pressure/temperature changes that they may have incurred, the speakers will need to go through an additional break-in process before their final set-up.
- Page 15 When changing the position of your speakers please keep in mind that: • Close proximity to the back wall and corners will reinforce, enhance, the bass performance, but can negatively influ- ence the stereo image. • A shorter distance between the two speakers, will create a better focus and deeper imaging, but will at the same time reduce the sound width.
-
Page 16: Product Care
5. PRODUCT CARE The multicoated finishes applied to Estelon speakers are considered to be amongst the most advanced automotive finishes available. They are extremely strong and durable. In order to assist you in maintaining their stunning appearance, your Estelon loudspeakers come supplied, from the factory, with special cleaning / polishing cloths. -
Page 17: Technical Services
Estelon Five Year Limited Warranty Terms and Conditions 1. Limited Warranty - All Estelon products purchased from authorized Estelon dealers are covered by a limited 5-year non-transferrable war- ranty. This warranty includes all parts and labour charges as well as return-shipping charges (product owner is responsible for all shipping and insurance charges one-way to the Estelon repair facility). - Page 18 Estelon via an insured freight, at the owner’s expense. If replacement packaging materials are required, they may be purchased from the factory at a charge.
- Page 19 TAINERS ONLY, according to the instructions included in the return e-mail, and ship the product to the shipping address included in the e-mail. The owner is responsible for paying the shipping and insurance charges (Estelon will cover return shipping and insurance charges on warranty repairs).
- Page 20 ••• Have we answered all your questions? If not, please send us an email with your questions to sales@estelon.com www.estelon.com ESTELON is a trademark of Alfred & Partners OÜ Alfred & Partners OÜ Tanuma 126 13521 Tallinn Estonia...
