- Page 1 from Alfred & Partners Designed by Alfred Vassilkov ___________________ Model YB Mk II Serial Number _________ Limited Edition Only 50 pairs of the Limited Edition “Champagne Gold” Model YB are CHAMPAGNE GOLD available worldwide!
- Page 2 Your ESTELON loudspeakers have passed our quality control: – Technical test passed. Engineer, Estelon – Listening test passed. Alfred Vassilkov Head of Research & Development, Estelon...
-
Page 3: Table Of Contents
..................... 19 IRING 4.4. B ................19 REAK IN PERIOD 4.5. S ..19 UP RECOMMENDATIONS BY LFRED ASSILKOV 5. TAKING CARE OF YOUR ESTELON SPEAKERS ....20 6. ESTELON / ALFRED & PARTNERS OÜ – TECHNICAL SERVICES ......................21... -
Page 4: Introduction
1.1. Alfred & Partners OÜ Alfred & Partners, the Tallinn-based design studio, think-tank, and owner of Estelon, is not simply a business but a passionate dedication to a single, heartfelt idea: the development and manufacturing of instruments capable of unveiling the rich, emotional tapestry of music in a personally involving and captivating way. - Page 5 Estelon. More importantly, Estelon offers a distinctive key that assists listeners in unlocking the vast structure of emotion through music. For the Estelon brand, the visionary development started in...
-
Page 6: Estelon Yb M Kii
Many years have passed since the genesis of the Estelon, and much has been learned while embodying all achievements. The roots and choices have evolved into the Estelon sound. With the YB Mk II, the most beloved element of Estelon products has been reaffirmed again: simplicity. -
Page 7: Cabinet Design
This is why the Estelon speakers reproduce a very natural and balanced sound. During the final hand-assembly process each speaker is individually tuned to maintain uniformity from unit to unit. -
Page 8: Transducers
It is like being present at a live concert where one can hear the instruments but not the speakers reproducing the sound. The Estelon loudspeakers offer a new way of relaxed listening, and you get to sense all the details that you have never heard before on your old records and digital music. -
Page 9: Crossovers
The Estelon YB Mk II has a finely tuned crossover. It is second-order, allowing it to be incredibly fast and with perfect phase transition. The crossover point of the tweeter and mid-woofer is at 2 kHz and between the mid-woofer and woofer at 80Hz. -
Page 10: Finish
Finally, the multiple coats of the lacquer finish are applied along with the final polishing to a mirror-like finish. The Estelon YB Mk II is offered in a choice of liquid gloss, matte, or the optional premium finishes. -
Page 11: Specifications

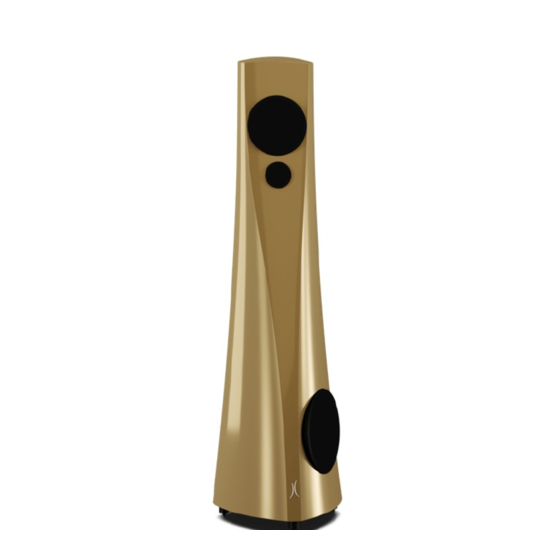

2. SPECIFICATIONS TYPE: 3-way passive speaker, sealed DRIVERS: Woofer: 220 mm (8 inches) SEAS, aluminium cone Mid-woofer: 148 mm (5.8 inches) Scan- Speak, sliced paper cone “Revelator” Tweeter: 25 mm (1 inch) Scan-Speak, beryllium dome “Illuminator” INTERNAL WIRING: Kubala-Sosna FREQUENCY RESPONSE: 30-40 000 Hz POWER RATING: 150 Watts... -
Page 12: Unpacking Instructions
3. UNPACKING INSTRUCTIONS Your Estelon Model YB loudspeakers come packaged in 2 separate carton boxes. For shipping, both boxes are packed in one plywood crate. The crate is collapsible for easier storage. We recommend keeping the original packaging for possible future transportation. - Page 13 4. Lift the box with the speaker to a vertical position as shown in drawing 3. Lift the box gently while the other person supports the box from the other side. Elevate the box with the speaker to a vertical position. Pay attention to the Speaker Top signs. 5.
-
Page 14: Set-Up
4. SET-UP 4.1. Initial positioning in the room Model YB Mk II – Suggested room size 16-45 m² (170-480 square feet). When positioning the speakers in your room, it is advised to allow enough ”free” space around the speakers to minimize sound reflections from walls, furniture, etc. -
Page 15: Installing The Spikes
4.2. Installing the spikes Depending on the type of floor in the listening room, there are 2 options for the stabilization of the speaker. The Estelon YB Mk II is shipped with the metal bases preinstalled on the base of the speakers which are ideal for hard surfaces. - Page 17 2. Now remove the flat metal bases by pulling them out of the isolation feet, and then insert the spikes into the bottom of each isolation foot until firmly seated as shown in drawing 9. 3. Once you have attached the spikes to the isolation feet (drawing 10), please locate the isolation feet holes on the base of the speaker (drawing 11).
- Page 18 4. Finally, screw the isolation feet into the specific holes as shown in drawing 12. Repeat the process for replacing the rest of the metal bases on that loudspeaker, and then repeat this process for the other loudspeaker until both loudspeakers are standing on their spikes. In case of an uneven floor please slightly unscrew the isolation feet that do not touch the floor .
-
Page 19: Wiring
Typically, the signal flow is in the same direction as the labelling/writing on the cable. 4.4. Break-in period Although all Estelon speakers have an initial “break-in” at the factory, due to shipping conditions and pressure/temperature changes that may have incurred, the speakers will need to go through an additional “break-in”... -
Page 20: Taking Care Of Your Estelon Speakers
In order to maintain the speakers’ immaculate appearance, special cleaning cloths are provided with your Estelon loudspeakers. Please note that only dry cleaning is allowed. Do not wash the speakers. In case of a smudge/spot, please... -
Page 21: Estelon / Alfred & Partners Oü - Technical
6. ESTELON / ALFRED & PARTNERS OÜ – Technical Services Alfred & Partners OÜ Five Year Limited Warranty Terms and Conditions Limited Warranty – All ESTELON products purchased from authorized ESTELON dealers are covered by a limited 5-year non-... - Page 22 (product owner is responsible for all shipping and insurance charges one-way to the ESTELON repair facility or ESTELON factory approved repair facility). Upon receipt of an online registration, Alfred & Partners OÜ...
- Page 23 Conditions and Limitations – This warranty is subject to certain conditions and limitations, as follows. This warranty is void and inapplicable if the product has not been used in accordance with the instructions found elsewhere in the owner’s manual, or if it has been misused or abused, damaged by accident or neglect, or in transport once in possession of the purchaser.
- Page 24 The term of the original warranty shall not be extended by the duration of any warranty repairs. Design Changes – ESTELON reserves the right to modify its products or change specifications at any time without obligation or liability to previous purchasers.
- Page 25 Customers should consult with their original ESTELON dealer or distributor for possible alternate repair instructions prior to contacting the ESTELON factory. BUT under any and all circumstances customers are welcome to...
- Page 26 ESTELON is a trademark of Alfred & Partners OÜ Alfred & Partners OÜ Kukermiidi 6 Tallinn, 11216 Estonia Notes...
