Summary of Contents for Estelon XB

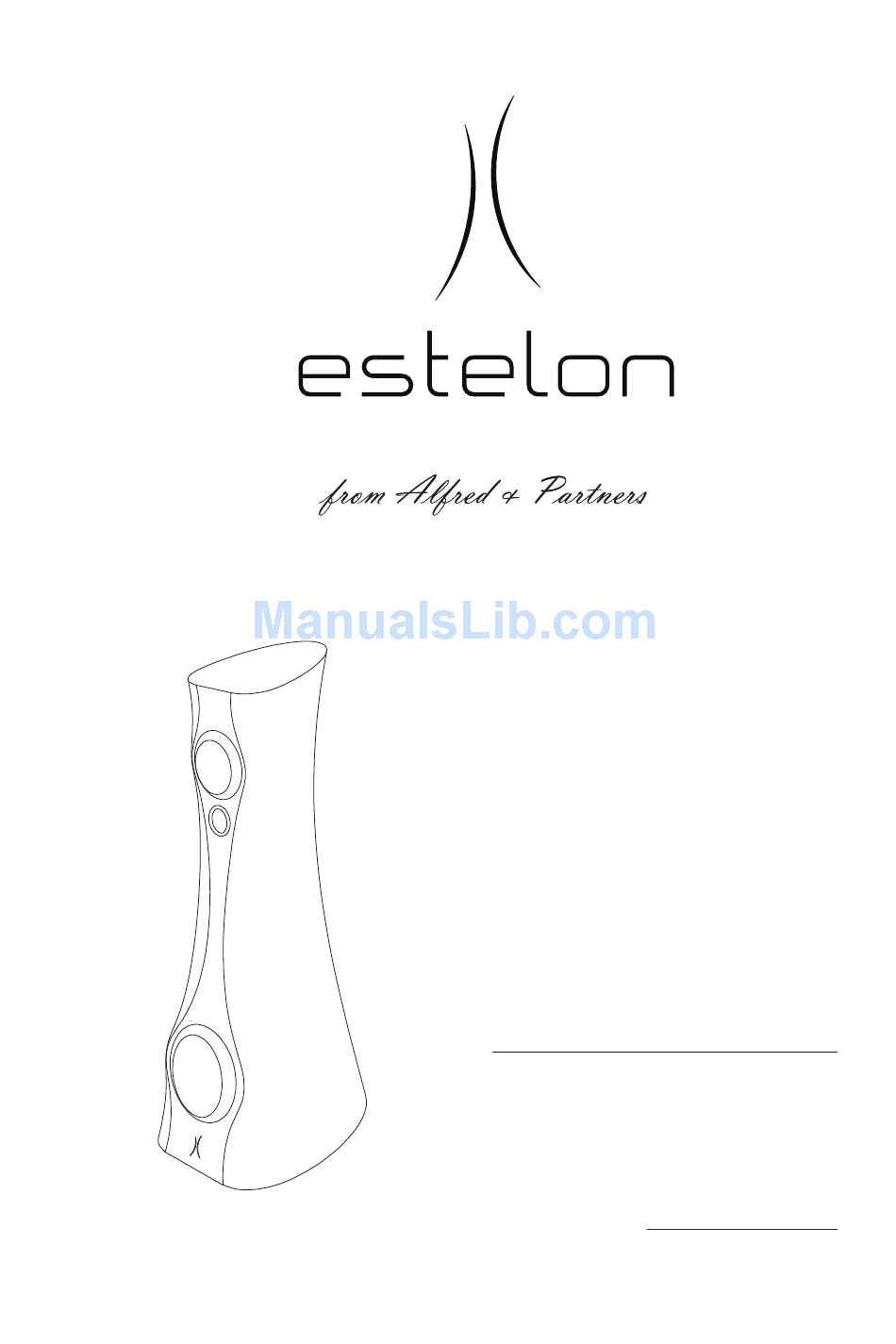

- Page 1 Designed by Alfred Vassilkov Model XB Serial Number...
- Page 2 Your ESTELON loudspeakers have passed our quality control: – Technical test passed. – Listening test passed. Alfred Vassilkov Head of Research and Development, Alfred & Partners...
-
Page 3: Table Of Contents
1.2. Estelon Model XB ........6... -
Page 4: Intoduction
INTRODUCTION 1.1. Alfred & Partners Alfred & Partners, the Tallinn based design studio and think tank, is not simply a business but a dedication, a dedication to a single, heartfelt idea – the production of Instruments, Sound Diffusers, Sculptures – capable of unveiling the rich, emotional tapestry of music in a personally involving way. - Page 5 – music. ••• For Estelon, the new brand, the visionary development started in 2006 when Alfred started to analyze materials and technologies for producing cabinets with streamlined shapes that could not only reproduce the best sound but also assimilate into an interior, with their elegant “sculpture”...
-
Page 6: Estelon Model Xb
The result of a reassessment, a further refinement and extension of the performance goals already in place for the much praised Model XA – Alfred Vassilkov’ s first tribute to the Estelon brand and the birth of a new approach to loudspeaker design. Chief among the physical design elements continues to be the use of the E-lon cabinet form. - Page 7 Cabinet Design – As for all the Estelon loudspeakers, chief among the physical design elements of the Model XB is the use of E-lon cabinet form, having been developed and honed over a five year period. The E-lon shape is a result of choices of material and time-honored con-...
- Page 8 – hand sanding accompanying each finish- ing coat. Final polishing – to a mirror-like or matte finish, again, is done by hand. The Estelon XB is offered in a choice of liquid gloss or matte finishes or the optional/premium finishes.
-
Page 9: Specifications
SPECIFICATIONS Woofer: 8,7“ Accuton, ceramic sandwich dome Mid Woofer: 6,25“ Accuton, ceramic membrane Tweeter: 1“ Accuton, ceramic inverted dome Internal Wiring: Kubala-Sosna Capacitors: Mii, Teflon-Hybrid Frequency Response: 22 - 30 000 Hz Power Rating: 150 W Amplification Power: 30 W Nominal Impedance: 6 ohms (min 3.5 ohms at 50 Hz) Sensitivity:... - Page 10 Dimensions in Millimeters:...
-
Page 11: Unpacking Instructions
3. UNPACKING INSTRUCTIONS Your Estelon loudspeakers come packaged individually in 2 separate flight cases – we strongly recommend keeping these cases for possible future use / transport. Due to the substantial weight and slippery surface of the loudspeakers we suggest that two persons assist in the unpacking and positioning of them for listening. - Page 12 5. Now in an upright position, please support the speaker, and slowly roll the speaker out of the case. At this time, please put on the gloves that you find included in the accessories box inside the flight case. Now, with the speaker upright and out of the flight case, roll it to the desired position in your room and finally, carefully remove the cloth bag from the speaker.
- Page 13 transport wheels with the enclosed spikes as shown in drawing 6. Doing one side at a time, one person should carefully tilt the speaker to one side, and hold it in this position while the other person removes the two wheels and inserts the enclosed spikes into the holes next to the holes for transport wheels.
-
Page 14: Set-Up
SET-UP 4.1. Initial positioning in the room Model X Diamond – Suggested room size 20-50 m When positioning the speakers in your room, if possible, it is desirable to allow for “free” space around the speakers so as to assist in minimizing sound reflections from walls, furniture etc. -
Page 15: Break-In Period
/ writing on the cable. 4.3. Break-in period Although your Estelon speakers had an initial break-in at the factory, due to shipping conditions – pressure/temperature changes that they may have incurred, the speakers will need to go through an additional break-in process before their final set-up. - Page 16 ate again, until the proper position with a balanced, natural sound is found. We suggest that you test, listen, with different music styles so as to avoid specific accents. When changing the position of your speakers please keep in mind that: •...
-
Page 17: Taking Care Of Your Estelon Speakers
Taking care of your Estelon speakers The multicoated finishes applied to Estelon speakers are con- sidered to be amongst the most advanced automotive finishes avail- able. They are extremely strong and durable. In order to assist you in maintaining their stunning appearance, your Estelon loudspeakers come supplied, from the factory, with special cleaning / polishing cloths. -
Page 18: Warranty - Technical Services
Failure to regis- ter the ESTELON product within 30 days from original purchase will result in a warranty period of 90 days from the date of purchase. - Page 19 (available from the factory via phone or email). Upon receipt of defective product, ESTELON agrees to repair the product without charge for parts or labour. The product will then be returned via prepaid, insured freight, with carrier at the sole deter-...
- Page 20 2. Upon clicking the ‘Submit’ button on the Return Authori- zation Form, the ESTELON factory will review it for completeness and return an e-mail to you with an RA number when required (please al- low 2-5 days for a return e-mail).
- Page 21 ESTELON factory. BUT under any and all circumstances customers are welcome to contact our sales department, as listed on our web site www.estelon. com, for service assistance. All non warranty repairs are warranted for one year from the date of return shipment.
- Page 22 ESTELON is a trademark of Alfred & Partners OÜ Alfred & Partners OÜ Tanuma 126 13521 Tallinn Estonia Notes...
