Summary of Contents for Ikegami RM-71F

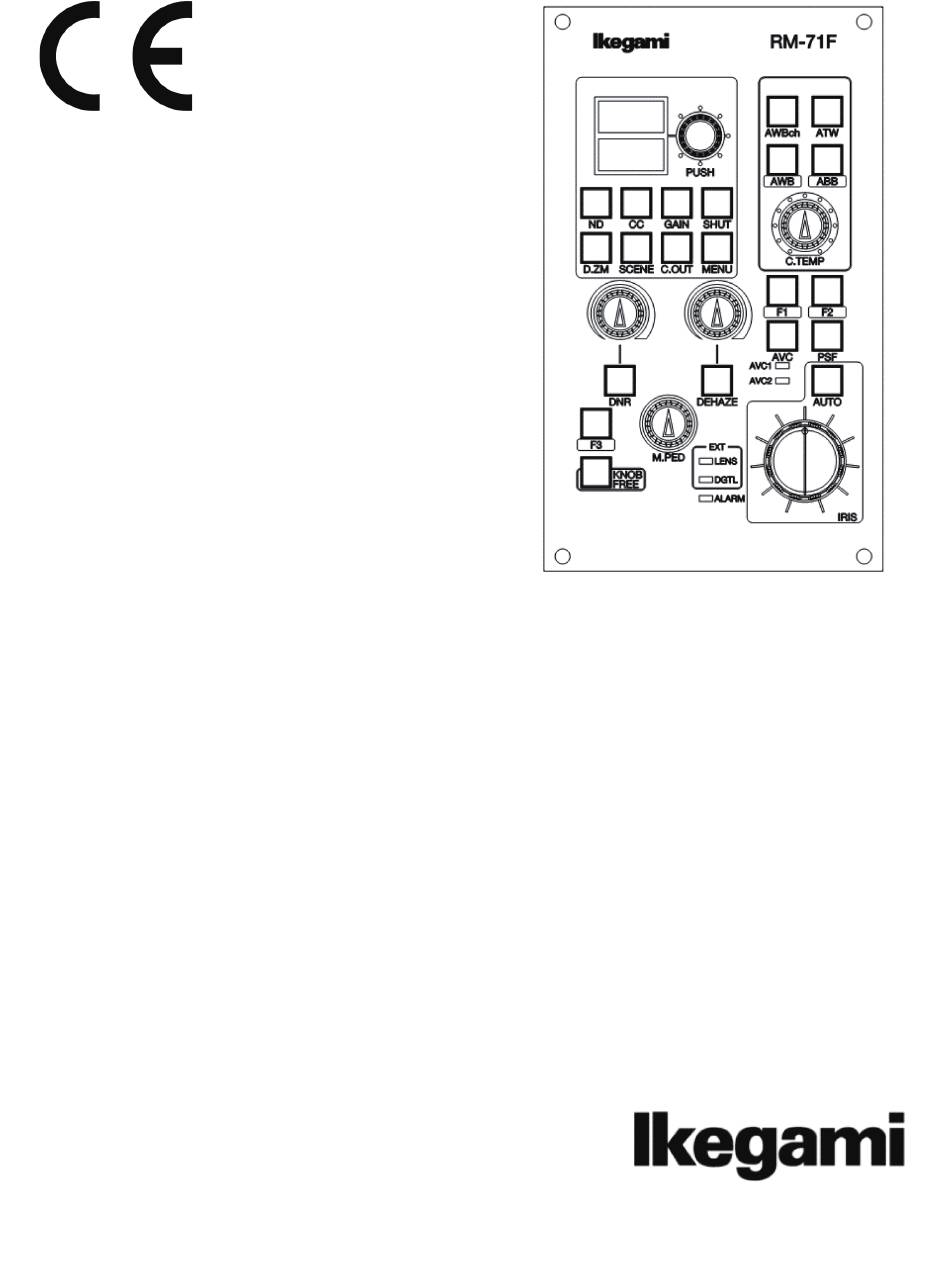

- Page 1 Products conforming to RoHS directive RM-71F Remote Control Panel Operation Manual...
- Page 3 Products conforming to RoHS directive RM-71F Remote Control Panel Operation Manual 202105 1 Edition (U) (E)
- Page 4 Copyright © 2021 Ikegami Tsushinki Co., Ltd We reserve the copyright on the software we create. No part of this publication may be modified or reproduced in any form, or by any means, without prior written permission from Ikegami Tsushinki Co., Ltd.
-
Page 5: Products Conforming To Rohs Directive
PRODUCTS CONFORMING TO RoHS DIRECTIVE PRODUCTS CONFORMING TO RoHS DIRECTIVE Following products described in this manual are products conforming to RoHS directive. • RM-71F Remote Control Panel MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE Work with care about followings for maintenance of products conforming to RoHS directive. -
Page 6: Information To Users
Model Name : RM-71F Responsible Party : Contact Information Ikegami Electronics (U.S.A.) Inc 300 Route 17 South, Mahwah, NJ 07430, USA Tel : 201-368-9171 2. Declaration of conformity The CE mark means that the following products will meet and the Standards EN55032, EN55035. -
Page 7: Safety Precautions
SAFETY PRECAUTIONS SAFETY PRECAUTIONS This manual describes the precautions using various pictorial symbols for you to use the product safely. Please read these precautions thoroughly before use. The symbols and meanings are as follows:... - Page 8 SAFETY PRECAUTIONS...
-
Page 9: How To Read The Operation Manual
HOW TO READ THE OPERATION MANUAL HOW TO READ THE OPERATION MANUAL This page explains general notes on reading the RM-71F Operation Manual, and the symbols and notations used in the manual. Notes on the Manual This manual is written for readers with a basic knowledge of handling a broadcast camera, CCU, etc. -
Page 10: Table Of Contents
RM-71F Operation Control Panel OPERATION MANUAL CONTENTS PRODUCTS CONFORMING TO RoHS DIRECTIVE MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE INFORMATION TO USERS SAFETY PRECAUTIONS HOW TO READ THE OPERATION MANUAL 1. Outline Outline ........................1 Features ........................ 1 External View ......................2 2. - Page 11 2.20 F(User Function)1 switch ..................6 2.21 F(User Function)2 switch ..................6 2.22 F(User Function)3 switch ..................6 2.23 MASTER PED control ................... 6 2.24 KNOB FREE switch ....................6 2.25 EXT indicator ......................6 2.26 ALARM indicator ....................7 2.27 AVC switch ......................
-
Page 12: Outline 1.1 Outline
1. Outline Outline This control panel is customized for Helicopter-Mountable 4K-Compatible Camera (UHL-F4000). As this control panel is specialized for helicopters, it is compact and lightweight. In addition, its overall usability including newly equipped functions for the UHL-F4000 is improved by reviewing the user interface of the existing control panel, RM-70F. -
Page 13: External View
External View... -
Page 14: Name And Function Of Each Part
2. Name and Function of Each Part This section describes the name and function of various parts. AWBch switch DEHAZE control 2.17 ATW switch DNR switch 2.18 AWB switch DEHAZE switch 2.19 ABB switch F(User Function)1 switch 2.20 C.TEMP control F(User Function)2 switch 2.21 Character indicator... -
Page 15: Awbch Switch
AWBch switch Switches the memory channel of AWB (Auto White Balance). When switching the channel, use the character indicator and the rotary switch. ATW switch Executes the ATW function. AWB switch It performs AWB (Auto White Balance). When AWB is completed, the lamp lights off. When AWB fails, the lamp blinks. After checking the failed state, press the blinking switch again to reset the failed state. -
Page 16: Gain Switch
2.10 GAIN switch Switches the GAIN setting. To select gain setting. Use the character indicator and the rotary switch. 2.11 SHUT switch Switches the SHUTTER speed. To select shutter speed. Use the character indicator and the rotary switch. 2.12 D.ZM switch Switches the DIGITAL ZOOM control ON/OFF. -
Page 17: Dehaze Control
2.17 DEHAZE control Controls the level of the dehaze function. 2.18 DNR switch Turns ON/OFF the digital noise reducer function. 2.19 DEHAZE switch Turns ON/OFF the dehaze function. 2.20 F(User Function)1 switch The On/Off status of various functions can be controlled by these user function switches. -
Page 18: Alarm Indicator
2.26 ALARM indicator It blinks when alarm is detected by the self-diagnosis function. 2.27 AVC switch Press this switch to switch the AVC function as shown below. AVC1 AVC2 (AVC3 AVC4 The actions within the parenthesis () depend on the setting of the panel configuration. -
Page 19: Switch Customize Function
3. F. Switch The RM-71F allows the user to assign the function of two switches, the F1 and F2 switches. Item indication Upper section: Allocated switch (F1, F2 or F3) Lower section: Allocated function Turning: Selecting function for allocation Pressing: Ending the F. switch... -
Page 20: List Of Switch Functions
When the F. switch is pressed in the F. switch customize mode, turning the allocated function on and off is possible. Pressing the rotary switch will allocate the function selected in Step 3, and it will end the F. switch customize mode. List of Switch Functions Indicated Item... -
Page 21: Vr Clear Operation
3.2.1 VR Clear Operation Allocating "VR Clear" to the F. switch will clear the data that the user adjusted. -
Page 22: Menu Operation From Rm
4. Menu Operation from RM The menu of the camera head can be operated with the MENU switch. Camera Menu Operation [Menu Operation] Rotating: Up/Down avigation Pressing: Push Set to enter sub-menu/change setting Upper section: MENU Lower section: SEL Menu screen When the MENU switch is pressed for approximately 2 seconds, the menu operation mode starts, and the menu screen of the camera is displayed. -
Page 23: Selection And Setting Of Rotary Switch Functions
5. Rotary Switch The rotary switch enables various functions to be selected and set. Selection and Setting of Rotary Switch Functions Item indication Turning: Selection of items and parameters Pressing: Selection of items and parameters <Selection and Operation with Rotary SW> Turn the rotary switch to select the item to be controlled in the upper section of the item indicator. -
Page 24: List Of Rotary Switch Functions
List of Rotary Switch Functions Indicate Item Function Remarks d Letters Select 1, 2, 3, 4 Select A, B, C, D -6, -3, 0, +3, +6, +9, +12, +18, +24, +30, +36, Step Gain Gain Select +42, +48, +54, +60, +66, +72 Step Gamma Gamm Select... -
Page 25: Scene File Setting Method
SCENE FILE Setting Method With the rotary switch scene files 1 to 8 can be selected. Pressing the SCENE switch enables saving and loading of the scene file which has been selected. [SCENE FILE saving method] Press the SCENE switch to select "SCENE" at the upper section of the indicator. -
Page 26: Panel Configuration Menu
6. Panel Configuration The RM-71F has many functions, and its operation and settings can be setup to meet the user’s requirements. Panel Configuration Menu Item indication When pressed simultaneously, panel configuration is indicated. Press the rotary switch and the Knob Free switch simultaneously for approximately 2 seconds. -
Page 27: List Of Panel Configuration Settings
It is possible that the lens iris is not at the OPEN/CLOSE end when the RM iris is at the OPEN/CLOSE end, even under full range operation. The RM-71F has a function to recognize the OPEN/CLOSE end positions of the iris in the panel configuration menu, and correct the difference with the camera head lens iris value. - Page 28 [IRIS ADJUST OPEN/CLOSE Data Set] Item indication Upper section: OPEN data (POSITION DATA1) Lower section: CLOSE data (POSITION DATA2) Pressing operation: Confirm the IRIS OPEN/CLOSE position The IRIS OPEN/CLOSE Positions are set. IRIS ADJUST Screen Item indication Upper section: EXE? Lower section: NO/YES Rotating: Selection of NO/YES Pressing: Push set to enter...
-
Page 29: Limit Functions (Control Depth)
When the rotary switch is rotated and operated, Yes and No can be switched. To finalize the setting, select "Yes." To cancel, select "No." Then, press the rotary switch. When "YES" is selected, execute the IRIS ADJUST setting. The panel restarts. When "No"... -
Page 30: List Of Limited Functions For Rotary Switch
6.4.2 List of Limited Functions for Rotary Switch I I tem F F unction M M ode Select BASIC Select BASIC Step Gain Select BASIC Step Gamma Select BASIC Gamma Mode Select BLK STR/PRS Select BASIC AWB ch Select BASIC Shutter Mode Select BASIC... -
Page 31: Specification
7. Specification Rating Power supply +12V (+9V to 18V) Consumed power Max. cable length 300m Operation temperature 0°C to +45°C Storage temperature -25°C to +60°C Operation humidity range 30% to 90% (no condensation) Outside dimension 90.7×151×63mm (Excluding the mounting part) Applicable standard Safety standard CE / FCC... -
Page 32: Pin Function Of External Connector
Pin Function of External Connector 7.4.1 COMMAND Connector SEAT Connector to input/output various signals between BS/CCU and CP HUB. Main body side: EPRC05-R8M Cable side: EPRC05-199P9-8F (8-pin female plug) or equivalent Insert side External Pin No. Name Function Direction Interface Serial command from BS/CCU to OCP HED (+) Data input (+) -
Page 33: Changing Information
Changing Information... - Page 35 RM-71F Remote Control Panel Operation Manual 1st Edition: Issued in MAY. 2021 by Ikegami Tsushinki Co., Ltd. All or no part of this document may be photocopied or reproduced in any form without the prior written consent of ABC Inc.
- Page 38 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone : +81-(0)3-5700-4114 Fax : +81-(0)3-5748-2200 E-Mail : info_e@ikegami.co.jp : https://www.ikegami.co.jp/en/ Ikegami Electronics (U.S.A.),Inc. 300 Route 17 South, Mahwah, New Jersey 07430, U.S.A. Phone : +1-201-368-9171 Fax : +1-201-569-1626 E-Mall : engineering@ikegami.com, service@ikegami.com...
