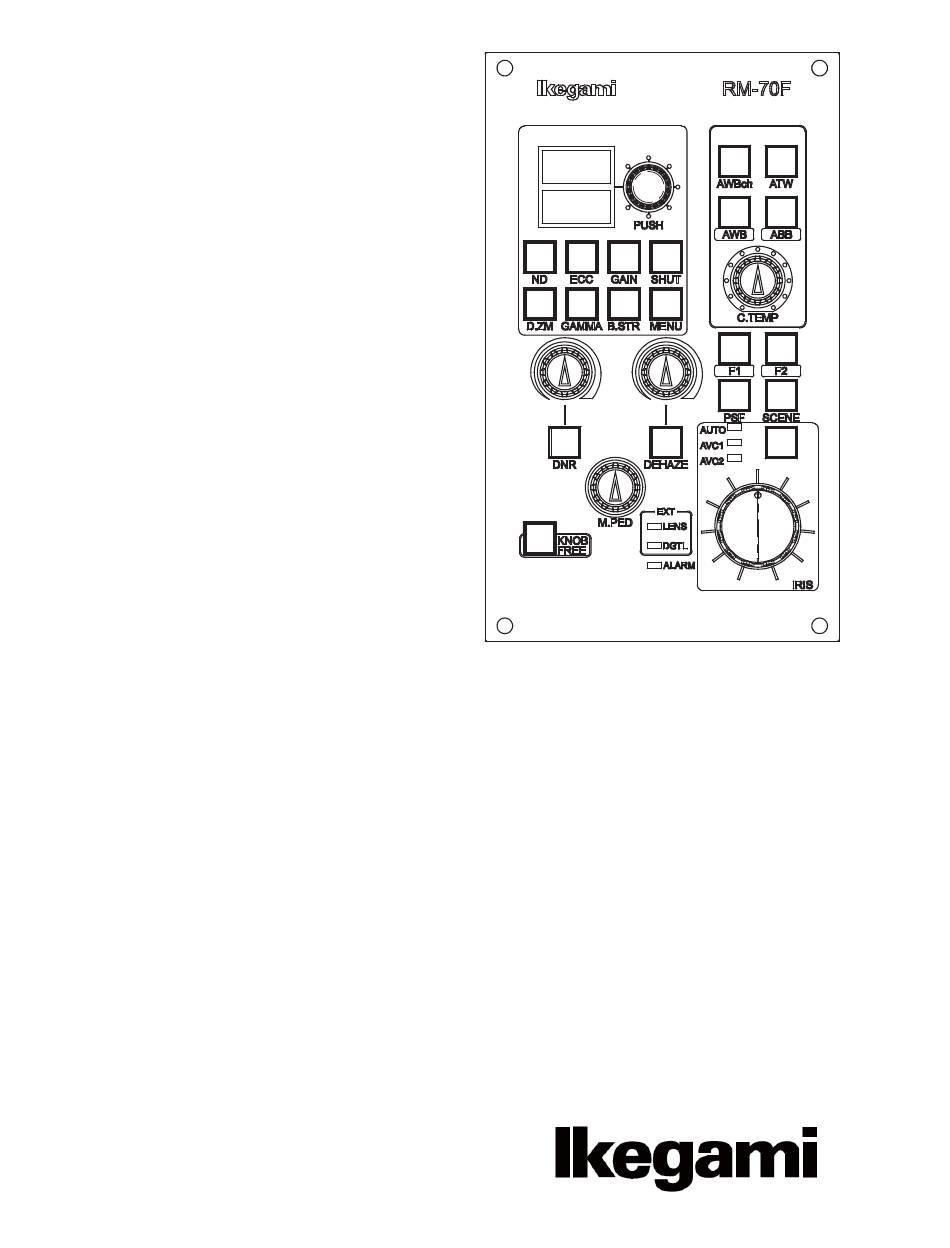

  • Page 1 Products conforming to RoHS directive RM-70F Remote Control Panel Operation Manual...
  • Page 3 Products conforming to RoHS directive RM-70F Remote Control Panel Operation Manual 1610 1 Edition (U) (E)
  • Page 4 Copyright © 2016 Ikegami Tsushinki Co., Ltd We reserve the copyright on the software we create. No part of this publication may be modified or reproduced in any form, or by any means, without prior written permission from Ikegami Tsushinki Co., Ltd.
  • Page 5 PRODUCTS CONFORMING TO RoHS DIRECTIVE Following products described in this manual are products conforming to RoHS directive. • RM-70F Remote Control Panel Products conforming to RoHS directive include products that do not contain specified hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) in electrical and electronic equipment excluding following exemption applications based on the EU directive (Directive 2002/95/EC).
  • Page 6 PRODUCTS CONFORMING TO RoHS DIRECTIVE 8. Cadmium plating except for applications banned under Directive 91/338/EEC amending Directive 76/769/EEC relating to restrictions on the marketing and use of certain dangerous substances and preparations 9. Hexavalent chromium as an anti-corrosion of the carbon steel cooling system in absorption refrigerators 10.

  • Page 7: Maintenance Of Products Conforming To Rohs Directive

    MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE Work with care about followings for maintenance of products conforming to RoHS directive. 1. Identification · For products conforming to RoHS directive, the letter “E” is appended at the end of the serial number on the label.
  • Page 8 INFORMATION TO THE USER INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class A digital device, against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 9 SAFETY PRECAUTIONS SAFETY PRECAUTIONS This manual describes the precautions using various pictorial symbols for you to use the product safely. Please read these precautions thoroughly before use. The symbols and meanings are as follows:...
  • Page 10 SAFETY PRECAUTIONS...

  • Page 11: How To Read The Operation Manual

    HOW TO READ THE OPERATION MANUAL HOW TO READ THE OPERATION MANUAL This page explains general notes on reading the RM-70F Operation Manual, and the symbols and notations used in the manual. Notes on the Manual This manual is written for readers with a basic knowledge of handling a broadcast camera, CCU, etc.

  • Page 12: Table Of Contents

    RM-70F Operation Control Panel OPERATION MANUAL CONTENTS MAINTENANCE OF PRODUCTS CONFORMING TO RoHS DIRECTIVE ................7 HOW TO READ THE OPERATION MANUAL ......1 1. Outline .................. 1 1.1 Outline ....................1 1.2 Features....................1 1.3 External View ..................2 2.
  • Page 13 2.23 DEHAZE Switch ................. 6 2.24 AUTO Indicator .................. 6 2.25 AVC1 Indicator ................... 6 2.26 AVC2 Indicator ................... 7 2.27 IRIS Mode selector Switch ............... 7 2.28 IRIS Control ..................7 2.29 MASTER PED Control ............... 7 2.30 KNOB FREE Switch ................7 2.31 EXT Indicator ..................

  • Page 14: Outline

    1. Outline 1.1 Outline The RM-70F is an operation control panel that is used by connection to a BS (Base Station) or CCU (Camera Control Unit) or Camera Head. 1.2 Features Knob Free function is adopted The RM-70F adopts the knob free function which combines the advantages of absolute control of potentiometers with the advantages of relative control of rotary encoders.

  • Page 15: External View

    1.3 External View...

  • Page 16: Name And Function Of Each Part

    2. Name and Function of Each Part This section describes the name and function of various parts.

  • Page 17: Awbch Switch

    2.1 AWBch Switch Switches the memory channel of AWB (Auto White Balance). When switching the channel, use the character indicator and the rotary switch. 2.2 ATW Switch Executes the ATW function. 2.3 AWB Switch It performs AWB (Auto White Balance). When AWB is completed, the lamp lights off.

  • Page 18: Scene File Switch

    2.9 SCENE File Switch It saves and loads the scene files 1 to 8. When selecting the scene files, the character indicator and the rotary switch are used. Reference : Refer to "5. Rotary Switch" for the method to save the scene files. The scene file ON state is indicated when the switch is lit on.

  • Page 19: D.zm Switch

    2.16 D.ZM Switch Switches the DIGITAL ZOOM control ON/OFF. To select magnification. Use the character indicator and the rotary switch. 2.17 GAMMA Switch Switches the GAMMA level to control ON/OFF. To select the Gamma level. Use the character indicator and the rotary switch. 2.18 B.STR Switch Switches the BLACK STRETCH level to control ON/OFF.

  • Page 20: Avc2 Indicator

    2.26 AVC2 Indicator Lights up in AVC mode 2, and blinks in AVC mode 4. 2.27 IRIS Mode selector Switch When you press the switch, the IRIS mode will be switched as follows. AUTO IRIS => AVC1 => AVC2 => (AVC3 => AVC4 =>) AUTO IRIS Operation in () depends on the setting.

  • Page 21: Switch

    F. Switch The RM-70F allows the user to assign the function of two switches, the F1 and F2 switches. 3.1 F. Switch Customize Function When the F. switch (F1 or F2) is pressed for approximately 2 seconds while the KNOB FREE switch is also pressed, the F. switch customize mode starts.

  • Page 22: List Of Switch Functions

    When turning the rotary switch, functions to be allocated to the F. switch can be selected. * As soon as a function is allocated to the F switch, the state of the allocated function is reflected on the LED. When the F. switch is pressed in the F. switch customize mode, turning the allocated function on and off is possible.

  • Page 23: Menu Operation From Rm

    Menu Operation from RM The menu of the camera head can be operated with the MENU switch. When the MENU switch is pressed for approximately 2 seconds, the menu operation mode starts, and the menu screen of the camera is displayed. As the initial state of the menu operation mode, "MENU"...

  • Page 24: Rotary Switch

    5. Rotary Switch The rotary switch enables various functions to be selected and set. 5.1 Selection and Setting of Rotary Switch Functions <Selection and Operation with Rotary SW> Turn the rotary switch to select the item to be controlled in the upper section of the item indicator.

  • Page 25: List Of Rotary Switch Functions

    5.2 List of Rotary Switch Functions Indicated Item Function Remarks Letters Select 1,2,3,4 Select A,B,C,D Step Gain Gain Select -6, -3, 0 0 , +3, +6, +9, +12, +18, +24, +30, +36, +42, +48, +54, +60, +66, +72, Step Gamma Gamm Select OFF, 0 0 .45, 0.40, 0.35 Gamma Mode...

  • Page 26: Scene File Setting Method

    5.3 SCENE FILE Setting Method With the rotary switch scene files 1 to 8 can be selected. Pressing the SCENE switch enables saving and loading of the scene file which has been selected. [SCENE FILE saving method] Turn the rotary switch to select "SCENE" at the upper section of the indicator.

  • Page 27: Panel Configuration

    6. Panel Configuration The RM-70F has many functions, and its operation and settings can be setup to meet the user’s requirements. 6.1 Panel Configuration Menu Press the rotary switch and the Knob Free switch simultaneously for approximately 2 seconds. After two seconds, the upper section of the item indication area indicates the STR number, and the lower section indicates the checksum of the software version.

  • Page 28: List Of Panel Configuration Settings

    Press the rotary switch and the setting of the selected item starts blinking. Next the setting can be changed by turning the rotary switch. When the desired setting is displayed, push the rotary switch. Exit the Panel Configuration menu by selecting Exit and pressing the rotary switch.

  • Page 29: Iris Position Adjustment Function

    It is possible that the lens iris is not at the OPEN/CLOSE end when the RM iris is at the OPEN/CLOSE end, even under full range operation. The RM-70F has a function to recognize the OPEN/CLOSE end positions of the iris in the panel configuration menu, and correct the difference with the camera head lens iris value.
  • Page 30 Select "ADJUST MODE" under the panel configuration menu. On the character indicator, "POS1" is indicated at the upper section and "POS2" at the lower section. Align the IRIS position to the OPEN end and press the rotary switch. ("POS1" indicated at the upper section of the character indicator changes to "OK.") Align the IRIS position to the CLOSE end and press the rotary switch.

  • Page 31: Limit Functions (Control Depth)

    6.4 Limit Functions (Control Depth) By selecting the operation from two modes, [COMPLETE or BASIC] under "USER MODE" of the panel configuration menu, the selection for the F1 and F2 switches, as well as, the selection for the rotary switch can be limited. All functions are available in the COMPLETE(indication: COMP) mode, and limited functions are available in the BASIC(indication: BSIC) mode as indicated in the lists "6.4.1 and 6.4.2".

  • Page 32: List Of Limited Functions For Rotary Switch

    6.4.2 List of Limited Functions for Rotary Switch Item Function Mode Select BASIC Select BASIC Step Gain Select BASIC Step Gamma Select BASIC Gamma Mode Select BLK STR/PRS Select BSIC AWB ch Select BSIC Shutter Mode Select BSIC Shutter Speed Select BSIC Digital Zoom...

  • Page 33: Specification

    7. Specification 7.1 Rating Power supply +12V (+9V to 18V) Consumed power Max. cable length 300m (CP cable) 100 (LAN cable) Operation temperature 0°C to +45°C Storage temperature -25°C to +60°C Operation humidity range 30% to 90% (no condensation)

  • Page 34: Pin Function Of External Connector

    7.2 Pin Function of External Connector COMMAND Connector 7.2.1 SEAT Connector to input/output various signals between BS/CCU and CP HUB. Main body side: PRC05-R8M Cable side: PRC05-199P9-8F (8-pin female plug) or equivalent Insert side External Pin No. Name Function Direction Interface Serial command from BS/CCU to OCP HED (+)

  • Page 35: Changing Information

    8. Changing Information...
  • Page 39 RM-70F REMOTE CONTROL PANEL Operation Manual 1st Edition: Issued in OCT. 2016 by Ikegami Tsushinki Co., Ltd. All or no part of this document may be photocopied or reproduced in any form without the prior written consent of ABC Inc.
  • Page 40 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146-8567, Japan Phone : +81-(0)3-5700-4114 Fax : +81-(0)3-5748-2200 E-Mail : info_e@ikegami.co.jp : http://www.ikegami.co.jp/en/ Ikegami Electronics (U.S.A.),Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone : +1-201-368-9171 Fax : +1-201-569-1626 E-Mall : engineering@ikegami.com, service@ikegami.com : http://www.ikegami.com...
