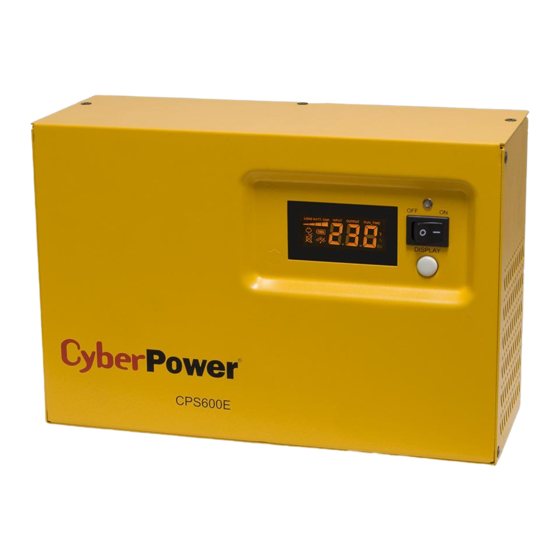

CPS600E-IN
User's Manual
K01-0000291-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPS600E-IN and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberPower CPS600E-IN

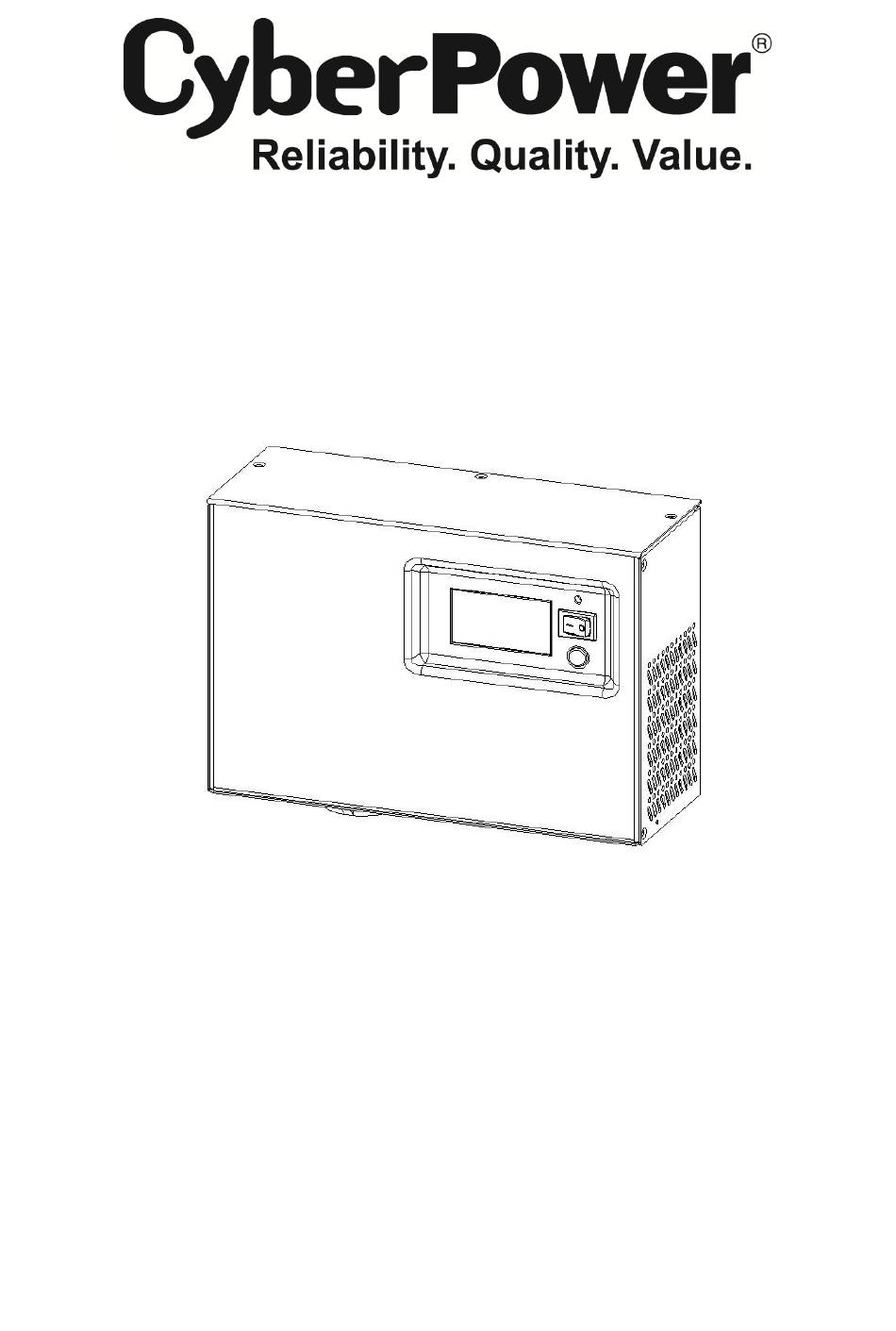

  • Page 1 CPS600E-IN User’s Manual K01-0000291-01...
  • Page 2: Safety And Emc Instructions

    SAFETY AND EMC INSTRUCTIONS This manual contains important safety instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your Emergency Power System (EPS). CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free of conductive contaminants.
  • Page 3: Installing Your Eps

    UPS unit’s rated capacity (600VA/420W for CPS600E-IN). If the rated capacities of the unit are exceeded, an overload condition may occur and cause the UPS unit to shut down or the input fuse to blow. For more information, refer to the “Troubleshooting”...
  • Page 4: Basic Operation

    BASIC OPERATION DESCRIPTION 1. Power Switch Used as the master on/off switch for equipment connected to the AC outlet. 2. Power On Indicator This LED is above the power switch. It illuminates when the utility condition is normal and the AC outlet is providing power, free of surges and spikes.
  • Page 5: Replacing The Battery

    REPLACING THE BATTERY CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Battery service should only be done by qualified professionals. CAUTION! Use only the specified type and number of external batteries. Please see the technical specifications for replacement batteries. CAUTION! The battery may present a risk of electrical shock.
  • Page 6: Eps Status Inquiry And Functions Setup

    SILENT MODE Icon: This icon appearing indicates that the buzzer does not beep in the silent mode until the low battery capacity. OVER LOAD Icon: This icon appearing and an alarm activated indicate that the overload condition. To relieve the overload, unplug your equipment from the EPS outlets until the icon disappears and the alarm stops being activated.
  • Page 7: Fault Warning Display And Alarm

    Static Frequency Tolerance: There are 6 settings (1,2,4,6,8,10%), and the default setting is +/-6%. Function description: The settings may be adjusted to the quality of the electricity in use. Slew Rate: Also called Dynamic Frequency Tolerance. There are 5 different settings (0.25,0.5,1,2,4 Hz/Sec).
  • Page 8 Low Battery Protection: The EPS output will be interrupted. After 30 seconds, the machine shuts down and the LCD display output voltage is zero. The following table shows each corresponding warning message on the LCD display and the alarm reacts during the machine shut down Condition Solution LCD Warning...
  • Page 9: Troubleshooting

    The unit must be connected to a 220/230V The UPS will not turn on. connected to an AC outlet. outlet. The battery is worn Contact CyberPower Systems about out. replacement batteries. Contact CyberPower Systems via phone or Mechanical problem. visit our website.
  • Page 10: Technical Specifications

    TECHNICAL SPECIFICATIONS Model CPS600E-IN Capacity (VA) 600VA Capacity (Watts) 420W Operation Technology AVR ( Single Boost & Single Buck ) AC Input Input Voltage Range 170Vac – 270Vac Input Frequency Range 50 / 60 Hz +/- 5Hz AC Output Number of Phase...
  • Page 11 All rights reserved. Reproduction without permission is prohibited.
