HOW TO DETERMINE THE POWER REQUIREMENTS OF YOUR EQUIPMENT
1.
Make sure that the total Volt-Amp (VA) requirements of your computer, monitor and peripheral equipment does
not exceed 1440VA.
2.
Insure that the equipment plugged into the three battery power-supplied outlets does not exceed the UPS unit's
rated capacity (1000VA/500W for CPS1000AVR). If rated unit capacities are exceeded, an overload
condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.
3.
If the power requirements of your equipment are listed in units other than Volt-Amps (VA), convert Watts (W) or
Amps (A) into VA by doing the calculations below. Note: The below equation only calculates the maximum
amount of VA that the equipment can use, not what is typically used by the equipment at any one time. Users
should expect usage requirements to be approximately 60% of below value.
TO ESTIMATE POWER REQUIREMENTS:
Watts (W) x 1.82 =
Add the totals up for all pieces of equipment and multiply this total by .6 to calculate actual requirements There are
many factors that can affect the amount of power that your computer system will require. The total load that you will
be placing on the battery-powered outlets should not exceed 80% of the unit's capacity.
INSPECTION
The box should contain the following:
(1) PowerPanel Plus™ software (floppy disk); (1) serial interface cable (DB-9); (1) serial to USB adapter cable; (1) telephone
communication cable; (1) user manual; (1) warranty registration card; (1) UPS unit.
DESCRIPTION

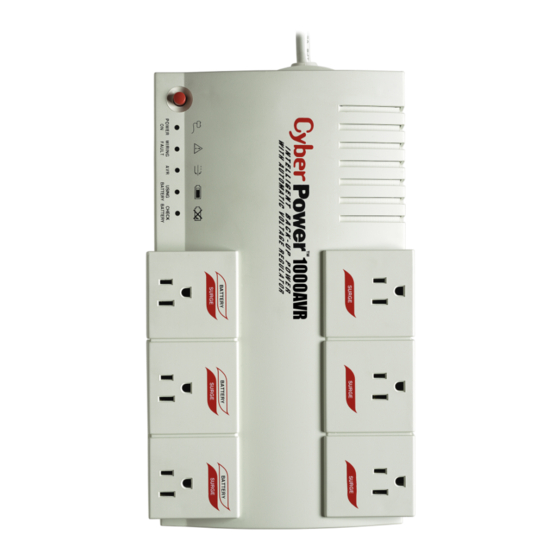

1. Battery Backup and Surge Protection Outlets
Provides three battery-supplied outlets with
Automatic Voltage Regulation for consistent output
power to connected equipment.
2. "Always-On" Surge Protection Outlets
Provides three surge-protected outlets to protect
connected equipment against surges and spikes.
3. All outlets Designed for AC Adapters
Allows six AC power adapter blocks to be plugged
into the UPS without making adjacent outlets
inaccessible.
4. Resettable Circuit Breaker
Located on the side of the UPS, the circuit breaker
provides circuit overload and fault protection.
Under normal operating conditions, the circuit
breaker is depressed.
5. Power Switch
Can be used as the master on/off switch for
computer equipment connected to the battery power
supplied outlets.
6. Power On Indicator
This LED is illuminated when the utility condition is
normal and the UPS outlets are providing "clean"
power, free of surges and spikes.
HARDWARE INSTALLATION GUIDE
Guaranteed Uninterruptible Power System
VA or
Amps (A) x 120 =
7. Electrical Wiring Fault Indicator
This LED indicator will illuminate to warn the user
that a wiring problem exists with the AC outlet.
If this LED is illuminated, user is advised to
unplug all electrical equipment from the outlet and
have an electrician check the outlet to insure
proper wiring.
8. AVR Indicator
This LED indicates that the UPS is operating in
automatic voltage regulation mode.
9. Using Battery Indicator
This illuminates during a utility failure, indicating
that the battery is supplying power to the battery
power supplied outlets.
10. Check Battery
This illuminates indicating a weak battery. If the
indicator is still illuminated after allowing the unit
to charge for 12 hours, replace the battery
according to the instructions in the Replacing the
Battery section of this manual.
11. Serial Port to PC
This port allows connection and
communication from the DB-9 serial or USB port
on the computer to the UPS unit. The UPS
communicates its status to the PowerPanel
Plus™ software. This interface is also
compatible with the UPS service provided by
Windows NT, Windows 2000 and Windows XP.
12. Communication Protection Ports
Communication protection ports will protect any
standard modem, fax, or telephone line.

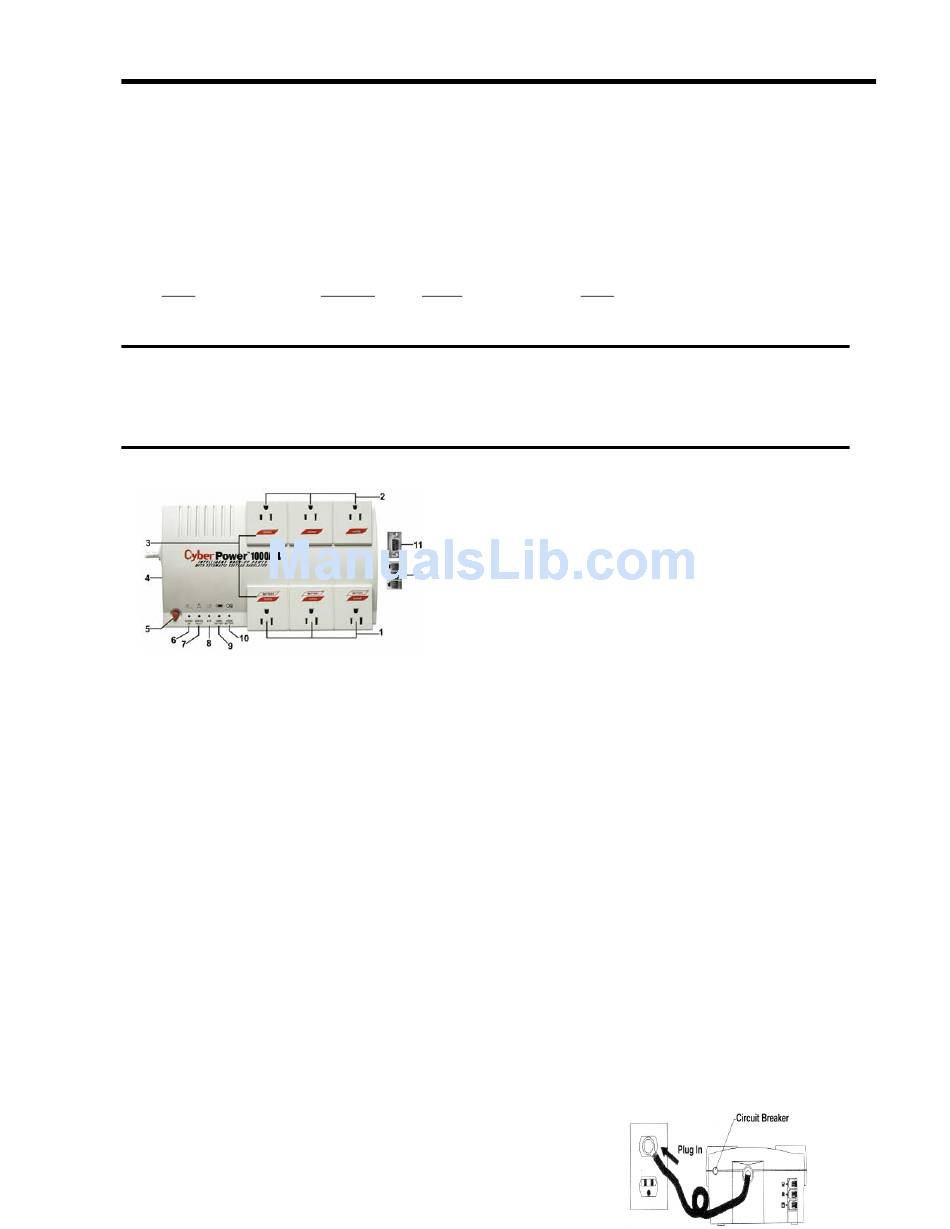

CPS1000AVR
VA
Advertisement
Table of Contents
Related Manuals for CyberPower CPS1000AVR
Summary of Contents for CyberPower CPS1000AVR
- Page 1 Insure that the equipment plugged into the three battery power-supplied outlets does not exceed the UPS unit’s rated capacity (1000VA/500W for CPS1000AVR). If rated unit capacities are exceeded, an overload condition may occur and cause the UPS unit to shut down or the circuit breaker to trip.
- Page 2 Your new UPS may be used immediately upon receipt. However, recharging the battery for at least four hours is recommended to insure that the battery’s maximum charge capacity is achieved. Charge loss may occur during shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge in both the on, as well as the off, position.
-
Page 3: For Windows 95/98/Me
CPS1000AVR Guaranteed Uninterruptible Power System FOR WINDOWS 95/98/Me Turn the UPS off and unplug it. Connect the serial interface or USB adapter cable to the UPS and an open serial or USB port on the computer. (Note: You must one of the cables that was supplied with the unit). - Page 4 Windows will find New Hardware. Insert the software disk into the floppy drive. Follow the on-screen instructions. Once the software is installed, remove the floppy disk and restart your computer. When your computer restarts, the PowerPanel Plus™ software will appear on your screen for a few seconds, and then minimize.
- Page 5 Guaranteed Uninterruptible Power System Setup Button: Click the setup button to open the Setup Window. Model: This shows the model of the CyberPower UPS that is being used. Version: This shows the hardware version. Status Bar: The area display messages about the status of the software.
- Page 6 Default: Click this button to return the software to original factory settings. Cancel: This button exits the window without saving changes. OK: This button exits the window and saves changes. UPS Communication Media: This shows the COM or USB port that the UPS is using. The port assigned to the UPS needs to be used exclusively for the PowerPanel Plus™...
- Page 7 CPS1000AVR Guaranteed Uninterruptible Power System Clear: Clears the selected log. Cancel: Exits the screen without saving any changes. OK: Exits the screen and saves any changes. Data Record Option Button: When this option is selected, the log will display a record of the items that are shown in the main window.
-
Page 8: Replacing The Battery
As the battery discharges, the unit will beep more rapidly, indicating that the battery is nearing discharge. Once the test is complete, plug the UPS back in to the AC outlet and start your computer. Please allow 4 hours for the UPS to recharge before attempting another self-test. -
Page 9: Definitions For Illuminated Led Indicators
On/Fla None Weak Battery- Recharge the battery for at least sh/Off 8 hours. If Check Battery is illuminated contact CyberPower Systems for battery replacement information. Surge Protection Malfunction- Lightning induced power line surge has damaged the surge-protect function. Please contact... -
Page 10: Troubleshooting
Battery not fully charged. Recharge the battery by leaving the UPS plugged in. expected runtime. Battery is slightly worn out. Contact CyberPower Systems about replacement batteries at tech@cyberpowersystems.com The on/off switch is designed to prevent Turn the UPS off. Wait 10 seconds and then turn the UPS on. - Page 11 CyberPower will inspect and examine the Product within ten (10) days of receipt. If the Product is not as warranted, CyberPower will repair or replace the Product and return it to you at CyberPower’s expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
- Page 12 Implied Warranty; (b) the Limited Warranty requirements have been met, and; (c) none of the limitations or exclusions on warranty coverage apply, CyberPower will (as CyberPower elects, as permitted by law), repair, replace, or pay the Agreed Damage Amount (defined below) for, the item(s) of your electronic equipment directly and properly connected to the product (the “Connected Equipment”) if that Connected Equipment is (x) damaged...
- Page 13 WARRANTY AND THE POWER CONTROL GUARANTEE The Limited Warranty and the Power Control Guarantee are the only and the exclusive express warranty of CyberPower with respect to the Product. This exclusion of other express warranties applies to written and oral express warranties. Any Implied Warranty of Merchantability or for Fitness for a Particular Purpose, if applicable to the Product, is limited in duration to the period of ownership by the Initial Customer.
