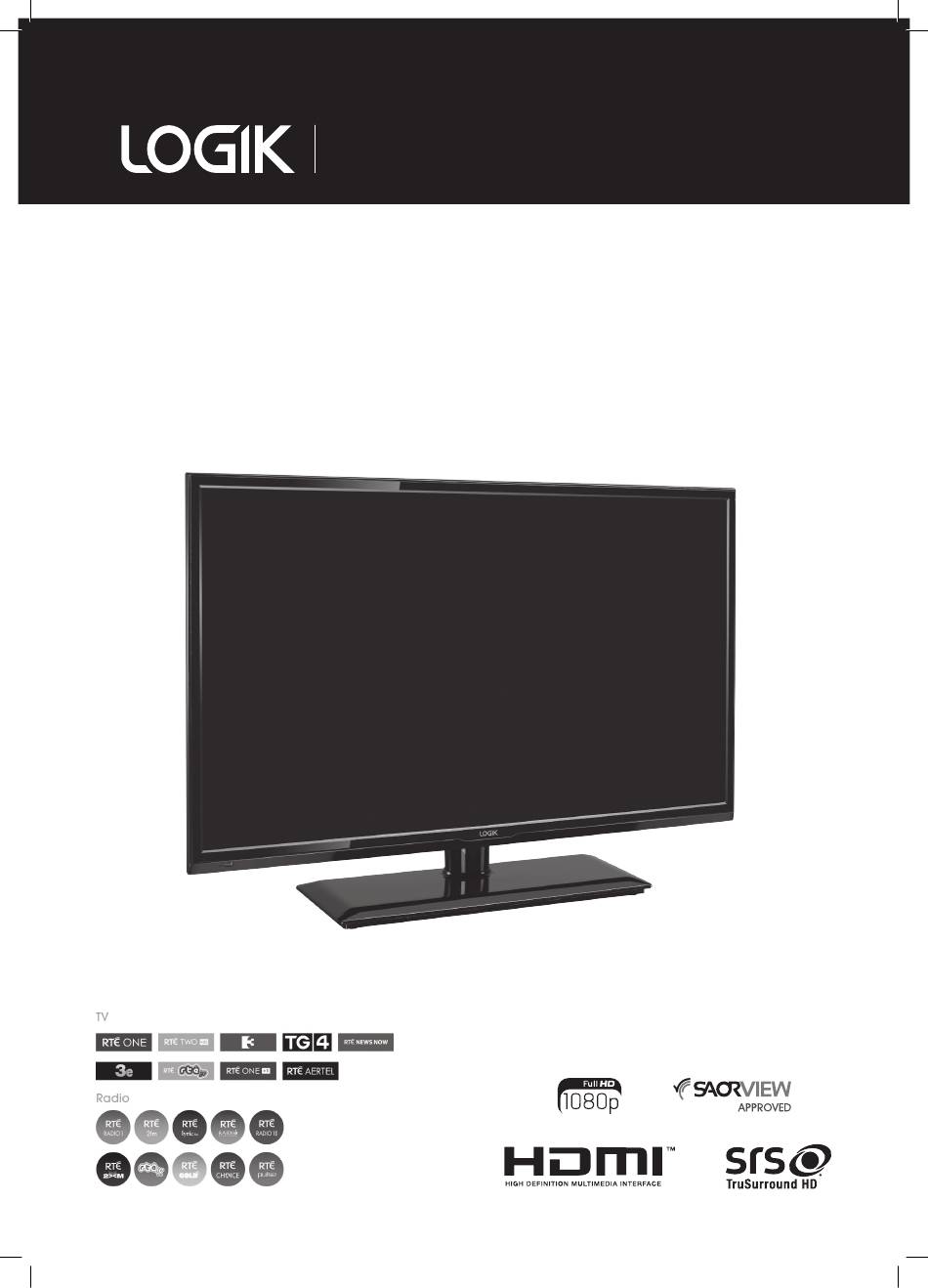

- Page 1 Instruction Manual 24” Full HD LED TV L24FE13I L24FE13I_IB.indd 1 24/03/2014 15:02...
- Page 2 WE KNOWHOW TO HELP YOU WITH YOUR TV We want you to be able to enjoy your new TV for many years. From getting it home and setting it up, to helping you get the most out of your new purchase. And in the unlikely event your product lets you down, we can get it working again in no time.
-
Page 3: Table Of Contents
Contents Safety Warnings ....................................5 Unpacking the TV ....................................7 Installing / Removing the Base Stand ..............................8 Mounting the TV to a Wall .......................................8 Front / Right Side View and Controls ...............................9 Rear View and Sockets ..................................10 Installing Batteries in the Remote Control ............................ 11 Remote Control Operation Range .............................. - Page 4 Media mode - Viewing Photos ................................33 Media mode - Listening to Music ..............................34 Media mode - Viewing Movies ................................35 Media mode - Viewing eBooks ...............................36 Maintenance .....................................36 Hints and Tips ....................................37 Specifications ....................................38 L24FE13I_IB.indd 4 24/03/2014 15:02...
-
Page 5: Safety Warnings
Safety Warnings Safety Warnings Safety • Read all the instructions carefully before using the unit and keep them for future reference. • Always disconnect the unit from the mains supply before connecting / disconnecting other devices or • Retain the manual. If you pass the unit onto a third moving the unit. - Page 6 Service Standby • To reduce the risk of electric shock, do not remove • button on the remote control does not switch off the unit completely. The unit will continue to draw screws. The unit does not contain any user-serviceable parts.
-
Page 7: Unpacking The Tv

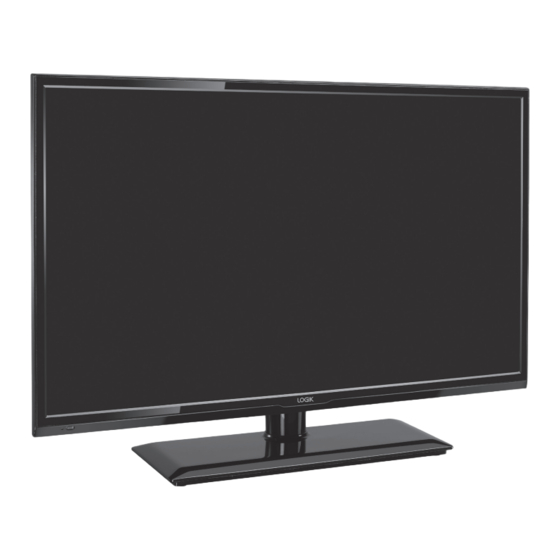

Preparation Thank you for purchasing your new Logik 24” Full HD LED TV. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features. -
Page 8: Installing / Removing The Base Stand
Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because the screen could crack. -
Page 9: Front / Right Side View And Controls
Front / Right Side View and Controls Item Description Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby POWER LED mode. The LED will illuminate blue and then blink red and blue confirming that a timer recording programme has started in the standby mode. -
Page 10: Rear View And Sockets
Rear View and Sockets VGA (PC) COAX VGA (PC) Audio In Audio Out DC IN SCART CI CARD IN HDMI AERIAL IN YPbPr AV IN Item Description DC IN Connects the mains adapter to the mains socket. Connects to the headphones VGA (PC) / Connects to a computer or other devices with a VGA interface. -
Page 11: Installing Batteries In The Remote Control
Installing Batteries in the Remote Control 1. Press and lift the back cover to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and ( - ) ends of the batteries with the (+) and ( - ) ends indicated in the battery compartment. -
Page 12: Remote Control
Remote Control Switch the TV between on and standby mode. MUTE Mute and restore your TV sound. 3. 0-9 Number Button • Press to select a programme. (DTV / RADIO mode) 4. -/-- Feature not available. RECALL Return to the previous viewing channel. (DTV mode) 6. - Page 13 19. SLEEP Set the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min. 20. ASPECT Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom / Smart Zoom / Subtitle. 21. AUDIO •...
-
Page 14: Turning The Tv On For The First Time
Turning the TV On for the First Time 1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the AERIAL IN socket at the rear right bottom view of your TV. 2. -
Page 15: Connecting An Analogue Device
The first time you turn the TV on, the above menu will appear on the screen. Auto Installation - Setup 1 - Please ensure the aerial is plugged in. Country: Ireland 1. Press the buttons to select your desired country. Austria Please ensure your The default country is Ireland. -
Page 16: Channel Selection
Channel Selection Press the CH + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel. • Alternative Press the OK button to enter the Channel List. Then use the buttons to highlight and select the channel. Press the OK button to view the selected channel. -
Page 17: Menus
Menus To access the menu press the MENU button. The main is split into 5 sub menus, PICTURE - SOUND - CHANNEL - FEATURE - SETUP. button to highlight the desired menu and then press OK to enter the menu. The menus are To select a sub menu press the shown below. -
Page 18: Feature Menu
Feature Menu Lock: You will be asked for a Password (preset to 1234), then the Feature Lock menu will open. Lock ENTER Language: Opens the Language menu. Language ENTER Picture Clock ENTER Clock: Opens the clock menu. Sound Sleep Timer Auto Power O Sleep Timer: Set the sleep timer from OFF to 240mins. -
Page 19: Picture Settings - Picture Menu
Picture Settings - Picture Menu For all picture adjustments you will need to access the picture menu. Picture Mode Select among picture mode: Dynamic / Standard / Mild / User. The Picture default setting is Standard. Select User if you want to adjust the picture settings yourself. -
Page 20: Sound Setting - Sound Menu
Sound Setting - Sound Menu Allows you to adjust the sound settings on your TV. Sound Mode Allows the selection of an audio-enhancement technique: Sound Standard / Movie / Music / Speech / User. Sound Mode Standard Bass Standard Picture Movie Treble Music... -
Page 21: Epg (Electronic Programme Guide) (Dtv Mode)
EPG (Electronic Programme Guide) (DTV Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster). -
Page 22: Time Shift Recording Onto A Usb Storage Device
Time Shift Recording onto a USB Storage Device This function allows you to pause live TV. The picture will pause and the programme will begin recording so you don't miss any of the programme. You will have to have a USB storage device attached to the USB socket for Time Shift Recording to work. If the transfer rate of the USB storage device is too slow •... -
Page 23: Recording Dtv Programmes Onto A Usb Storage Device
Recording DTV Programmes onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save it for future viewing. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. -
Page 24: Timer Programming
Timer Programming This function is used to perform scheduled recording. You can set the time and date you wish a recording to take place. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. -
Page 25: Playing Recorded Programmes
Playing Recorded Programmes The recorded List shows a list of all the recordings that have been made. You can view all your recordings from this list and see information about each recording. 1. Press the REC List button on the remote control. The Record List menu will appear. -
Page 26: Digital Teletext (Dtv Mode)
Digital Teletext (DTV Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 37 for details). Teletext within Digital Service 1. -
Page 27: Ci (Common Interface) (Dtv Mode)
CI (Common Interface) (DTV Mode) The common interface allows the use of a Common Access Module to enable you to view scrambled (pay to view) services. These services are provided by TopUp TV (UK only) and others. The Common Access Module and viewing card can be obtained from the VGA (PC) COAX VGA (PC) -
Page 28: Software Upgrade (Usb)
Software Upgrade (USB) This function is only for servicing purposes. Any update information for this TV (if any) will be available at the following website: http://knowhow.com/ie or call our Call Centre on 1 890 818 575. Our Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. -
Page 29: Hdmi Cec (Consumer Electronics Control) (Hdmi Mode)
HDMI CEC (Consumer Electronics Control) (HDMI Mode) Allows you to command and control two or more HDMI CEC compliant devices, that are connected through HDMI, by using only one of the remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). HDMI CEC also allows individual HDMI CEC compliant devices to command and control each other without user intervention. -
Page 30: Lock Setting
Lock Setting To access all the LOCK menu options, you must enter the password. Enter the default password “1234” for first time use. To change the pin code, refer to “Change Pin Code”. Lock System The Lock System is designed to prevent accidental re-tuning of the TV / losing of channels and to prevent children from watching unsuitable programmes. -
Page 31: Changing The Pin Code
Changing the Pin Code Feature - Lock 1. Select Change Pin Code in the Feature - Lock menu. The Change Pin code menu will appear. Lock Channel Parental Guidance Picture Change Pin Code ENTER Sound Channel Feature Setup Move Enter Exit Return Exit... -
Page 32: Favorite Channel Management
Favorite Channel Management In the favourite management menu you can select your favotite channels. Your TV has 4 favorite lists that can be renamed so each member of the family can have their own favorite list. 1. Select a channel that you wish to add to your favorite list and Channel - Favorite Manager press the RED button for Favorite 1, GREEN button for Favorite 2, Program Name... -
Page 33: Media Mode - Viewing Photos
Media mode - Viewing Photos 1. Press the USB button on the remote control or select MEDIA in the source menu. 2. Press the buttons to select PHOTO and then press the OK button. 3. Press the buttons to navigate in the picture folder/file. Photo disc 1 / Holiday photos Return... -
Page 34: Media Mode - Listening To Music
Media mode - Listening to Music 1. Press the USB button on the remote control. 2. Press the buttons to select MUSIC and then press the OK button. 3. Press the buttons to navigate the folder/files to select a music Music file. -
Page 35: Media Mode - Viewing Movies
Media mode - Viewing Movies 1. Press the USB button on the remote control. 2. Press the buttons to select MOVIE and then press the OK button. 3. Press the buttons to navigate the folder/files to select a movie Movie file. -
Page 36: Media Mode - Viewing Ebooks
Media mode - Viewing eBooks 1. Press the USB button on the remote control. 2. Press the buttons to select eBook and then press the OK button. 3. Press the buttons to navigate the folder/files to select a movie e-Book file. -
Page 37: Hints And Tips
Hints and Tips Hints and Tips The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance please call our Call Centre on 1 890 818 575. Our Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. -
Page 38: Specifications
• Check the signal cable. single colour • Reinstall the PC video card. Specifications Model L24FE13I Panel System 24 inch LED Panel Display Resolution 1920 pixels (horizontal) x 1080 pixels (vertical) MPEG-4 / Saorview / PAL I / BG / DK SECAM I / BG / DK DVBT... - Page 39 ++++ L24FED13I L24FE13I, L24FDR13I L24FDP13I, L24FDW13I 43,8 23,5 2010/1062 - 2014 L24FE13I_IB.indd 39 24/03/2014 15:02...
- Page 40 SRS Labs, Inc. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Limited (Registered in England No. 504877) Maylands Avenue, Hemel Hempstead, Hertfordshire HP2 7TG. UK (IB-L24FE13I-140324V2) L24FE13I_IB.indd 40 24/03/2014 15:02...
