Quick Start Guide

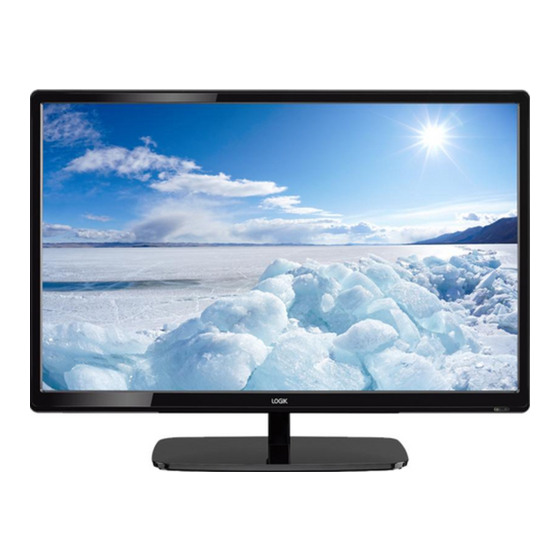

24" LED TV with DVD Player
L24HED13
Thank you
for purchasing your new Logik TV.
Your new TV incorporates the latest technology to enhance your viewing
experience. We would suggest that you allow about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will switch off the TV if
device is left on and idle for 4 hours. Please refer to "Auto Standby" under
the "Time Settings" section of the instruction manual for more detail.
For Help and Support Call
UK: 0344 561 1234
Ireland: 1890 818 575
1

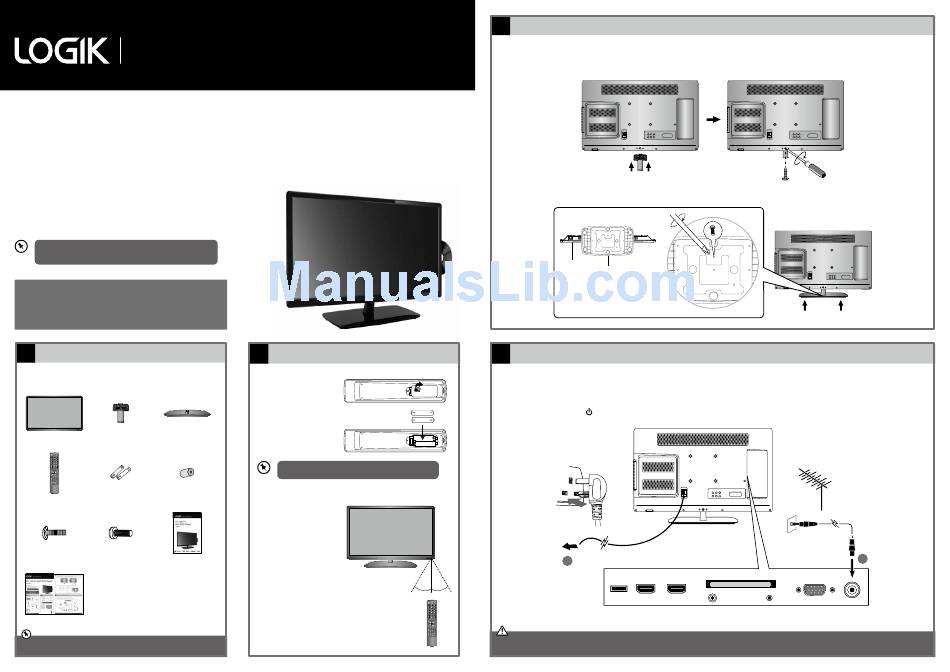

Unpacking

Remove all packaging from the TV. Retain the packaging. If you
dispose of it please do so according to any local regulations.
TV TV Stand Support TV Base
Remote Control AAA Batteries x 2 Rear Spacers x 4
Screw A x 1 Screw B x 1 Instruction Manual
(4 x 20PWB) (4 x 12PWM)
Quick Start Guide
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0344 800 3456 for assistance.
2

Operating Your Remote Control

Installing Batteries

1. Press and lift the back
cover to open the
battery compartment of
the remote control.
2. Insert two AAA size
batteries. Close the
battery compartment
cover.
Install the batteries correctly by following the polarity (+ and –)
indications in the battery compartment.

Operation Range

Point the remote control
at the TV no more than 5
metres from the remote
control sensor on the TV and
within 60° in front of the
TV. The operating distance
may vary depending on the
brightness of the room.
30°
5M
3

Installing the Base Stand

1. Lay the TV down on a flat surface with the back side facing up, and ideally at the edge of a table so that the base of the TV slightly overhangs on it. Please
make sure a soft cushioned material (such as a pillow or thick piece of foam) is placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using screw A. Align with the screw hole then use screw to fix the stand support to the
TV.
3. To install the base stand, align the screw hole, then secure with a screw driver (not included) using the screw B provided.
TV Front
Base Stand
Front
4

Connecting the Aerial and the Mains Socket

1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable to the RF (75Ω) socket at the rear right side of your
TV.
2. Connect the mains cable to the mains socket after you have completed all the connections.
3. At this stage, the TV switches to standby mode. The red LED indicator will illuminate on the front panel of the TV.
4. In standby mode, press the button on the right side panel or on the remote control to turn the TV on. The red LED indicator will turn off.
2
To the mains socket
USB
30°
• Do not connect the TV to the mains supply until you have completed all the connections.
• If you watch TV using a set-top box, simply connect your TV and set-top box via a HDMI cable and select HDMI in the Input Source menu.
screw in
Screw A x 1
(4 x 20PWB)
screw in
Screw B x 1
(4 x 12PWM)
RF coaxial cable
(not included)
COMMON INTERFACE (CI)
HDMI2 HDMI1 PC IN
HEADPHONE PC AUDIO
OR
1
RF
