Logik L22FED12N Quick Start Manual

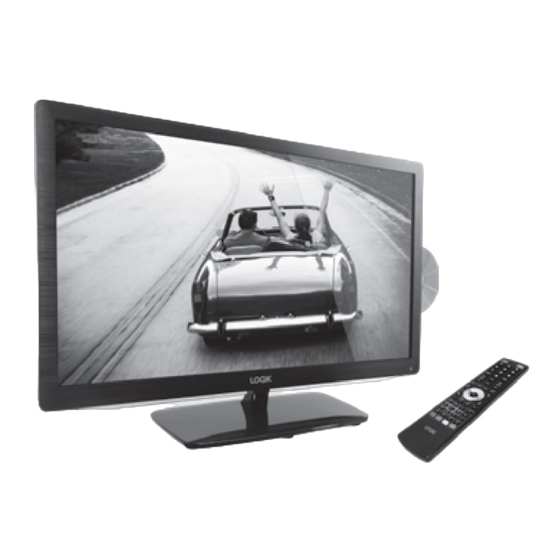

22" / 24" Full HD LED TV with DVD Player
Quick Start Guide
Thank you
for purchasing your new Logik TV.
Your new TV incorporates the latest technology to enhance your
viewing experience. We would suggest that you allow about 20
mins for initial setup.
Please follow this guide for a successful first time installation.
GB
1 1
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to any local
regulations.
TV Screw A x 1
TV Stand Support Screw B x 1
TV Base Instruction Manual
Quick Start Guide
Remote Control /
AAA Batteries x 2
3 3

Installing the Base Stand

1. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or thick piece of foam) is
placed beneath the screen.
2. To install the TV stand, first attach the stand support to the TV by using screw A. Align the screw hole then use screw A to fix the stand support to the TV.
3. To install the base stand, align the screw hole, then secure with a screw driver (not included) using the screw B provided.
Screw A x 1
(P.N.: 209100422B1)
2 2

Operating Your Remote Control

1. Press and lift the back cover to open the
battery compartment of the remote
control.
2. Insert two AAA size batteries. Close the
battery compartment cover.
Make sure the (+) and ( – ) ends
of the batteries match the (+)
and ( – ) ends indicated in the
battery compartment.
screw
TV Front
screw
Base Stand
Front
Screw B x 1
(P.N.: 20912223101)
4 4

Connecting the Aerial

COMMON INTERFACE (CI)
USB HDMI2 HDMI1
HEADPHONE
Connect one end of the RF coaxial cable to the aerial socket on the
wall and the other end of the cable to the RF (75Ω) socket at the rear
right side of your TV.
Do not connect the TV to the mains supply until you
have completed all the connections.
L22FED12N
6 6

Turning the TV On for the First Time

The first time you turn the TV on, it will go straight into First Time Installation menu.

First Time Installation

Please ensure aerial is plugged in!
L24FED12N Then press OK button.
OSD Language
Cesky English Fran ais Magyar
Espanol ~
Dansk Hrvatski Nederlands
Deutsch E k Italiano Norsk
OK
DVB SELECT TYPE
DVB-T
DVB-C
7 7

Target Region Descriptor

During tuning your TV may have received signals
from more than one transmitter. If this has occurred
the Target Region Descriptor screen will be
displayed. This will enable you to select the correct
regional transmission for the local news service that
you require.
Press the buttons to adjust each option's setting
and then press the OK button to confirm.
Well done,
your new TV is now ready to use. You will find that there are many exciting features available. To get to know all these
features, please take some time to read the instruction manual provided with your TV.
5 5

Connecting to the Mains Socket

OR
RF Coxial Cable
(not included)
PC IN RF
PC AUDIO
1. Connect the mains cable to the mains socket after you have
completed all the connections.
2. At this stage, the TV switches to standby mode. The red LED
indicator will illuminate on the front panel of the TV.
3. In standby mode, press the
TV or on the remote control to turn the TV on. The red LED
indicator will turn blue.
1. Press the OK button to start
Tune Type
First Time Installation
menu.
UK Belgium
Australia Bulgaria
Austria Croatia
MENU
2. Press the buttons DVB-C Scan Menu
to select your desired
Scan type Full
language to be displayed
Polski
Frequency
610000
on the menu. The default
Portugues
Auto
Network ID
on-screen menu language
Pycck
is set as English. Press the
Symbol(ks/s) Auto
OK button to confirm. OK
3. Press the buttons to

Channel Tuning

select DVB-T / DVB-C and
then press the OK button to
TV : 3 Channel(s)
DTV : 0 Channel(s)
confirm.
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz
Please press MENU to skip.
This will be shown as GBR for the UK.
This will show the regional country
(England, Wales, Scotland, NI).
This will allow you to set the region for
your local news service on BBC and
ITV (London, Beds and Cambs etc).
You may receive signals from more than
one transmitter within the Secondary
Region, (e.g Beds and Cambs may have
Luton or Sandy Heath).
To mains
socket
button on the right side panel of the
3a. If you select DVB-T, press the buttons
DTV+ATV
to select the desired country and then
press the OK button to start tuning.
Czech
Denmark
3b. If you select DVB-C, the next step is to
Finland
configure the DVB-C system (Scan
type / Frequency / Network ID /
Symbol(ks/s). Press the OK button to
go to the tune type and add country
select menu. This step is the same as
the DVB-T's select the tune type (DTV
/ ATV) process. Press the
buttons to select the desired country
and then press the OK button to start
MENU tuning.
4. Channel tuning will commence. This
operation may take up to 6 minutes.
The display will show the progress of
the tuning and the number of channels
found.
(TV)
Target Region Setting
Country Code GBR
Primary Region England
Secondary Region London
Tertiary Region
(P.N.: 4033C226104)
