Logik L24HEDW19 Quick Start Manual

Quick Start Guide

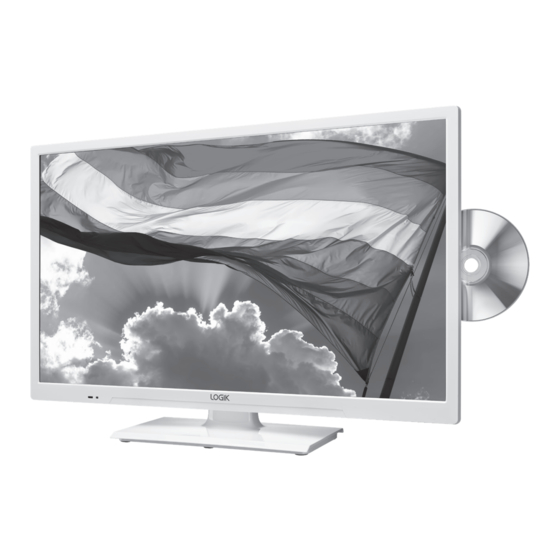

24" HD Ready LED TV
with DVD Player
L24HEDW19(A)
1
Unpacking
Remove all packaging from the TV. Retain the packaging.
If you dispose of it please do so according to local regulations.
TV
TV Stand
Remote Control/AAA Batteries x 2
Instruction Manual
2
Operating Your Remote Control
1. Remove the battery
compartment.
2. Insert two AAA size
batteries. Make sure to
match the (+) and ( - )
ends of the batteries with
the (+) and ( - ) ends
indicated in the battery
compartment.
3. Replace the battery
compartment cover, make
sure it clicks into place for
extra security you can use
the screw supplied.
Logik 24' HD Ready LED TV with DVD Player L24HEDW19(A) Quick Start.indd 1
3
Installing the Base Stand
1. Ensure the TV is switched off and not connected to the mains
power supply.
2. Lay the TV down on a flat surface ideally on the edge of a table so
the base of the TV slightly overhangs the edge of the table, with the
back side facing up. Please make sure a soft cushioned material
(such as a dry bath towel or thick piece of foam) is placed beneath
the screen.
3. To install, slide the TV stand into the slot on the bottom of the TV.
Make sure it clicks into position.
LAN
VGA
SPDIF
SCART
VGA
SPDIF
SCART
Cushioned
Table
material
4
Connecting the Aerial and Power
1. Connect one end of the RF coaxial cable to the aerial socket on the wall and the other end of the cable
to the ANT socket on the back of your TV.
Do not connect the TV to the mains supply until you have completed all the connections.
LAN
VGA
SPDIF
SCART
2. Plug the TV into a mains socket and switch on at the mains.
LAN
VGA
SPDIF
SCART
3. In standby mode, press the button on the remote control to turn
the TV on. The LED indicator will flash for a few seconds then the TV
will switch on.
LED indicator flashes
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the
mains power. To completely disconnect the mains power, please remove the mains plug from the mains socket.
LAN
VGA
SPDIF
RF coaxial cable
(not included)
SCART
