Instruction Manual

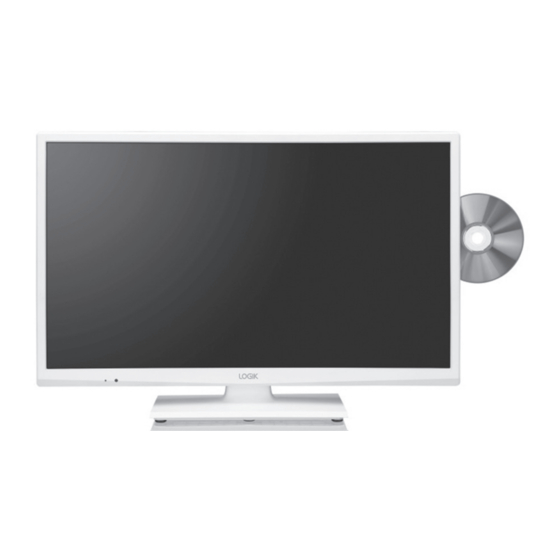

24" HD Ready LED TV
with DVD Player
L24HEDW15 (White)
L24HEDP15 (Pink)
L24HEDW15/P15_IB.indd 1
19/04/2015 21:46

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L24HEDW15 and is the answer not in the manual?

Questions and answers

Related Manuals for Logik L24HEDW15

Summary of Contents for Logik L24HEDW15

  • Page 1 Instruction Manual 24” HD Ready LED TV with DVD Player L24HEDW15 (White) L24HEDP15 (Pink) L24HEDW15/P15_IB.indd 1 19/04/2015 21:46...
  • Page 2 L24HEDW15/P15_IB.indd 2 19/04/2015 21:46...

  • Page 3: Table Of Contents

    Parental Settings ..........................................42 Connecting a USB Storage Device ..................................... 43 Viewing Videos ..........................................44 Viewing Photos ..........................................45 Listening to Music ..........................................46 Media Browser Settings ......................................... 46 Maintenance .....................................47 Hints and Tips ....................................48 Specifications ....................................50 L24HEDW15/P15_IB.indd 3 19/04/2015 21:46...
  • Page 4 With our Fault & Fix services we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for: • Computer desktops • Laptops • Netbooks • TVs CT_362_52TG_123456_CT_A4PF Knowhow Page UK.indd 1 L24HEDW15/P15_IB.indd 4 25/04/2014 10:06 19/04/2015 21:46...
  • Page 5 With our Fault & Fix services we can repair a wide range of products at our new state-of-the-art repair lab. This service is available for: • Desktop PCs • Laptops • Netbooks • TVs CT_459_52TG_123456_CT_A4PF Knowhow Page IRL.indd 1 25/04/2014 10:06 10:06 L24HEDW15/P15_IB.indd 5 19/04/2015 21:46...

  • Page 6: Safety Warnings

    10 cm 10 cm • To prevent screen burn if viewing any of the above for 10 cm long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely. L24HEDW15/P15_IB.indd 6 19/04/2015 21:46...
  • Page 7 • Failure to do so will risk severely damaging the disc and the unit. from this product at all times. • Do not stack devices, heat from other devices may affect the performance of the unit. L24HEDW15/P15_IB.indd 7 19/04/2015 21:46...

  • Page 8: Preparation

    Preparation Thank you for purchasing your new Logik 24” HD Ready LED TV with DVD Player. Your new TV has many features and incorporates the latest technology to enhance your viewing experience. We recommend that you spend some time reading this instruction manual so that you fully understand these features.

  • Page 9: Installing / Removing The Base Stand

    • Please read this instruction manual carefully while setting up your TV. • If you require additional assistance please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. L24HEDW15/P15_IB.indd 9 19/04/2015 21:46...

  • Page 10: Front / Right Side View And Controls

    8 cm discs.) Press to start playback or pause. (DVD mode) Press once to stop playpack and leave in resume state. (DVD mode) Press twice to stop playback completely. (DVD mode) Press to eject disc. (DVD mode) L24HEDW15/P15_IB.indd 10 19/04/2015 21:46...

  • Page 11: Rear View And Sockets

    Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video devices. (audio L/R also used for YPbPr and VGA) Connects to the headphones. 10 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source). L24HEDW15/P15_IB.indd 11 19/04/2015 21:46...

  • Page 12: Installing Batteries In The Remote Control

    TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room. 30° 30° .,/@ 7 7 7 MENU Q.MENU BACK EXIT LANG. L24HEDW15/P15_IB.indd 12 19/04/2015 21:46...

  • Page 13: Remote Control

    • Allow you to navigate the OSD menus and adjust the system settings to your preference. • skip chapters in DVD mode. • Press OK to select or save a setting. 13. BACK LANG. Press to move backwards through menus. 14. EXIT Press to exit a menu. L24HEDW15/P15_IB.indd 13 19/04/2015 21:46...
  • Page 14 USB port. • plays a DVD or recording. Selects DVD mode when in any other source. • stops a DVD or recording. • starts a recording, continue to press will add more recordings. L24HEDW15/P15_IB.indd 14 19/04/2015 21:46...
  • Page 15 • Allow you to navigate the OSD menus and adjust the system settings to your preference. • skip chapters in DVD mode. • Press OK to select or save a setting. 13. BACK LANG. Press to move backwards through menus. 14. EXIT Press to exit a menu. L24HEDW15/P15_IB.indd 15 19/04/2015 21:46...
  • Page 16 USB port. • plays a DVD or recording. Selects DVD mode when in any other source. • stops a DVD or recording. • starts a recording, continue to press will add more recordings. L24HEDW15/P15_IB.indd 16 19/04/2015 21:46...

  • Page 17: Initial Setup

    10. Press the buttons to highlight Home Mode then press OK. If the TV is to be used in a store, please select the Store Mode. For domestic use, Home Mode is recommended. Home Mode Store Mode L24HEDW15/P15_IB.indd 17 19/04/2015 21:46...

  • Page 18: Choose Region

    3. ITV 4. Channel 4 5. Channel 5 6. ITV2 7. BBC THREE 9. BBC FOUR 10. ITV3 Move Delete Edit name Lock Function Navigate Filter Watch MENU Cancel scan RET.BACK Back 0..9 Jump Page UP/DOWN L24HEDW15/P15_IB.indd 18 19/04/2015 21:46...

  • Page 19: Display Channel Information

    TV. • If you wish to switch the sound off, press the MUTE button. Press the MUTE button again or the VOL + or – button to resume listening. L24HEDW15/P15_IB.indd 19 19/04/2015 21:46...

  • Page 20: Adjusting The Picture Settings

    Shift green. RGB Gain Press to adjust the Red, Green and Blue colour in the picture. 3. Press the BACK button to return to the previous menu. 4. Press the EXIT button to exit the menu. L24HEDW15/P15_IB.indd 20 19/04/2015 21:46...

  • Page 21: Aspect Ratio

    TV. Digital Out Sets the digital audio out type to PCM or COMPRESSED. 3. Press the BACK button to return to the previous menu. 4. Press the EXIT button to exit the menu. L24HEDW15/P15_IB.indd 21 19/04/2015 21:46...

  • Page 22: Editing The Channel List

    4. Exit the menu and press the OK button. You will now see your Favourite channel list. 5. If you want to go back to the full list of channels go back into the ACTIVE CHANNEL LIST and select SHOW ALL. L24HEDW15/P15_IB.indd 22 19/04/2015 21:46...

  • Page 23: Programme Guide

    9. BBC FOUR This is BBC Four World News Today 10. ITV3 Heartbeat Murder She Wrote 11.Pick Animal Emergency Animal Emergency Futurama Futurama Prev day Next day Zoom Filter Select Genre Event Details 0..9 Jump Options Search Rec./Stop L24HEDW15/P15_IB.indd 23 19/04/2015 21:46...
  • Page 24 Press the button to record the selected programme, to show a recording is set it will be (Record/Stop) highlighted red. To remove the record function, highlight the programme then press . L24HEDW15/P15_IB.indd 24 19/04/2015 21:46...

  • Page 25: Time Shift Recording Onto A Usb Storage Device

    (PLAY) button to resume playback. When timeshifting press the OK button to play or pause the recording. If you want to exit timeshifting, press the button. L24HEDW15/P15_IB.indd 25 19/04/2015 21:46...

  • Page 26: Recording Dtv Programmes Onto A Usb Storage Device

    YES and press OK. Recording will stop automatically when the disk is full. You can turn off the TV while recording. Press the button. The standby indicator light will flash to show the TV is still recording. L24HEDW15/P15_IB.indd 26 19/04/2015 21:46...

  • Page 27: Timer Programming

    Playback Press the buttons to select USE PARENTAL SETTINGS, DISALLOWED or ALLOWED. You will need to enter the PIN number if you want to play a recording when you select 'use parental settings and disallowed' . L24HEDW15/P15_IB.indd 27 19/04/2015 21:46...

  • Page 28: Recording Configuration

    Select to see the Hard disk information. information Select Setting Select Start Early Option Back Exit RET/BACK MENU Format Disk Select to format the USB storage device, you will need to enter your PIN number. Any previous recordings will be deleted. L24HEDW15/P15_IB.indd 28 19/04/2015 21:46...

  • Page 29: Playing Recorded Programmes

    PLAY FROM OFFSET - This option allows you to select a start point into the recording. (Play) Press the (play) button to play the recording. Press the i button to see information about the recorded programme. L24HEDW15/P15_IB.indd 29 19/04/2015 21:46...

  • Page 30: Red Button + (Interactive Services)

    5. The radio stations are from channel position 700, you can also select them using the P+/P- buttons or the NUMBER buttons. B B C Scott Mills RADIO 13.00 - 16.00 Now Playing: 22 by Taylor For programme info, Swift events & news, press RED L24HEDW15/P15_IB.indd 30 19/04/2015 21:46...

  • Page 31: Using The Dvd Features

    Both the DVD player and the discs are coded by region. These regional codes must match in order to play the disc. If the codes do not match, the disc will not play. The Region Number for this DVD player is described on the rear panel of the TV. Disc Type DVD-VIDEO Region code L24HEDW15/P15_IB.indd 31 19/04/2015 21:46...

  • Page 32: Basic Dvd Playback Functions

    For MP3 / JPEG discs, while playing the disc, you may use the repeat playback. Repeatedly press the GREEN button to toggle between the different repeat functions (SHUFFLE / RANDOM / SINGLE / REPEAT ONE / REPEAT FOLDER / REPEAT OFF). L24HEDW15/P15_IB.indd 32 19/04/2015 21:46...
  • Page 33 Allows you to zoom into the picture, 2x, 3x or 4x. Then if you keep pressing the RED button the picture size will reduce 1/2, 1/3 then 1/4. Press the RED button to select the size you want. L24HEDW15/P15_IB.indd 33 19/04/2015 21:46...

  • Page 34: Overview Of Remote Control Buttons For Dvd Mode

    DVD. • searches forwards and backwards when viewing a DVD in play mode. If the DVD is paused, press the button to play back in slow motion. 1/2 - 1/4 - 1/8 - 1/16 speed. L24HEDW15/P15_IB.indd 34 19/04/2015 21:46...
  • Page 35 DVD. • searches forwards and backwards when viewing a DVD in play mode. If the DVD is paused, press the button to play back in slow motion. 1/2 - 1/4 - 1/8 - 1/16 speed. L24HEDW15/P15_IB.indd 35 19/04/2015 21:46...

  • Page 36: Using The Dvd General Setup Menus

    Set a parental guide from 1 to 8. This feature may not be available on all DVD discs. Password Select password to change the DVD password. The default password is '0000' . SPDIF OUTPUT Select the SPDIF Output to RAW or PCM. L24HEDW15/P15_IB.indd 36 19/04/2015 21:46...

  • Page 37: Ci (Common Interface) (Dtv Mode)

    5. Press the BACK button to exit the menu. Main menu Module information Smart card information Language Software Download Press OK to select, or Exit to quit This screen is for illustration only. Cancel L24HEDW15/P15_IB.indd 37 19/04/2015 21:46...

  • Page 38: Time Settings

    TIME ZONE then press the buttons to Time Setting Mode < > Auto Time Zone GMT + 00:00 select your desired time zone. Change value 5. Press the MENU button to exit the menu. Back Exit RET/BACK MENU L24HEDW15/P15_IB.indd 38 19/04/2015 21:46...

  • Page 39: Other Settings

    STANDBY or LAST STATE. If you choose LAST STATE, and switch your TV off and back on again at the mains it will switch on at its last state. Its best to leave it as STANDBY, otherwise your TV may switch on after a power cut. L24HEDW15/P15_IB.indd 39 19/04/2015 21:46...

  • Page 40: Language Settings

    SOURCES and then press the OK button. HDMI2 Enabled YPbPr Enabled VGA/PC Enabled 3. Press the buttons to select a source then press the buttons to Enabled select ENABLED or DISABLED. Navigate Back Change value RET/BACK Back MENU Edit name L24HEDW15/P15_IB.indd 40 19/04/2015 21:46...

  • Page 41: Resetting Your Tv

    Do you want to delete all channels and INSTALLATION MENU. settings for rst time installation? Your recordings will be preserved. All channel and user settings will be lost and the TV will revert to "First Time Installation". L24HEDW15/P15_IB.indd 41 19/04/2015 21:46...

  • Page 42: Parental Settings

    • Press the NUMBER buttons to CONFIRM the new pin. The words 'PIN CHANGED' will briefly appear on the screen. Don't forget to make a note of your new PIN number. The default password is “0000”. If you change the password, be sure to remember the new password! L24HEDW15/P15_IB.indd 42 19/04/2015 21:46...

  • Page 43: Connecting A Usb Storage Device

    • The TV screen will be blank temporarily as it will take time to start up and stabilise the connected hard disk. This is normal and the starting time may vary depending on the brand and the memory size of the connected hard disk. • Disconnect the USB storage device if it is not in use. L24HEDW15/P15_IB.indd 43 19/04/2015 21:46...

  • Page 44: Viewing Videos

    • YELLOW button - Press to see the SUBTITLE TIME CORRECTION menu, where you can adjust the time delay of the subtitles to match the action in the video. • Supported file formats: MPEG1 & 2, VOB, and MKV. L24HEDW15/P15_IB.indd 44 19/04/2015 21:46...

  • Page 45: Viewing Photos

    - Press to rotate the photo. • • button - Press to see the next or previous photo in the list. • i button - Press to see the information bar. • Supported file formats: JPEG and BMP. L24HEDW15/P15_IB.indd 45 19/04/2015 21:46...

  • Page 46: Listening To Music

    Show Subtitle Subtitle Language English Subtitle Position Down Subtitle Font Size 44 pt. Flat view style displays all les in removable device. Folder view style displays les in selected folder. Select Navigate Back Exit RET/BACK MENU L24HEDW15/P15_IB.indd 46 19/04/2015 21:46...

  • Page 47: Maintenance

    Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier. • Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping. L24HEDW15/P15_IB.indd 47 19/04/2015 21:46...

  • Page 48: Hints And Tips

    • Keep the RF coaxial cable away from other connected cables. Password • Select the Set Password setting in the LOCK menu, then enter the following master Lost password password “4725”. The master password clears your previous password and allows you to enter a new password. L24HEDW15/P15_IB.indd 48 19/04/2015 21:46...
  • Page 49 What type of aerial do I need? likely to get interference from other electrical devices at home. We suggest you have an aerial survey done before getting an aerial upgrade. • Talk to your retailer or contact your local aerial installer. L24HEDW15/P15_IB.indd 49 19/04/2015 21:46...

  • Page 50: Specifications

    Specifications Product Fiche and Specifications Brand Logik Model L24HEDW15/ L24HEDP15 Energy Efficiency Class Screen Size (measured diagonally) 24" - 61cm Power Consumption (In HOME / STANDBY mode) 25W/0.5W Average Annual Energy Consumption 36 kWh / annum** Standby Power Consumption 0.5W...
