Summary of Contents for Logik L24HEDW19

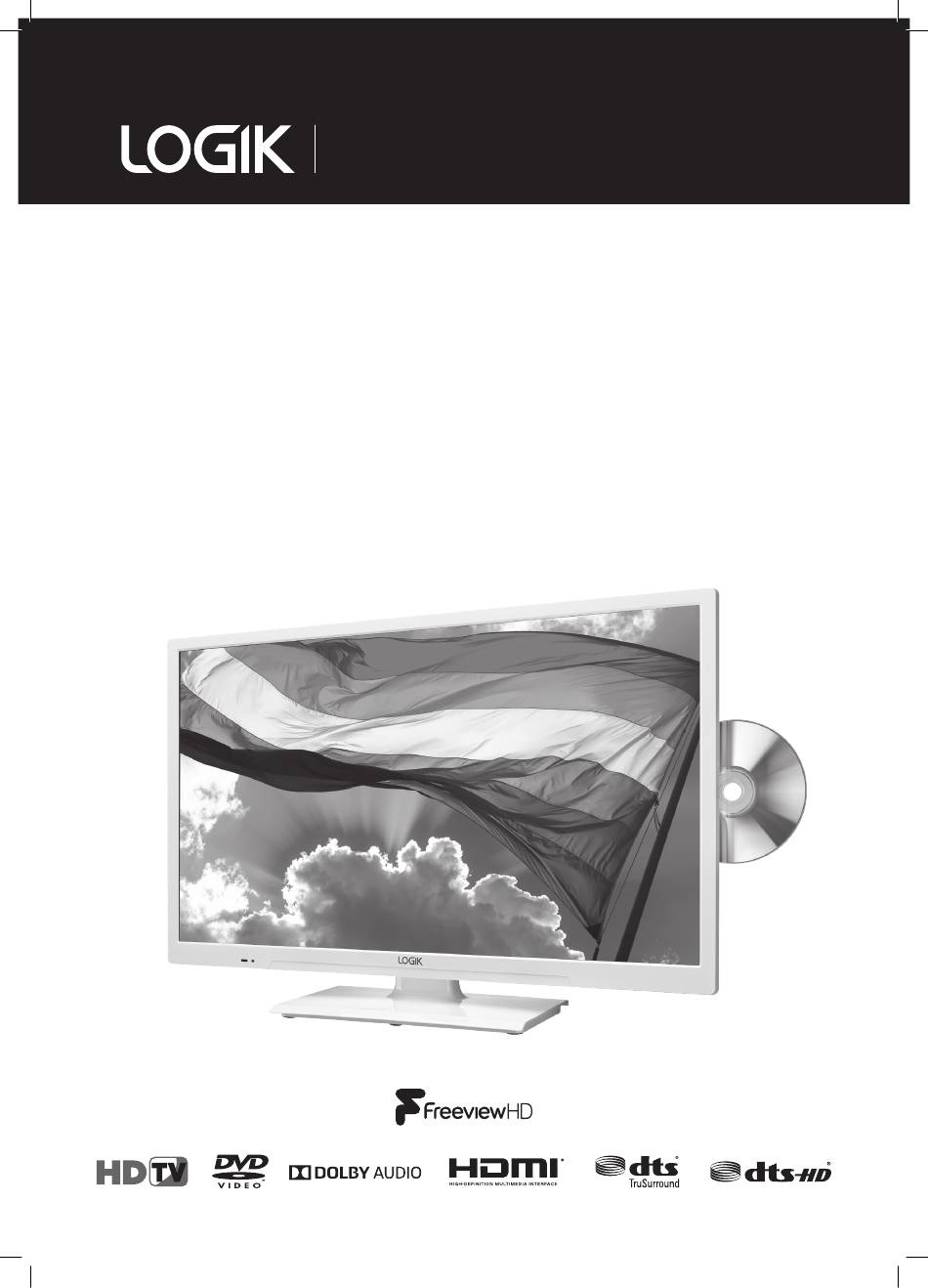

  • Page 1 Instruction Manual 24” HD Ready LED TV with DVD Player L24HEDW19(B) Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 1 24/09/2019 14:51...
  • Page 2: Table Of Contents

    CI (Common Interface) (DTV Mode) ..................................37 Time Settings............................................. 38 Accessibility Settings ........................................38 More Settings ............................................ 39 − HDMI ARC (Audio Return Channel) ................................40 Language Settings ...........................................41 Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 2 24/09/2019 14:51...
  • Page 3 Media Browser ..........................................46 − Media Browser Settings ....................................46 Maintenance .....................................47 Hints and Tips ....................................48 Specifications ....................................50 Product Fiche and Specifications ...................................... 50 Declaration of Conformity ......................................50 Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 3 24/09/2019 14:51...
  • Page 4: Safety Warnings

    • Unplug the unit from the mains socket during a lightning storm and long inactivity periods (going on holiday). Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 4 24/09/2019 14:51...
  • Page 5 To prevent screen burn if viewing any of the above for long periods of time, reduce contrast and brightness when viewing. Once burn-in occurs it will never disappear completely. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 5 24/09/2019 14:51...
  • Page 6 To prevent the spread of fire, keep candles or other open flames away from this product at all times. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 6 24/09/2019 14:51...
  • Page 7: Preparation

    To completely disconnect the mains power, please remove the mains plug from the mains socket. the screw supplied. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Quick Start.indd 1 10/09/2019 14:01 Instruction Manual Quick Start Guide If items are missing, or damaged please contact Partmaster (UK only).
  • Page 8: Installing / Removing The Base Stand

    • If you require additional assistance please call our UK Call Centre on 0344 561 1234. Our UK Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 8 24/09/2019 14:51...
  • Page 9: Front / Right Side View And Controls

    Press once to stop playpack and leave in resume state. (DVD mode) Press twice to stop playback completely. (DVD mode) Press to eject disc. (DVD mode) Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 9 24/09/2019 14:51...
  • Page 10: Rear View And Sockets

    Connects to the headphones. The headphone jack must only have 2 divisions to mute the audio. 11 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source). Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 10 24/09/2019 14:51...
  • Page 11: Installing Batteries In The Remote Control

    TV and within 60° in front of the TV. The operating distance may vary depending on the brightness of the room. 30° 30° Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 11 24/09/2019 14:51...
  • Page 12: Remote Control

    DVD mode. • Press OK to select or save a setting. 13. BACK Press to move backwards through menus. 14. EXIT Press to exit a menu. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 12 24/09/2019 14:51...
  • Page 13 To zoom in and out of the picture in DVD mode. REPEAT (GREEN) Repeat Chapter, Title or All in DVD mode. DVD FILM MENU (YELLOW) Select the Root menu of the DVD playing (DVD mode). Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 13 24/09/2019 14:51...
  • Page 14: Initial Setup

    LANGUAGE then press OK. 5. Press the buttons to highlight your COUNTRY then press OK. 6. Select Home Mode by pressing the OK button. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 14 24/09/2019 14:51...
  • Page 15: Choose Region (Uk Only)

    Radio channels that have been tuned in. Press OK to exit. 10. The Edit Channel list will appear, press the EXIT button to remove this. Your TV is now fully tuned in and ready to use. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 15 24/09/2019 14:51...
  • Page 16: Connecting An Analogue Device

    To listen to your TV at the new lower level, press the button again or VOL + button. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 16 24/09/2019 14:51...
  • Page 17: Adjusting The Picture Settings

    Picture Zoom Adjusts the aspect ration of the picture. AUTO - 16:9 - SUBTITLE - 14:9 - 14:9 Zoom - 4:3 - CINEMA. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 17 24/09/2019 14:51...
  • Page 18 Select to adjust the picture colour Shift between Red and Green. 4. Press the BACK button to return to the previous menu. 5. Press the EXIT button to exit the menu. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 18 24/09/2019 14:51...
  • Page 19: Adjusting The Sound Settings

    Selects SPEAKER or AMPLIFIER. If you have connected a Soundbar to your TV via HDMI you will need to select AMPLIFIER so the sound comes out of the Soundbar and not the TVs speakers. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 19 24/09/2019 14:51...
  • Page 20 Sets the digital audio out type to PCM or COMPRESSED. 4. Press the BACK button to return to the previous menu. 5. Press the EXIT button to exit the menu. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 20 24/09/2019 14:51...
  • Page 21: Editing The Channel List

    TAG/UNTAG ALL. A tick will appear next to all the channels. 2. Press OK, then press the buttons to select DELETE or LOCK then press OK. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 21 24/09/2019 14:51...
  • Page 22: Filtering The Channel List

    4. To watch a channel in your favourites list either select the WATCH tab or press the P+/P- buttons. To see the full list of channels again select NONE under Favourites. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 22 24/09/2019 14:51...
  • Page 23: Switch On / Off Programme Guide

    Remember you must have a Hard Drive or USB stick connected to your TV, otherwise the programme won't record. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 23 24/09/2019 14:51...
  • Page 24 • Now - Select Now to see all the programmes that start now. • Zoom - Select zoom to condense the time gaps by 30 minutes each press to see more programmes on the screen. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 24 24/09/2019 14:51...
  • Page 25: Time Shift Recording Onto A Usb Storage Device

    (PLAY) button to resume playback. When timeshifting press the OK button to play or pause the recording. If you want to exit timeshifting, press the button. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 25 24/09/2019 14:51...
  • Page 26: Recording Dtv Programmes Onto A Usb Storage Device

    Recording will stop automatically when the disk is full. You can turn off the TV while recording. Press the button. The standby indicator light will flash to show the TV is still recording. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 26 24/09/2019 14:51...
  • Page 27: Setting A Timer Or Timed Recording

    SETTINGS, DISALLOWED or ALLOWED. You will need to enter the PIN number if you want to play a recording when you select 'use parental settings and disallowed' . Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 27 24/09/2019 14:51...
  • Page 28: Editing A Timer

    OK. 3. You'll now be asked if you want to delete this timer, select YES then press OK. The timer will now be deleted. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 28 24/09/2019 14:51...
  • Page 29: Playing Recorded Programmes

    OK. 3. You'll now be asked if you want to delete this recording, select YES then press OK. The recording will now be deleted. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 29 24/09/2019 14:51...
  • Page 30: Sorting A Recordings

    Select to see the Hard disk information. information Format Disk Select to format the USB storage device, you will need to enter your PIN number. Any previous recordings will be deleted. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 30 24/09/2019 14:51...
  • Page 31: Red Button + (Interactive Services)

    OK to listen to it. 5. The radio stations are from channel position 700, you can also select them using the P+/P- buttons or the NUMBER buttons. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 31 24/09/2019 14:51...
  • Page 32: Using The Dvd Features

    The Region Number for this DVD player is described on the rear panel of the TV. Disc Type DVD-VIDEO Region code Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 32 24/09/2019 14:51...
  • Page 33: Basic Dvd Playback Functions

    For MP3 / JPEG discs, while playing the disc, you may use the repeat playback. Repeatedly press the GREEN button to toggle between the different repeat functions (SHUFFLE / RANDOM / SINGLE / REPEAT ONE / REPEAT FOLDER / REPEAT OFF). Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 33 24/09/2019 14:51...
  • Page 34 Allows you to zoom into the picture, 2x, 3x or 4x. Then if you keep pressing the RED button the picture size will reduce 1/2, 1/3 then 1/4. Press the RED button to select the size you want. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 34 24/09/2019 14:51...
  • Page 35: Overview Of Remote Control Buttons For Dvd Mode

    To zoom in and out of the picture. GREEN Repeat Chapter, Title or All in DVD mode. YELLOW Selects the Root menu of the DVD playing. BLUE Selects the Title menu if available. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 35 24/09/2019 14:51...
  • Page 36: Using The Dvd General Setup Menus

    Set a parental guide from 1 to 8. This feature may not be available on all DVD discs. Password Select password to change the DVD password. The default password is '0000' . SPDIF OUTPUT Select the SPDIF Output to RAW or PCM. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 36 24/09/2019 14:51...
  • Page 37: Ci (Common Interface) (Dtv Mode)

    1. Before you remove the Common Access Module, ensure that the TV is Common Access switched off at the mains. Module 2. Pull the Common Access Module from the slot. 3. Switch the TV on. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 37 24/09/2019 14:51...
  • Page 38: Time Settings

    • Press the to set your desired volume of the audio description. 3. Press the MENU button to exit the menu. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 38 24/09/2019 14:51...
  • Page 39: More Settings

    Press OK to view the licencing information of your TV. When in Media mode the CEC function will not function. For CEC to function properly your TV must be in TV mode. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 39 24/09/2019 14:51...
  • Page 40: Hdmi Arc (Audio Return Channel)

    You will now be able to use your TV remote control to adjust the volume of your external speaker and the speaker will also switch into on/standby when you switch your TV on and off. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 40 24/09/2019 14:51...
  • Page 41: Language Settings

    SOURCES and then press the OK button. 3. Press the buttons to select a source then press the buttons to select ENABLED or DISABLED. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 41 24/09/2019 14:51...
  • Page 42: Resetting Your Tv

    FIRST TIME INSTALLATION MENU. All channel and user settings will be lost and the TV will revert to "First Time Installation". Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 42 24/09/2019 14:51...
  • Page 43: Parental Settings

    Don't forget to make a note of your new PIN number. The default password is “0000”. If you change the password, be sure to remember the new password! Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 43 24/09/2019 14:51...
  • Page 44: Connecting A Usb Storage Device

    • Disconnect the USB storage device if it is not in use. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 44 24/09/2019 14:51...
  • Page 45: Connecting To The Internet (Wired)

    NETWORK TYPE then press the buttons to select wired. The word connected will appear to show you are now connected to the internet. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 45 24/09/2019 14:51...
  • Page 46: Media Browser

    • Supported file Video formats: MPEG1 & 2, VOB, and MKV. • Supported file Picture formats: JPEG and BMP. • Supported file Music formats: MP3 and WMA /ASF. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 46 24/09/2019 14:51...
  • Page 47: Maintenance

    Do not store discs in places subjected to moisture and dust such as a bathroom or near a humidifier. • Storing discs vertically in a case, stacking discs or placing objects on discs outside of their cases may cause warping. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 47 24/09/2019 14:51...
  • Page 48: Hints And Tips

    • Select the Set Password setting in the LOCK menu, then enter the following master Lost password password “4725”. The master password clears your previous password and allows you to enter a new password. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 48 24/09/2019 14:51...
  • Page 49 We suggest you have an aerial survey done before getting an aerial upgrade. • Talk to your retailer or contact your local aerial installer. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 49 24/09/2019 14:51...
  • Page 50: Specifications

    Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.teamknowhow.com Click on SEARCH and enter the model number. Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 50 24/09/2019 14:51...
  • Page 51 Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 51 24/09/2019 14:51...
  • Page 52 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite Omni Park SC, Santry, Dublin 9, Republic of Ireland (IB-L24HEDW19(B)-190924V1) Logik 24' HD Ready LED TV with DVD Player L24HEDW19(B) Manual.indd 52 24/09/2019 14:51...
