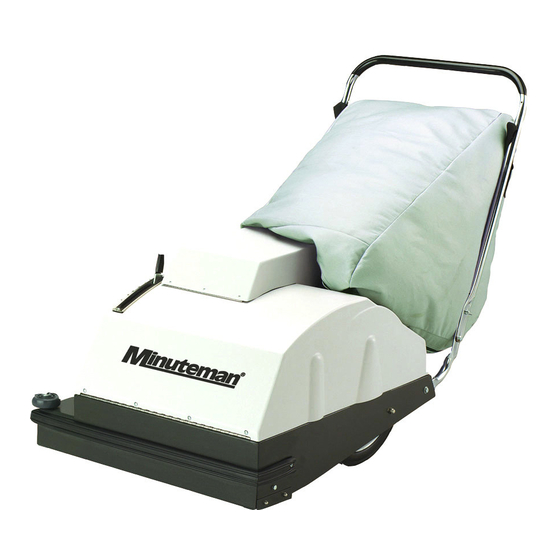

724 Wide Area
Model:
Carpet Vacuum
MC827825 115V
MC828238 230V
Electric
OPERATION
SERVICE
PARTS
CARE
Revised 5/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 724 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Minuteman 724

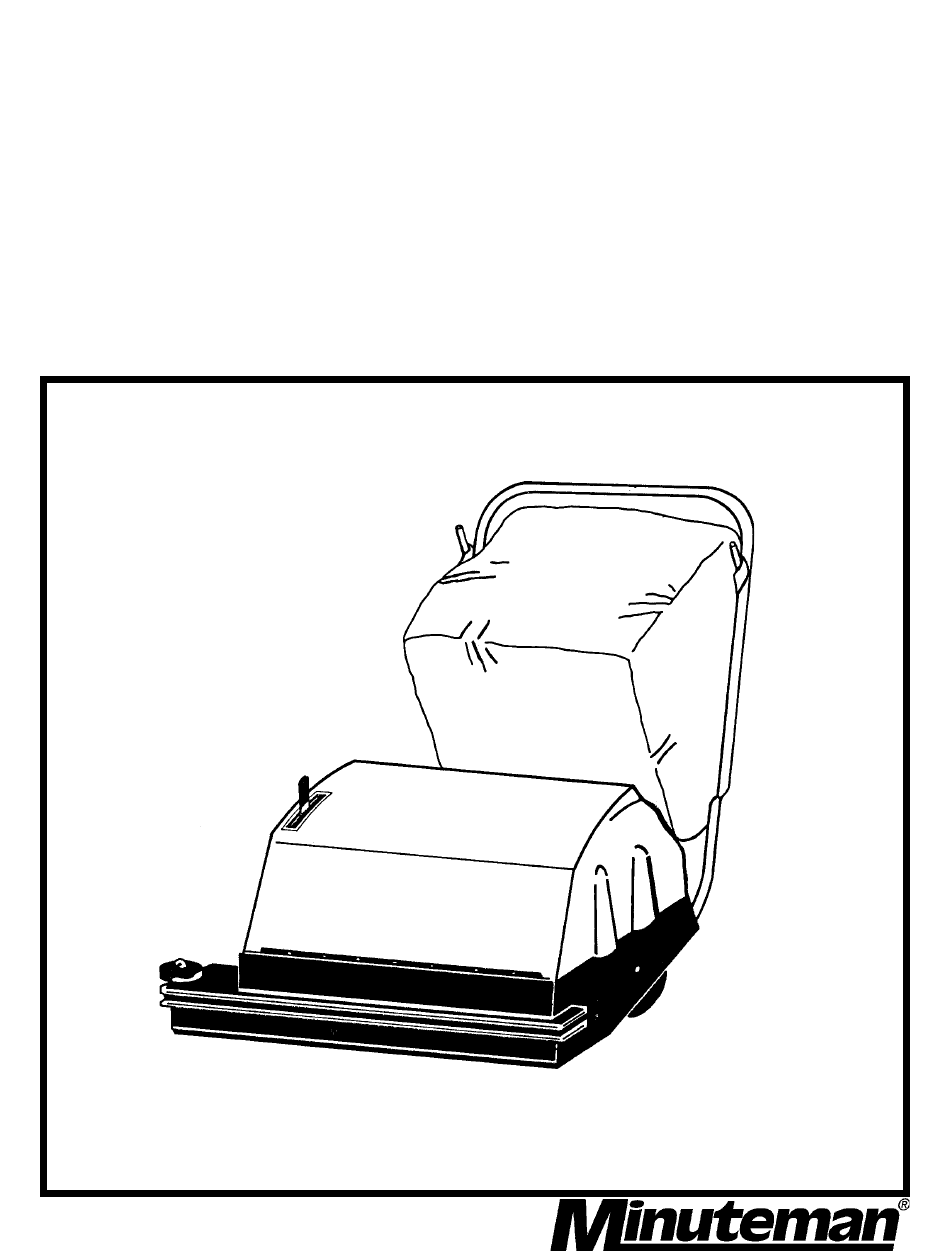

  • Page 1 724 Wide Area Model: Carpet Vacuum MC827825 115V MC828238 230V Electric OPERATION SERVICE PARTS CARE Revised 5/02...
  • Page 2 FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock or injury: • Do not leave appliance plugged in. Unplug from outlet when not in use and before servicing. WARNING To avoid electric shock, use indoors only.
  • Page 3: Electrical - 115 Volt

    OPERATING INSTRUCTIONS INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivering carrier who should be notified immediately. Read all instructions carefully before operating. WARNING To avoid electric shock, use indoors only.
  • Page 4: Extension Cords

    MAINTENANCE AND OPERATION INSTRUCTIONS FOR AV-724-A VACUUM CLEANER Though the AV-724-A is designed primarily for use on carpet, it performs very well on hard surface floors. Sand, dust, paper, and so forth are readily vacuumed from these floors. However, it is not recommended that this machine be used to vacuum metal slugs, metal shavings or similar type debris from floors, either carpeted or otherwise.
  • Page 5: Maintenance

    MAINTENANCE a) Keep filter bag clean. b) A drop of number 30 oil should be applied to the caster bearings and main wheel axles, two or so times a year. c) To replace brush, remove brush drive belt from motor pulley by rotating motor shaft by hand and pulling outwardly on belt.
  • Page 8 *100 830786 Bag, Cloth 712905 Nut-Hex 10-24 832206 Strain Relief 712908 Nut-Flanged Wizz 10-24 832963 Handle 715005 Decal, Minuteman 833472 End Cap 715029 Decal, Serial Name Plate 833695 Cover Plate 740015 Term, Ring #10 833928 Handle Adj. 808697 Clamp Cord 833926 Mount Handle Adj.
  • Page 9: Parts List

    Fan Assembly No. 827880 PARTS LIST Item Part No. Qty. Description 827881 Housing, Fan (bottom) 827883 Housing, Fan (top) 808724 801535 Bearing Ball 808733 Ring, Retaining 808734 Pulley, Fan 829183 Shaft, Bearing 808821 829285 Spacer 710751 Screw (1/4 - 20 - 3/4) 811441) 711536 Lock Washer (1/4 STD) (811889) 711015...
  • Page 10 Brush Assembly No. 724007 PARTS LIST Item Part No Description 711162 Screw (#10 x 1 1/4) 711553 Washer, Helical .20 x .37 712318 Flat Washer (1 1/8 OD x 3/4 x 1/8) (812121) 724005 Static Free Brush Core 827894 Cup, Bearing 827896 Cover, Bearing 724006...
  • Page 11: Limited Warranty

    Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.

This manual is also suitable for:

Av-724-aAv-747-aMc827825Mc828238
