5. Mounting Options

CAUTION: To prevent electrical shock, ensure electricity has been turned off
at the circuit breaker before beginning.
If there isn't an existing UL/cUL listed outlet box, please refer to the following
instructions. Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and support
structure must be able to fully support the moving weight of the fan (at least
35 lbs/15.9 kg). Do not use plastic outlet boxes. Use only UL/cUL listed outlet
boxes marked
"FOR FAN SUPPORT. "
Secure the outlet box directly to the building structure.
Use appropriate fasteners and building materials. The outlet box
and its support must be able to fully support the moving weight
of the fan (at least 35 lbs). Do not use plastic outlet boxes.

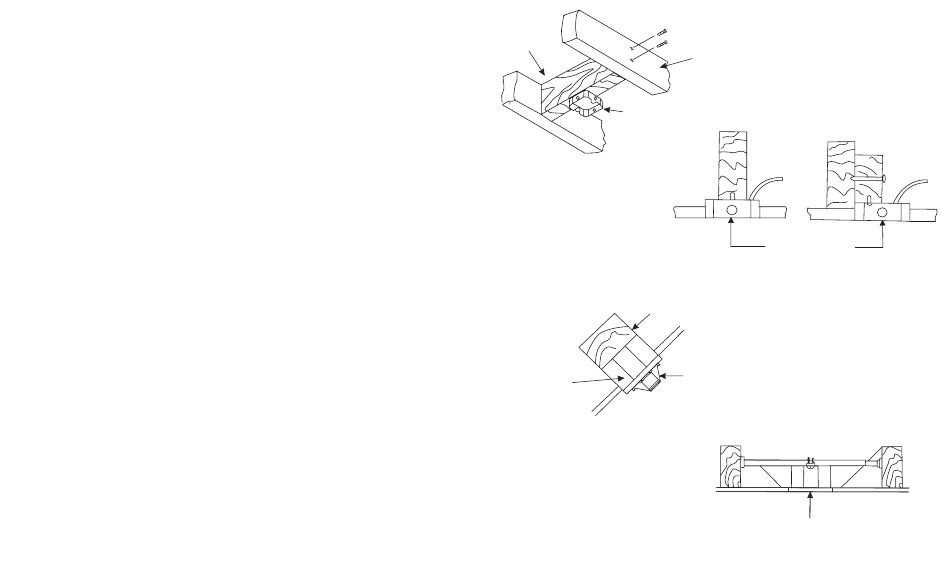

Figures 1-4 are examples of different ways to mount the
outlet box.
NOTE: To hang your fan where there is an existing fixture but no ceiling joist,
you may need an installation hanger bar.
NOTE: Downrod fans can be suspended up to a maximum recommended
length of 72" using additional downrods
(sold separately) and the included 80" lead wire.
NOTE: The sloped ceiling kit (sold separately) is required for sloped ceiling
applications, and will accommodate slopes up to 45° (FIG.3).
NOTE: You may need a longer downrod to maintain proper blade clearance
when installing on a steep, sloped ceiling (FIG. 3).
8
Support
Brace
Outlet Box
FIG. 1
SLOPED CEILING
MAX 30° ANGLE
Provides Strong Support
Recessed
Outlet Box
FIG. 3
Joist
Outlet Box
FIG. 2
Mounting Bracket
Outlet Box
FIG. 4
FR-W 1922-56L
