8. Hanging the fan
1.

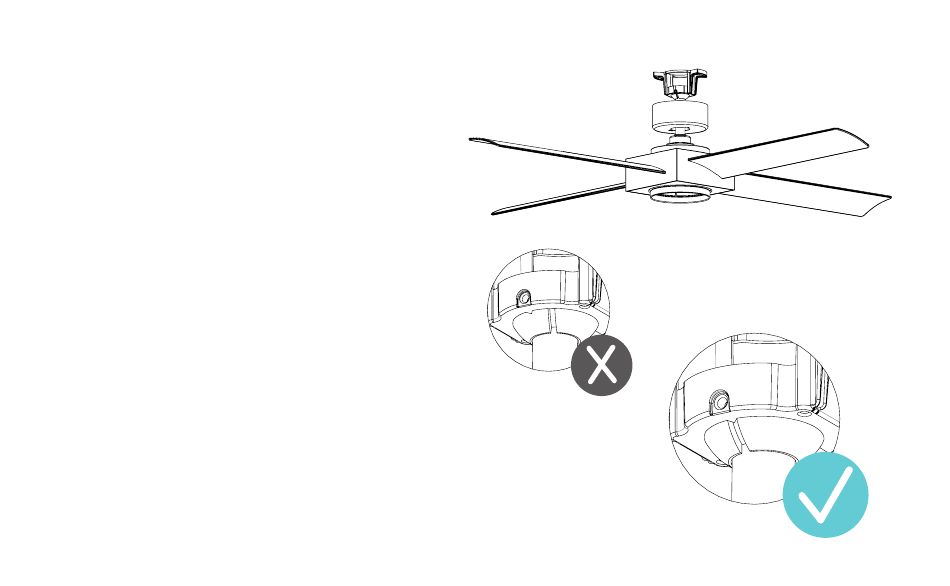

Carefully lift the fan motor assembly up to the
mounting bracket and seat the hanger ball in the
mounting bracket socket. Make sure the tab on the
mounting bracket socket is properly seated in the
groove in the hanger ball (FIG.10). Rotate the socket
assembly until the ball drops and locks into the
hanger bracket screw.
2.
Secure the safety cable to the building structure
using spring washer, flat washer, and wood screw
provided.
12
(cont.)
FIG. 10
F R -W 1 9 22 - 5 6L
