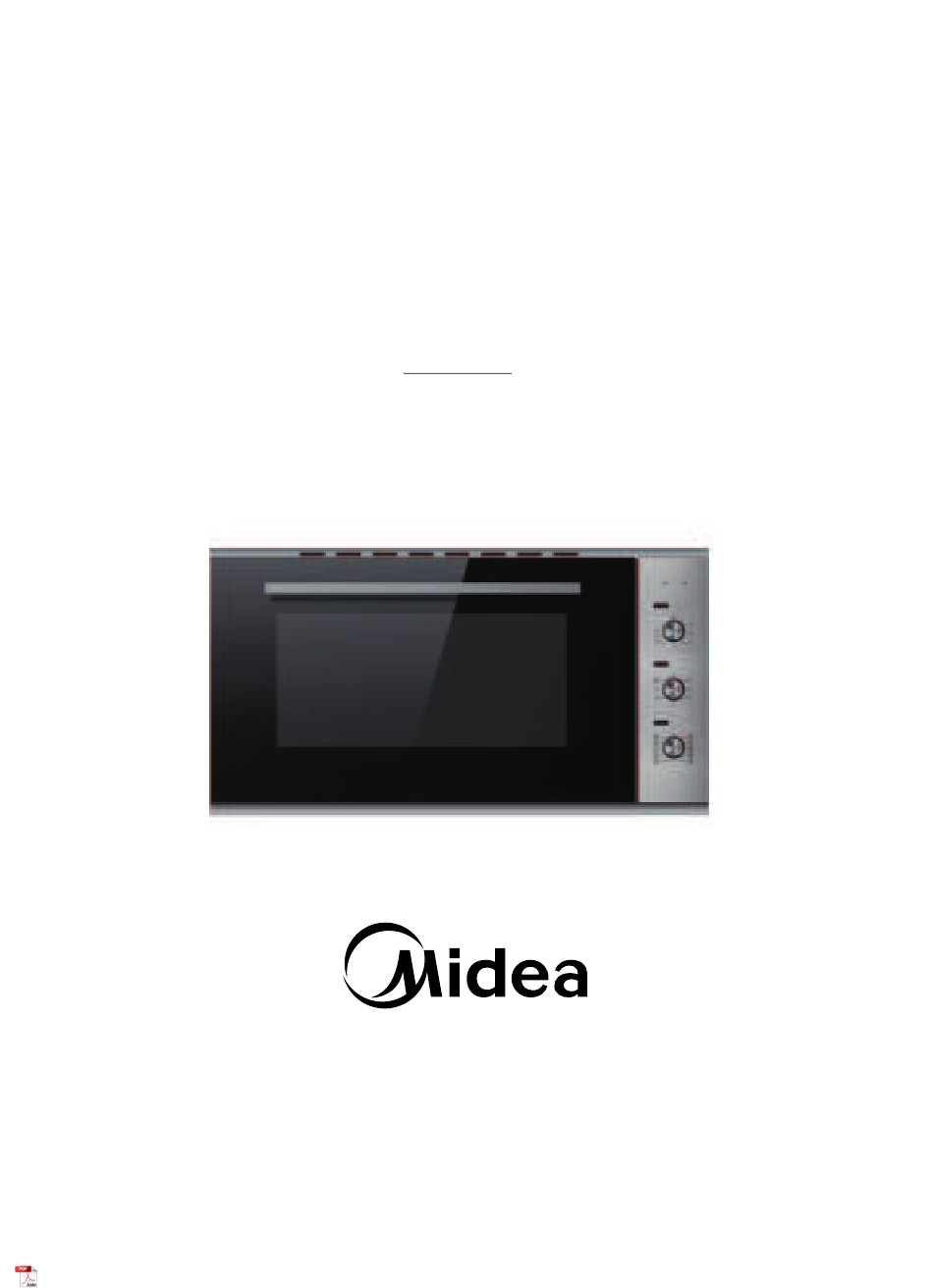

- Page 1 Midea Built-in Electric Oven Instruction MODEL : MOC9048BL SAVE THESE INSTRUCTIONS CAREFULLY Read these instructions carefully before using your oven,and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service.
-
Page 2: Table Of Contents
• Never open the casing of the appliance. • The right to warranty is forfeit if the oven is not repaired by Midea authorized technical service. Warning/Caution Important Safety Information General information and tips Environment Information SAFETY INFORMATION •... - Page 3 • The oven must always be used within the limits of normal household use, not for professional use, for cooking, roasting, grilling, thawing dishes, to prepare food for later storage or to dehydrate it. • No other use is permissible. •...
-
Page 4: Safety Instructions
2. SAFETY INSTRUCTIONS 2.1 Installation CAUTION! • The appliance must be installed by skilled personnel. • Remove all packaging materials. • Do not install or use the appliance if it is damaged. • Observe the instructions given together with the appliance. •... - Page 5 • Switch off the appliance after each use. • Take care when opening the door of the appliance when it is in operation. Hot air can escape. • Do not turn on the appliance with wet hands or when there is contact with water. •...
- Page 6 2.5 Interior light CAUTION! Risk of electric shock. • The light bulbs used in this appliance are special lamps for electric household appliances. Do not use them for home lighting. • Before replacing the light bulb, disconnect the appliance from the electric mains. •...
-
Page 7: Product Description

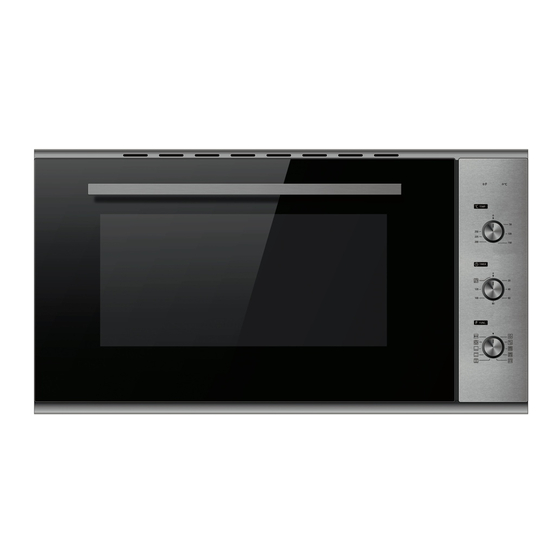

3. PRODUCT DESCRIPTION 3.1 Overview 1) Control Panel 2) Functions Knob 3) End-of-Cooking Timer Knob 4) Temperature Knob 5) Temperature °C indicator / symbol / warning light 6) F switch indicator / symbol / warning light 7) Lamps 8) Heating element 9) Fan 10) Rack Positions 11) Shelf support (removable) - Page 8 Oven function Application Off: The appliance is switched off. Oven Lamp: To switch on the lamp without a cooking function. Defrost: To thaw eg. meat, poultry, bread and desserts. The fan causes the warm air to wrap around the food For roasting large cuts of meat or poultry on one rack position only.
- Page 9 CAUTION! • To use the oven in manual operation, that is without the end-of-cooking timer, you need to make the pointer of the knob match the fixed symbol on the front panel. • When the oven is switched off, the end-of-cooking timer can be used as a normal timer.
- Page 10 TELESCOPIC RAILS (optional: only for some models) • The oven is equipped with telescopic rails for positioning either the wire Rack or the dripping pan (Fig. a) • You can change the position of the rail and move it onto every level of the shelf support according to the type of food to be cooked (Fig.
-
Page 11: Preparing For First Use
• Insert the end of the spit rod into the rotisserie motor located on the • right-hand side of the oven compartment (see image below) • Insert the other end of the spit rod into the spit support previously mounted on the left-hand side of the compartment. -
Page 12: Cleaning And Care
9. The accessories may get hotter than usual. 10. The oven can produce an unpleasant odour and smoke. 11. This is not a malfunction. 12. Make sure the airflow inside the room is adequate. 5. CLEANING AND CARE CAUTION! • Refer to the chapters on safety. - Page 13 5.2 Notes on cleaning • Clean the oven door only with a moist sponge. Dry it with a soft cloth. • Do not use steel wool, acids or abrasive products that could damage the surface of the oven. Clean the oven control panel, taking the same precautions.
- Page 14 5.5 Removing and Cleaning the oven door • The oven door is equipped with three glass panels. You can remove the oven door and the internal glass panels to clean them. • The oven door could close again if you try to remove the glass panels before taking off the oven door. CAUTION! •...
-
Page 15: Troubleshooting
5.6 Changing the light bulb CAUTION! • WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. • Wear protective gloves to change the light bulb. • To make the replacement, proceed as follows: •... -
Page 16: Energy Efficiency/Cleaning And Care
7. CLEANING AND CARE 7.1 Energy saving The appliance is equipped with features to help you save energy during everyday cooking. General tips • Ensure that the oven door is closed properly when the appliance is in operation and keep it closed as much as possible during cooking. - Page 17 GENERAL DIMENSIONS OF PRODUCT AND CABINET 60 mm(*) 60 mm(*) (*) Through the hole diameter 60 mm it is imperative to pass the electric cable of the oven. CONNECTING TO THE ELECTRIC MAINS • The oven is provided with a three-pole power cable with free terminals. •...
- Page 18 EARTHING Nominal Power 2.92 kW 12.70 A 230 V ~ Supply cord: 3 x 1.5 mm type H05VV-F or H05RR-F • The system must have an earthing wire, LIVE distinguished by the yellow-green colour of the protective sleeve. Components Oven Nominal Power •...
-
Page 19: Cooking Guide Table
Cooking guide table Dishes Weight (kg) Accessories pre-heating Rack Function Temperature Time (minutes) position (°C) minutes from bottom Cheese Cake 1,5 – 4 Kg Cookware, uncovered onto the wire rack 50-70 Roast Beef 1 – 4 Kg Cookware, uncovered onto the wire rack 25-30 Meatloaf 1 –... - Page 20 3 years for the life of the appliance. FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA Midea Appliances Australia 280 Wickham Rd，Highett VIC 3190 www.midea-australia.com.au 1300 793 216...
