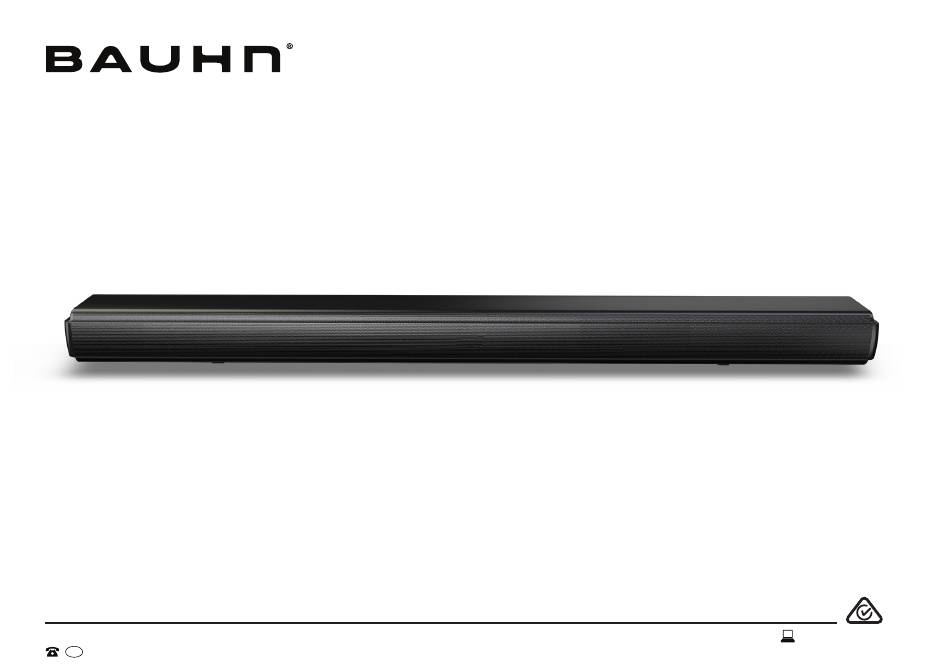

- Page 1 2.0 Channel Soundbar MODEL: ACSB-0122 User Manual AFTER SALES SUPPORT tempo.org/support 1300 002 534 MODEL: ACSB-0122 PRODUCT CODE: 707915 01/2022...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Operation General Operation Unpack and Prepare Input Modes What's in the box Bluetooth ® Important Tips Pairing Bluetooth Devices ® Installation - Free Standing Bluetooth Playback ® Installation - Wall Mounted Troubleshooting Wall Mounting Instructions Connect to Power Specifications Controls and Connections Compliance and Responsible Disposal... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new Soundbar, check you have everything: A. 2.0 Channel Soundbar B. AAA Activ Energy Batteries C. Remote Control D. 3.5mm to RCA Audio Cable E. Optical Cable F. AC Power Adaptor G. -
Page 5: Important Tips
Wall Mount Installation Kit The illustration below shows the contents of the wall mount installation kit. These are the parts you will need when wall mounting the soundbar. Some parts are not shown at the same scale. 1. Plastic anchor (4) 2. -
Page 6: Installation - Free Standing
Installation - Free Standing This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Place on a secure, flat surface. Make sure the soundbar is standing on its rubber pads (on the left and right sides of the soundbar) and no other area of the bottom of the soundbar is touching the surface. -
Page 7: Installation - Wall Mounted
Installation - Wall Mounted Wall mounting instructions are on the following pages. • Wall mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall. -
Page 8: Wall Mounting Instructions
Wall Mounting Instructions Use a pencil to make drill hole marks on the wall for the plastic anchors. Make sure the marks are level before drilling. Use a 6mm bit and power drill (not supplied) to drill holes on the marks. Note: For a wood stud wall, use an electronic stud detector to locate the centre of the framing studs before marking and drilling the holes. - Page 9 For a concrete or brick wall: Insert the supplied plastic anchors into the holes and push in until they are flush with the wall. Drive the supplied long screws through the wall mount adaptors and into the plastic anchors and tighten until the screw head is approximately 3mm from the wall.
-
Page 10: Connect To Power
Connect to Power Make sure the power switch is switched off at the power outlet until you have finished connecting your cables. Rear view Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. -
Page 11: Controls And Connections
Controls and Connections Get to know your Soundbar Remote control sensor LED status indicator Front view Buttons on the Soundbar 1. POWER : Press to turn on/off. 2. MODE : Press to select preferred input source. Press and hold to enter Bluetooth pairing. -
Page 12: Rear Ports On The Soundbar
Rear Ports on the Soundbar Before connecting the AC power adaptor cord, ensure you have DC IN completed all other connections. POWER Connect the AC power adaptor cord to the DC IN socket first, then plug in the AC power adaptor to the mains supply socket. LINE IN Use the supplied 3.5mm to RCA cable to connect Audio to your TV SOUND... - Page 13 Rear Ports on the Soundbar HDMI (ARC) To use the ARC function, make sure the soundbar's HDMI (ARC) socket is connected via a HDMI cable (not included) to the HDMI (ARC) socket of your ARC compliant TV. Then just use your TV's remote control to adjust the volume output (VOL +/–...
-
Page 14: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 15: Using The Remote Control
Using the Remote Control To use the remote control, point it towards the remote control sensor at the front of the soundbar. The remote control will not operate if its path is blocked. The remote control has a range of up to about 6 metres from the soundbar at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 16: Remote Control Overview
Remote Control Overview (POWER) : Switch the MODE : Switch between soundbar to On or Standby the input sources : Skip to the next track : Increase the volume level : Skip to the previous track : Decrease the volume level TREBLE : Increase the treble : Play/Pause/Mute/Unmute BASS: Increase the bass... -
Page 17: Operation
Operation Input Modes General Operation LED status indicator Function Action Front view Input LED Status Indicator Press the POWER button on the soundbar, or press the Turn the Soundbar On (POWER) button on the remote control. Bluetooth pairing ready Flashing blue ®... -
Page 18: Bluetooth
® mode automatically. it to search for compatible devices. Select 'BAUHN ACSB-0122' from the list of found devices. If a mobile phone on which you are playing music Note: Only one playback unit can be connected to receives a call, the music will be interrupted. -
Page 19: Bluetooth ® Playback
Bluetooth Playback ® Function Action Increase the Volume Press and hold the VOL button on the soundbar or the button on the remote control. Decrease the Volume Press and hold the VOL button on the soundbar or the button on the remote control. Play/Pause Press the button on the remote control. -
Page 20: Troubleshooting
Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 002 534. Problem Solution • Ensure that the AC power adaptor is properly connected. No power •... - Page 21 Problem Solution • Make sure the input source is set to ARC; the LED status indicator will light up purple. • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. No sound in HDMI ARC •...
-
Page 22: Specifications
Bluetooth pairing operation ® Up to 10 metres 1300 002 534 range – distance tempo.org/support Bluetooth pairing name BAUHN ACSB-0122 ® Distributed by Tempo (Aust) Pty Ltd, Bluetooth pairing password 0000 ® PO Box 132, Frenchs Forest NSW 1640 Bluetooth version ®... -
Page 23: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 62368.1 to ensure the safety of the materials and can usually be recycled. Please ensure product. -
Page 24: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 25: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 26 Notes...
- Page 27 Notes...
- Page 28 Online support Visit bauhn.com.au for software updates to keep your soundbar up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns tempo.org/support Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
