Summary of Contents for Bauhn ASBEB-0919

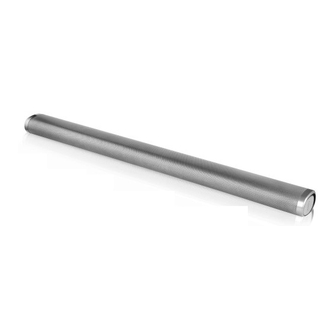

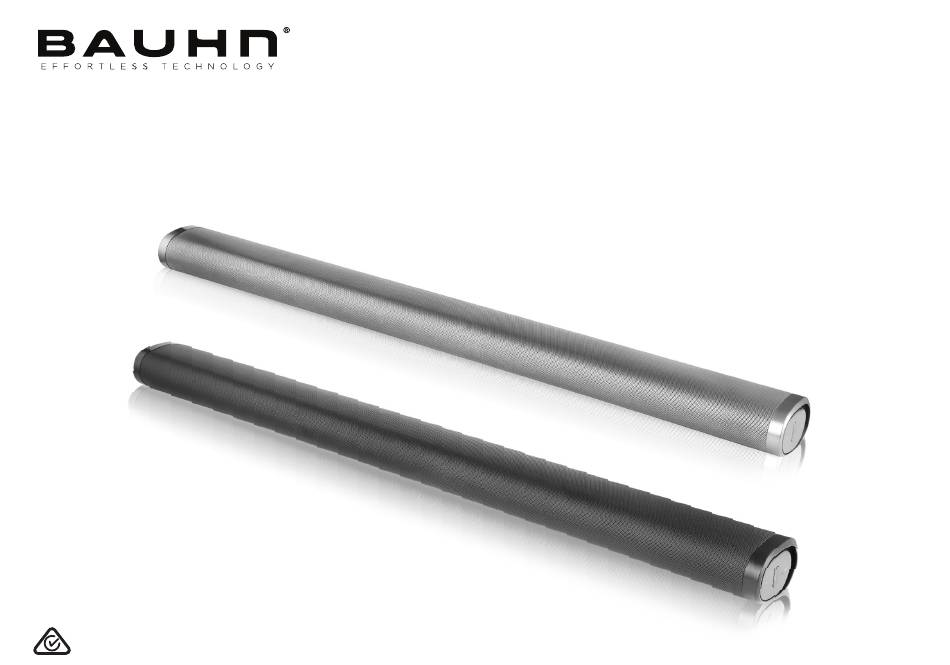

- Page 1 2.0 Premium Bluetooth Soundbar ® with Enhanced Bass MODEL: ASBEB-0919 User Manual...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new Bauhn product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Operation General Operation Unpack and Prepare Input Modes What's in the box Bluetooth ® Important Tips Pairing Bluetooth Devices ® Installation Bluetooth Playback ® Wall mounting instructions Troubleshooting Connect to power Controls and Connections Specifications Get to know your Soundbar Compliance and Responsible Disposal Buttons on the Soundbar Warranty Information... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new Soundbar, check you have everything: A. Soundbar B. Remote Control C. 3.5mm AUX Cable D. Optical Cable E. Installation Kit F. AAA Batteries G. AC Power Cable H. Quick Start Guide Warranty Certificate J. -
Page 5: Important Tips
Important Tips • Place the Soundbar on a level surface. • Place the Soundbar away from any source that may generate heat or vibrations. • Make sure there is enough space around the Soundbar for airflow. • The remote control works up to 6 metres away from the Soundbar. •... -
Page 6: Installation
Installation This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Place on a secure, flat surface. Make sure the soundbar is standing on its rubber pads (on the left and right sides of the soundbar) and no other area of the bottom of soundbar is touching the surface. - Page 7 Wall mounting instructions are on the following pages. • Wall-mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall.
-
Page 8: Wall Mounting Instructions
Wall mounting instructions Fix the supplied wall-mounting brackets (marked with "s") to the bracket fixing holes on the back of the soundbar with the supplied short screws. Affix the brackets as shown in the illustration (left). 350mm Use a pencil to make drill hole marks on the wall for the anchors. - Page 9 Place the soundbar with wall-mounting brackets (marked with "S") onto the mounting brackets (marked with "W"), which are fixed to the wall. Use the included short screws to tighten them. Make sure the soundbar is attached firmly to the wall. Insert the included plastic anchors into the holes and push in until they are flush with the wall.
-
Page 10: Connect To Power
Connect to power Make sure the soundbar is switched off at the power outlet until you have finished connecting your cables. Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. 10 | UNPACK AND PREPARE... -
Page 11: Controls And Connections
Controls and Connections Get to know your Soundbar Front LED status/input display Good to know: The LED display on the soundbar will turn off automatically after 5 minutes of no operation. Buttons on the Soundbar : Decrease the volume level. (Power button/Mode): Press to turn on. -
Page 12: Rear Ports On The Soundbar
Rear Ports on the Soundbar The ARC (Audio Return Channel) function allows you to send HDMI (ARC) audio input from an ARC-compliant TV to an ARC-compliant SOUND audio device (e.g. soundbar) without the need for an additional audio cable connection. Connect an OPTICAL cable (included) to the OPTICAL OUT Optical SOUND... - Page 13 Rear Ports on the Soundbar HDMI (ARC) To use the ARC function, make sure the soundbar's TO TV (ARC) socket is connected via HDMI cable (not included) to the HDMI (ARC) socket of your ARC compliant TV. Then just use your TV remote control to adjust the volume output (VOL +/–...
-
Page 14: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 15: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the soundbar. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from the soundbar at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 16: Remote Overview
Remote overview MODE POWER: Switch the unit to ON or Standby. : Mute the sound. MODE: Switch between the input : Skip to the next track. sources. : Start or pause playback. : Increase the volume level. TREBLE +: Increase the treble. TREBLE : Skip to the previous track BASS +: Increase the bass. -
Page 17: Operation
Operation Input Modes Input Display General Operation Bluetooth® Function Action Optical Press the POWER /MODE button on the right side of the Turn the soundbar ON soundbar, or press the POWER Coaxial button on the remote control to switch the soundbar on. HDMI Press and hold the POWER MODE button on the sound bar... -
Page 18: Bluetooth
Activate Bluetooth on your compatible device, and set it mode automatically. to search for compatible devices. Select the speaker name: 'BAUHN ASBEB-0919' from the list of found devices. If a mobile phone on which you are playing music Note: Only one playback unit can be connected to receives a call, the music will be interrupted. -
Page 19: Bluetooth ® Playback
Bluetooth Playback ® Function Action Increase the Volume Press the button on the unit or on the remote. Decrease the Volume Press the button on the unit or on the remote. Play/Pause Press on the remote. Skip/Rewind Press on the remote to skip tracks. Un-pair a Bluetooth®... -
Page 20: Troubleshooting
Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the AC power cable is properly connected. No power •... - Page 21 Problem Solution • Make sure the input source is set to ARC; the LED will display 'ARC'. • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. •...
-
Page 22: Specifications
(either side of sensor) Bluetooth pairing operation range For Technical Support: Up to 10 metres – distance Ph: 1300 886 649 Bluetooth pairing name BAUHN ASBEB-0919 W: www.tempo.org Bluetooth pairing password 0000 E: info@tempo.org Bluetooth version Distributed by Tempo (Aust) Pty Ltd,... -
Page 23: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 60065 to ensure the safety of the materials and can usually be recycled. Please ensure product. -
Page 24: Warranty Information
Warranty Information Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 25: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 28 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
