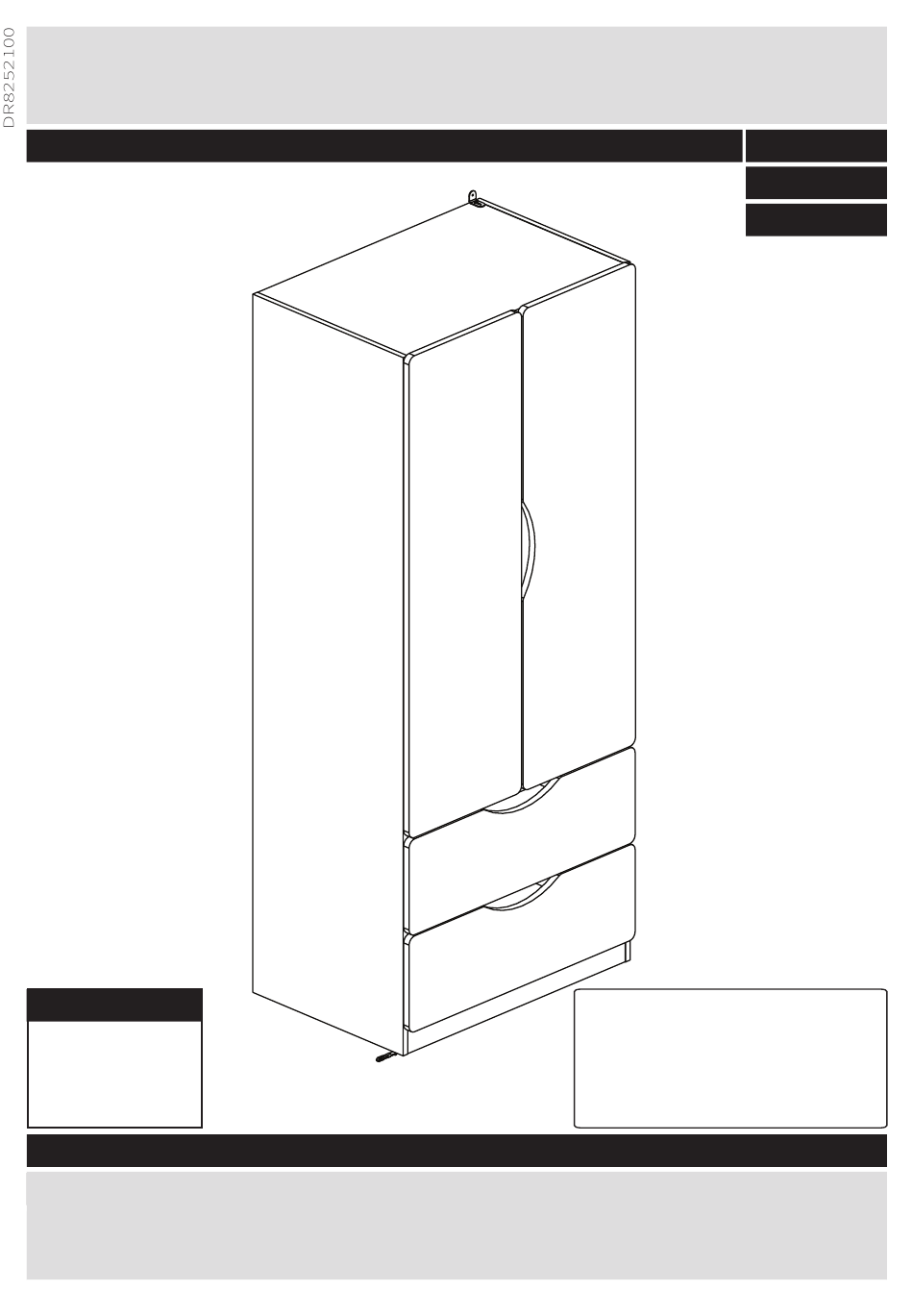

Tolga - 22R
Assembly Instructions
Dimensions
Width - 75cm
Depth - 51,75cm
Height - 180cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk
or email: Help@ClickSpares.co.uk (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928
For any other queries please contact the Customer Helpline on: 0345 640 2020
- Please keep for future reference
499/8754
BLUE
455/2200
OAK
459/2765
PINK
Tip : To prevent damage,
we recommend that you
build your unit on the
carton(s) it was packed in.
499/8754
455/2200
459/2765
Issue 1 - 04/11/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Tolga-22R
Summary of Contents for Argos Tolga-22R
- Page 1 Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk (quoting your original order number) Alternatively, call the Spares Helpline on: 0370 112 1928...
-
Page 2: Handy Hints
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand •To reduce the components and tools listed or put weight on the product, likelihood of on the following pages. - Page 3 Components - Panels For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the panels listed below Left Side x 1 Right Side x 1 Back x 1 (1800 x 497 x 15mm) (1800 x 497 x...
-
Page 4: Tools Required
Components - Fittings For damaged or missing parts, please visit: www.argos-support.co.uk or email: Help@ClickSpares.co.uk Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. - Page 5 Assembly Instructions Step - 1 Insert large locking nuts C into plinth 9. Make sure the ‘arrow’ on locking nuts C points towards the hole in the edge of 9. Put drop of glue L into the 2 holes of plinth 9. Put dowels F into the holes of plinth 9.
- Page 6 Assembly Instructions Step - 3 Attaching runners a: Fix runner left part A N on left side 1 as shown usesing 10mm fixing screw drawer E into left side 1. Note: look carreful for the right postion. Screw 24mm locking Finished screw A into left side 1.
- Page 7 Assembly Instructions Step - 5 Insert large locking nuts C into top 5. Make sure the ‘arrow’ on locking nuts C points towards the hole in the edge of 5. Step - 6 Attaching panels Put drop of glue L into the 2 holes of left side 1 and right side 2 on the bottom of the sides.
- Page 8 Assembly Instructions Step - 7 Fitting back panel Attach back 3 to the back with the coloured surface facing the inside using nails G. Use nail holder M to hold the nails G vertical and at correct distance as you secure the back 3. Nails G should be spaced about 150mm apart.
- Page 9 Assembly Instructions Step - 9 Preparing drawer Insert locking nuts B into left drawer side 0 and right drawer side @. Make sure the ‘arrow’ on locking nuts B points towards the hole in the edge of 0 and @. Put drop of glue L into the 3 holes of left drawer side 0 and right drawer side @.
- Page 10 Assembly Instructions Step - 12 Turn over drawer. Fix runner left part B O on left drawer side 0 as shown using 12,5mm pozi screw D. Fix runner right part B Q on right drawer side @ as shown using 12,5mm pozi screw D.
- Page 11 Assembly Instructions Step - 13 Hanging doors With help, slot hinge door U onto hinge back T. Note: Look first to ‘assemble’ on page ‘hinge 20kg instructions’ For adjusting the doors 4, # see ‘adjustment’ on page ‘hinge instructions’ Inserting hanger rail Insert hange rail large S into hanger rail support M.
- Page 12 Assembly Instructions Step - 14 Inserting drawers as shown. Position L-bracket J on top 5 as shown, fix using screw F. Note: there is no pre-drilled hole for screw F. Use V to fix on the wall, please see last page for more information.
- Page 13 A Guide to - Hinge instructions Assemble Hinge back x 6 Hinge door x 6 a: Hook hinge door correctly to the hinge back as shown. b: Tighten screw to lock hinges in position. Note: The nick screw of hinge door should slide into the recess of hinge back.
-
Page 14: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
