Introduction

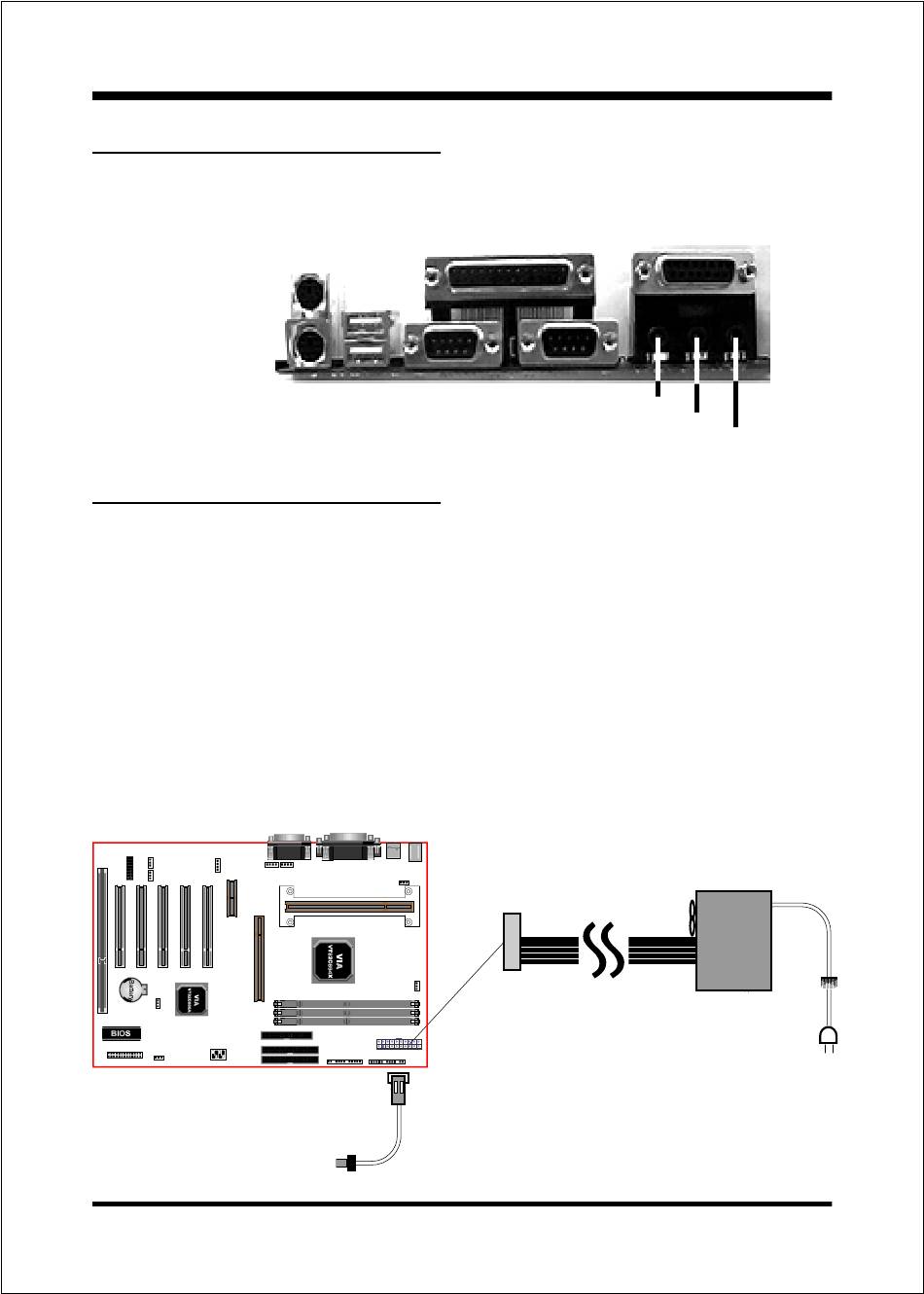

I/O Shield Connector

The EP-3VBA2/6VBA2 is equipped with an I/O back panel. Please use the
appropriate I/O shield (figure 3).
PS/2 Mouse
PS/2
KEYBOARD

Power-On/Off (Remote)

The EP-3VBA2/6VBA2 has a single 20-pin connector for ATX power supplies.
For ATX power supplies that support the Remote On/Off feature, this should be
connected to the systems front panel for system Power On/Off button. The
systems power On/Off button should be a momentary button that is normally open.
The EP-3VBA2/6VBA2 has been designed with "Soft Off" functions. You can turn
Off the system from one of two sources: The first is the front panel Power On/
Off button, and the other is the "Soft Off" function (coming from the EP-3VBA2/
6VBA2's onboard circuit controller) that can be controlled by the operating
system. Windows 95/98 will control this when the user clicks that they are ready
to Shutdown the system.
Case (chassis) Power
ON/OFF button (J 3)
Figure 4: Simple ATX Power ON/OFF Controller
Page 1-6
parallel port
USB port
COM1
Figure 3: I/O back panel layout
J 3
EP-3VBA2/6VBA2
Joystick/Midi
COM2
Speaker
Line_in
ATX
POWER SUPPLY
MIC
