ASSEMBLY INSTRUCTIONS

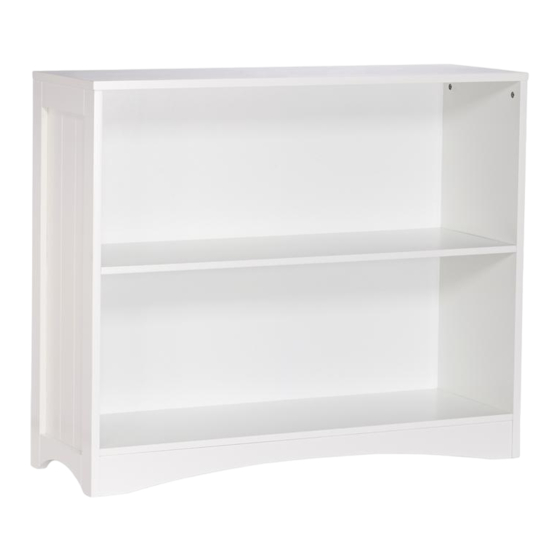

RiverRidge
Horizontal Bookcase
®
ITEM #: 02-022 White
ITEM #: 02-028 Espresso
ITEM #: 02-148 Gray
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over.
Don't use this item for a TV stand or place heavy objects on top of item.
Always use angle-braces or anchors to secure furniture to the wall.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge 02-022
Summary of Contents for RiverRidge 02-022
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge Horizontal Bookcase ® ITEM #: 02-022 White ITEM #: 02-028 Espresso ITEM #: 02-148 Gray ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 This product is suitable for children 3 years and older. THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS OR 75 POUNDS TOTAL WEIGHT. IF OVERLOADED WITH MORE THAN 25 POUNDS PER SHELF OR 75 POUNDS TOTAL WEIGHT, SHELF MAY TIP FROM THE WALL AND CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST DESCRIPTION Top Board Left Side Panel Right Side Panel Bottom Board Shelf Upper Back Panel Bottom Trim Lower Back Panel... - Page 4 PARTS LIST PARTS DESCRIPTION 9PCS Wood Dowel Cam Bolt 12PCS Cam Lock 12PCS Screw (2.5x14mm) 26PCS Adjustable Anchor Bracket Plastic Anchor Screw (4x30mm) Screw (4x10mm) TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER(NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Screw 4 cam bolts (B) into cam bolt holes on left side panel (2) and tighten. 2. Screw 4 cam bolts (B) into cam bolt holes on right side panel (3) and tighten. STEP 2 1. Insert 1 screw (J) through hole on adjustable anchor bracket (F), then tighten to top board (1). 2.
- Page 6 STEP 3 1. Insert 1 wood dowel (A) into dowel hole on bottom of right side panel (3). 2. Attach shelf (5) to right side panel (3) by inserting 2 cam bolts into cam lock holes on shelf (5). 3. Insert 2 cam locks (C) into cam lock holes on shelf (5) and rotate clockwise to secure cam bolts.
- Page 7 STEP 5 1. Place pre-assembled bookcase up right and insert 4 wood dowels (A) into dowel holes on top of left side panel (2) and right side panel (3). 2. Attach top board (1) to bookcase by inserting cam bolts (B) into cam lock holes on both side panel (2), (3) and inserting wood dowels (A) into top board (1).
-
Page 8: Care Instructions
STEP 7 OPTION #1 OPTION #2 DRYWALL DRYWALL WOOD STUD SCREW WALL ANCHOR ONLY WITH SCREW Option #1: Securing to Drywall 1. Position cabinet against wall in desired location. Using a pencil, make a small mark on wall through hole on bracket (F). Move cabinet away from wall and screw 1 plastic anchor (G) into wall on pencil mark. 2. - Page 9 ® Thank you for purchasing this RiverRidge ® Home item. We hope you enjoy it and consider purchasing other RiverRidge ® items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
