RiverRidge 02-251 Assembly Instructions Manual

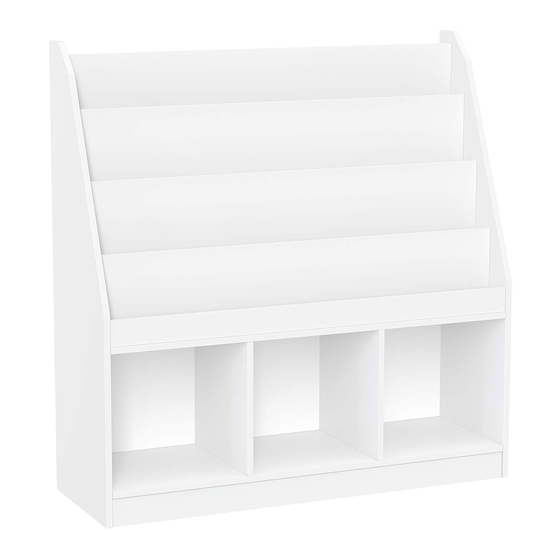

Kids bookrack with three cubbies
Hide thumbs

Advertisement

Quick Links

Download this manual

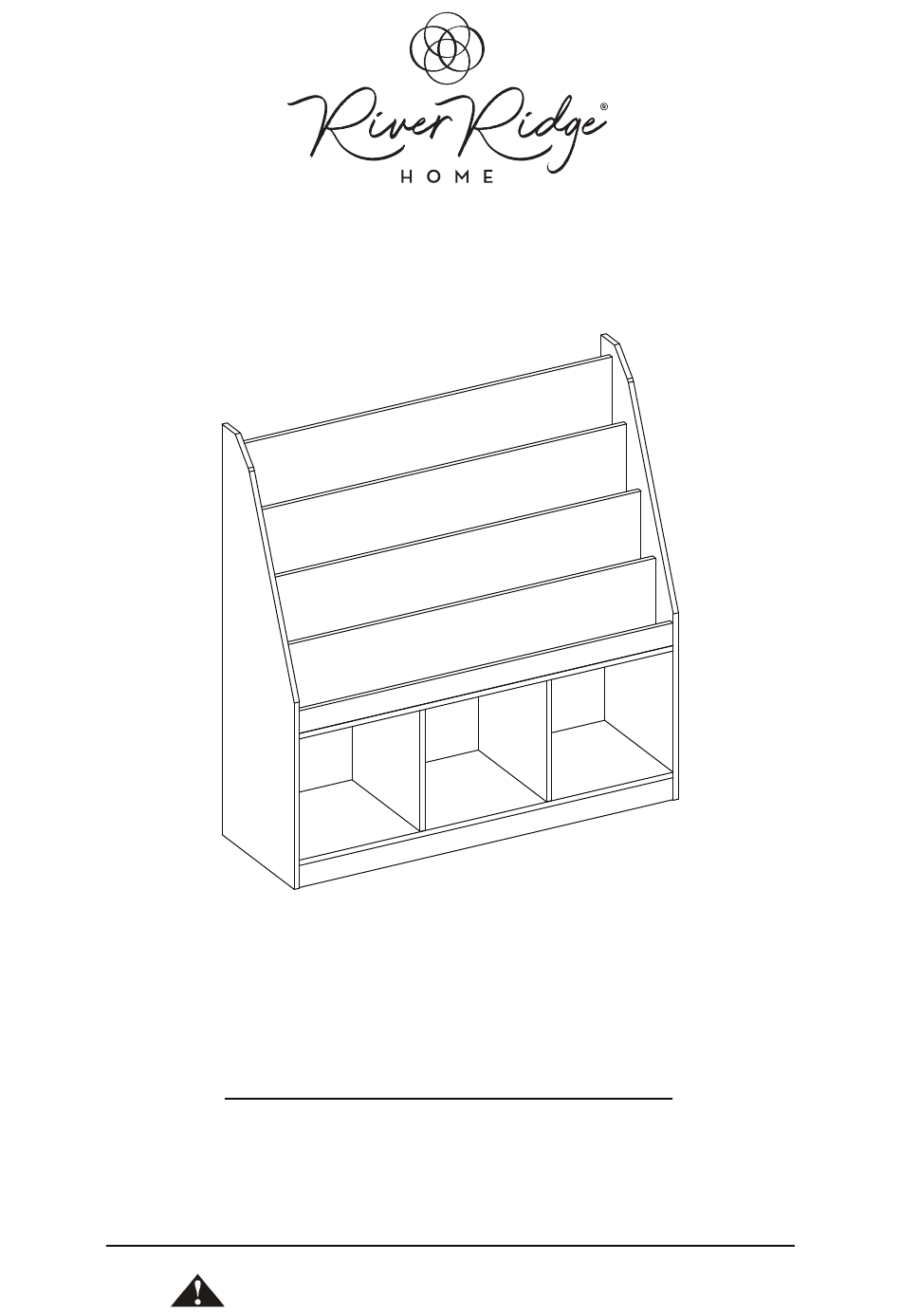

ASSEMBLY INSTRUCTIONS
RiverRidge
Kids Bookrack with Three Cubbies
®
ITEM #: 02-251 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
This product is suitable for children 3 years and older.
SEE FULL WARNING ON PAGE 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 02-251 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge 02-251

Summary of Contents for RiverRidge 02-251

  • Page 1 RiverRidge Kids Bookrack with Three Cubbies ® ITEM #: 02-251 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
  • Page 2 WARNING SERIOUS OR FATAL INJURIES CAN OCCUR FROM FURNITURE TIP-OVER. IN ORDER TO PREVENT OVERTURNING, THIS PRODUCT MUST BE USED WITH THE TIP-OVER RESTRAINTS OR WALL MOUNTING HARDWARE PROVIDED. PLEASE READ WARNINGS BELOW. • Product must be assembled exactly per these instructions. Failure to follow assembly instructions may result in possible risk of injury.

  • Page 3: Parts List

    PARTS LIST DESCRIPTION Left Side Panel Right Side Panel Back Panel #1 Back Panel #2 Back Panel #3 Back Panel #4 3PCS Small Shelf Middle Board Upper Cross Bar 2PCS Divider Board Back Board Bottom Shelf Lower Cross Bar...
  • Page 4 PARTS LIST PARTS DESCRIPTION 22PCS Cam Bolt 22PCS Cam Lock 36PCS Wood Dowel 2PCS Screw (4x10mm) 19PCS Screw (4x35mm) 2PCS Screw (4x30mm) 2PCS Adjustable Anchor Bracket 2PCS Plastic Anchor TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
  • Page 5 STEP 1 Screw 4 cam bolts (A) into cam bolt holes on middle board (8). Insert 4 wood dowels (C) into wood dowel holes on middle board (8), then attach upper cross bar (9) and back panel #4 (6) to middle board (8) by inserting wood dowels (C) into wood dowel holes.
  • Page 6 STEP 3 Insert 2 wood dowels (C) into wood dowel holes on small shelf (7). Attach small shelf (7) to back panel #2 (4) by inserting 2 wood dowels (C) into wood dowel holes on back panel #2 (4). Insert 3 screws (E) through holes on small shelf (7), then tighten to back panel #2 (4).
  • Page 7 STEP 5 Insert 4 wood dowels (C) into wood dowel holes on bottom shelf (12). Attach 2 divider boards (10) to bottom shelf (12) by inserting 4 wood dowels (C) into wood dowel holes on divider boards (10). Insert 4 screws (E) through holes on bottom shelf (12), then tighten to divider boards (10).
  • Page 8 STEP 7 Screw 9 cam bolts (A) into cam bolt holes on left side panel (1). Screw 9 cam bolts (A) into cam bolt holes on right side panel (2). STEP 8 Insert 7 wood dowels into wood dowel holes on left side panel (1). Attach left side panel (1) to assembled unit by inserting cam bolts (A) into cam lock holes and wood dowels (C) into wood dowel holes on assembled unit.
  • Page 9 STEP 9 Slide back board (11) into grooves on bottom shelf (12), middle board (8) and left side panel (1). Insert 7 wood dowels (C) into wood dowel holes on right side panel (2). Attach right side panel (2) to assembled unit by inserting cam bolts (A) into cam lock holes and wood dowels (C) into wood dowel holes on assembled unit.
  • Page 10 STEP 11 OPTION #1 DRYWALL WALL ANCHOR WITH SCREW OPTION #2 DRYWALL WOOD STUD SCREW ONLY Option #1: Securing to Drywall Position bookrack against wall in desired location. Using a pencil, make 2 small marks on wall through holes on brackets (G). Move bookrack away from wall and screw 2 plastic anchors (H) into wall on pencil marks.
  • Page 11 ATTENTION ADULTS: Cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct hazards such as tightening of screws and taking any damaged parts away from children. WARNING Please make sure your item is secured to the wall, per assembly instructions. CARE INSTRUCTIONS: Wipe clean with a water dampened cloth.
  • Page 12 ® Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. ® To order replacement parts at no cost to you,email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
