ASSEMBLY INSTRUCTIONS
®
RiverRidge

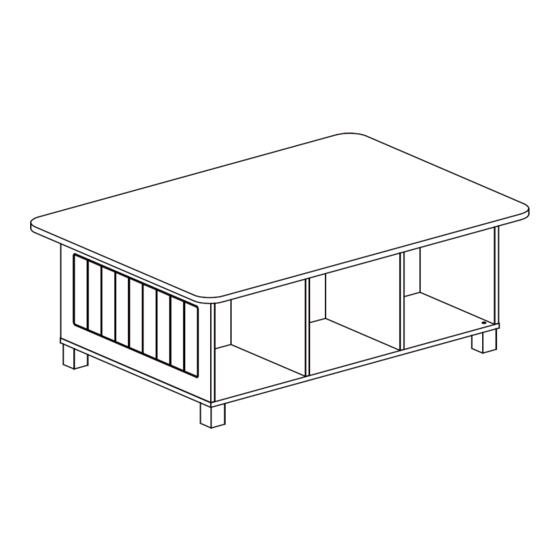

Kids 6 Cubby Storage Activity Table
ITEM #: 02-165 White
ADULT ASSEMBLY REQUIRED
This product requires assembly by an adult because of small parts. Care should be taken
in unpacking and assembling this item to keep small parts away from children. During assembly
children should be kept away from the product due to possible risk of injury.
WARNING
SEE FULL WARNING ON PAGE 2
Young children can be seriously injured or killed if furniture tips over. Don't use
this item for a TV stand or place heavy objects on top of item. Always use
angle-braces or anchors to secure furniture to the wall.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge 02-165
Summary of Contents for RiverRidge 02-165
- Page 1 ® RiverRidge Kids 6 Cubby Storage Activity Table ITEM #: 02-165 White ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of small parts. Care should be taken in unpacking and assembling this item to keep small parts away from children. During assembly children should be kept away from the product due to possible risk of injury.
- Page 2 This product is suitable for children 3 years and older. THIS ACTIVITY TABLE WILL HOLD UP TO 20 POUNDS PER CUBBY AND HAS A TABLETOP CAPACITY OF 75 POUNDS OR A TOTAL OF 195 POUNDS. DO NOT LOAD EACH CUBBY WITH MORE THAN 20 POUNDS OR THE TABLETOP WITH MORE THAN 75 POUNDS.
- Page 3 PARTS LIST DESCRIPTION Top Board Bottom Board 2PCS Side Panel 2PCS Support Board 3PCS Divider Board 6PCS...
- Page 4 PARTS LIST PARTS DESCRIPTION 8PCS Cam Bolt 8PCS Cam Lock 16PCS Wood Dowel Screw (4x35mm) Screw (5x40mm) Allen Wrench TOOLS NEEDED FOR ASSEMBLY: FLAT & PHILLIPS SCREWDRIVER (NOT INCLUDED) THE USE OF A POWER SCREWDRIVER IS NOT RECOMMENDED FOR ASSEMBLY DO NOT USE ITEM IF ANY PARTS ARE MISSING OR DAMAGED To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com.
- Page 5 STEP 1 1. Screw 8 cam bolts (A) into cam bolt holes on top board (1). STEP 2 1. Insert 8 wood dowels (C) into wood dowel holes on top board (1). 2. Attach 2 side panels (3) to top board (1) by inserting wood dowels (C) into wood dowel holes and inserting cam bolts (A) into cam lock holes on side panels (3).
- Page 6 STEP 3 1. Slide 3 divider boards (5) into grooves on side panels (3), support boards (4) and top board (1). STEP 4 1. Attach 6 legs (6) to bottom board (2) by inserting 6 screws (E) through holes on legs (6), then tighten to bottom board (2) with Allen wrench (F).
- Page 7 STEP 5 1. Insert 8 wood dowels (C) into wood dowel holes on bottom board (2). 2. Attach bottom board (2) to side panels (3) and support boards (4) by inserting wood dowels (C) into wood dowel holes on side panels (3) and support boards (4). 3.
- Page 8 Thank you for purchasing this RiverRidge Home item. We hope you ® enjoy it and consider purchasing other RiverRidge items. To order replacement parts at no cost to you, email customer.service@ssi-rr.com, call 1-(844)-223-5201 or order parts online at www.riverridgehome.com. Only valid in the United States.
