This product requires assembly by an adult because of the small parts. Care should be
taken in unpacking and assembling this item to keep the small parts away from children.
WARNING
Young children can be seriously injured or killed, if furniture tips over.
Don't use this item for a TV stand.
Use angle-braces or anchors to secure furniture to the wall.

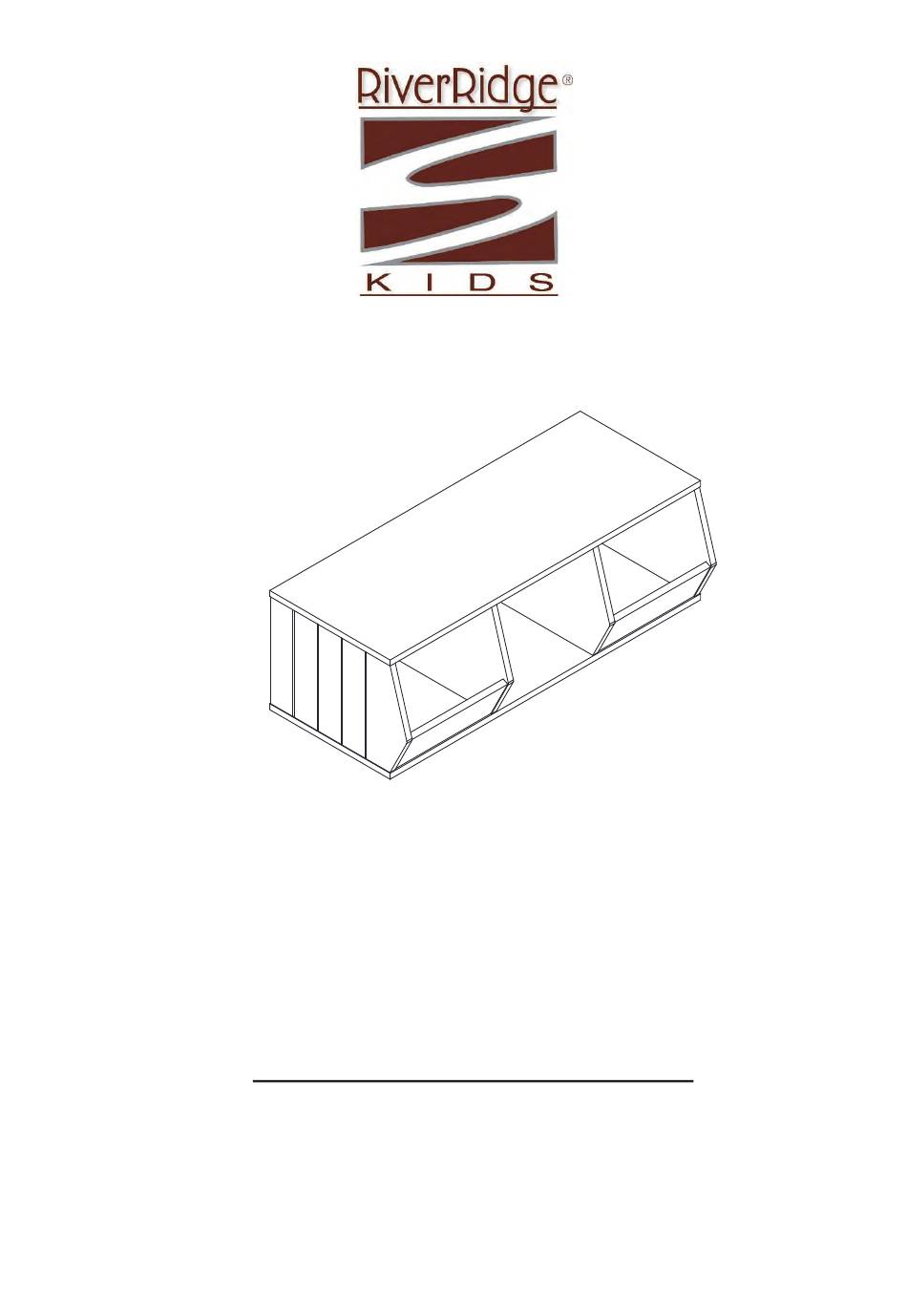

ASSEMBLY INSTRUCTIONS

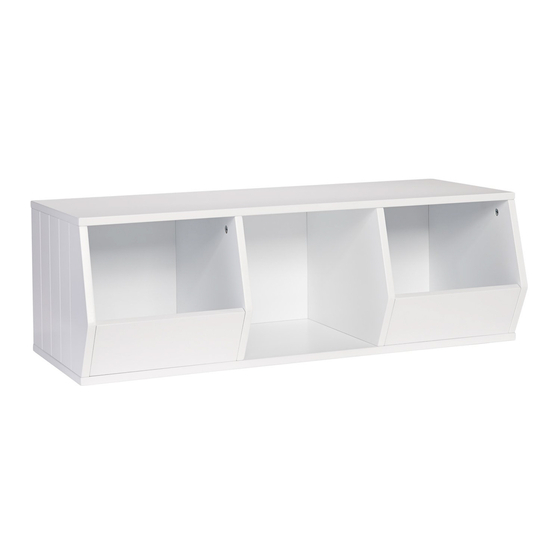

RiverRidge® Kids Storage Stacker
with 2 Veggie Bins/1 Cubby
ITEM #: 02-072 White
ITEM #: 02-073 Navy
ITEM #: 02-074 Turquoise
ADULT ASSEMBLY REQUIRED
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RiverRidge Kids Storage Stacker 02-072
Summary of Contents for RiverRidge Kids Storage Stacker 02-072
- Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® Kids Storage Stacker with 2 Veggie Bins/1 Cubby ITEM #: 02-072 White ITEM #: 02-073 Navy ITEM #: 02-074 Turquoise ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of the small parts. Care should be taken in unpacking and assembling this item to keep the small parts away from children.
- Page 2 Send requests for missing or damaged parts replacements by email to : customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com WARNING: EACH STORAGE STACKER WILL HOLD UP TO 25 POUNDS PER VEGGIE BIN/ CUBBY. DO NOT LOAD EACH VEGGIE BIN/CUBBY WITH MORE THAN 25 POUNDS. THIS MAY CAUSE DAMAGE TO THE STORAGE STACKER AND MAY CAUSE SERIOUS INJURY OR DEATH.
-
Page 3: Parts List
PARTS LIST PARTS DESCRIPTION WOOD DOWEL 24PCS 12PCS CAM BOLT 12PCS CAM LOCK 9PCS SCREW 4x35mm 2PCS CONNECTOR BRACKET 5PCS SCREW 3x12mm 2PCS ANCHOR BRACKET PLASTIC LOCK STRAP PLASTIC ANCHOR... - Page 4 PARTS DESCRIPTION RIGHT SIDE PANEL RIGHT DIVIDER FRONT BIN PANEL 2PCS LEFT SIDE PANEL LEFT DIVIDER BOTTOM BOARD TOP BOARD BACK BOARD TOOLS NEEDED FOR ASSEMBLY : FLAT & PHILIPS SCREWDRIVER(NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENED...
- Page 5 STEP 1 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of right side panel (1). 2. Screw 1 cam bolt (B) into the pre-threaded hole on the right side panel (1). STEP 2 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of right divider (2). 2.
- Page 6 STEP 3 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of front bin panel (3). 2. Repeat above step for another front bin panel (3). STEP 4 1. Attach the front bin panel (3) to right side panel (1) by inserting the wood dowels into the wood dowel holes on the right side panel (1) and inserting the cam bolt (B) into the cam lock holes on the front bin panel (3).
- Page 7 STEP 5 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of left side panel (4). 2. Screw 1 cam bolt (B) into the pre-threaded hole on the left side panel (4). STEP 6 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of left divider (5). 2.
- Page 8 STEP 7 1. Attach the front bin panel (3) to left side panel (4) by inserting the wood dowels into the wood dowel holes on the left side panel (4) and inserting the cam bolt (B) into the cam lock holes on the front bin panel (3).
- Page 9 STEP 9 1. Screw 8 cam bolts (B) into the pre-threaded holes on the top board (7). STEP 10 1. Slide the back board (8) into the grooves on the left side panel (4), right side panel (1) and bottom board (6).
- Page 10 STEP 11 1. Attach 1 anchor bracket (G) to the back side of top board (7) by inserting 1 screw (F) through the hole on anchor bracket (G) then tighten to the top board (7). STEP 12 WALL 1. Drill a hole on the wall where you want to place the storage stacker. 2.
- Page 11 STEP 13 WALL 1. If you have more than one storage stacker, you can use 2 connector brackets (E) and 4 screws (F) to connect them. 2. Then use the anti-tip hardware (D,G,H,I) to attach the storage stackers to the wall. 3.
- Page 12 Take appropriate action necessary to correct the hazard such as tightening of screws and taking any damaged parts away from children. Thank you for purchasing this RiverRidge® Kids Products item. We hope you enjoy it, and consider purchasing other RiverRidge® items.
